Mechanical time switches
- Daily time setting *
- Weekly time setting **
Type 12.01 - 1 Pole 16 A CO (SPDT)
•
35.8 mm width
Type 12.11 - 1 Pole 16 A NO (SPST-NO)
•
17.6 mm width
Type 12.31-0000 daily -
•
1 Pole 16 A CO (SPDT)
Type 12.31-0007 weekly -
•
1 Pole 16 A CO (SPDT)
Minimum time interval setting:
•
1h (12.31-0007)
30 min (12.01)
15 min (12.11 - 12.31-0000)
* Same program every day
**Different program possible for each of the
7 days of the week
For outline drawing see page 10
Contact specification
Contact configuration
Rated current/Maximum peak current
Rated voltage/Maximum switching voltage V AC
Rated load AC1
Rated load AC15 (230 V AC)
Nominal lamp rating: incandescent (230 V) W
compensated fluorescent (230 V) W
uncompensated fluorescent (230 V) W
halogen (230 V) W
Minimum switching load
Standard contact material
Supply specification
Nominal voltage (U
)
V AC (50/60 Hz)
N
Rated power AC/DC
VA (50 Hz)/W
Operating range
Electrical life at rated load in AC1
Type of time switch
Switching intervals /day
Minimum switching interval
Accuracy
Ambient temperature range
Protection category
Approvals (according to type)

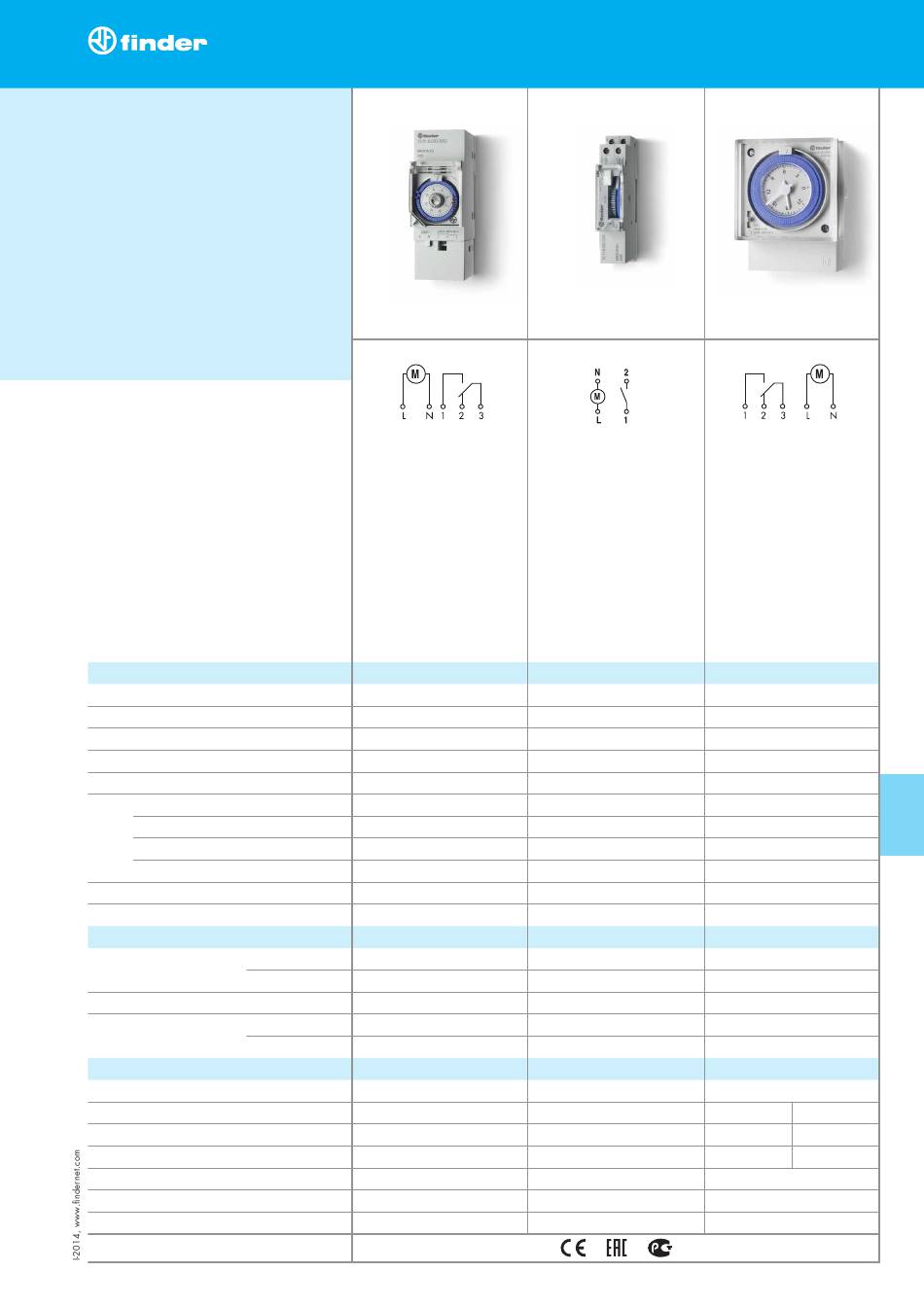

12 Series - Time switches 16 A
12.01
Mechanical daily time switch
•
1 CO (SPDT)
•
35 mm rail (EN 60715) mount
•
1 CO (SPDT)
A
16/—
250/—
VA
4,000
VA
750
2,000 (NO contact)
750 (NO contact)
1,000 (NO contact)
2,000 (NO contact)
mW (V/mA)
1,000 (10/10)
AgCdO
230
V DC
—
2/—
AC (50 Hz)
(0.85...1.1)U
DC
—
—
cycles
50 · 10
daily
48
min
30
s/day
1.5
°C
–5...+50
IP 20
12.11
Mechanical daily time switch
•
1 NO (SPST-NO)
•
35 mm rail (EN 60715) mount
•
1 NO (SPST-NO)
16/30
250/—
4,000
420
2,000
750
1,000
2,000
1,000 (10/10)
AgCdO
230
—
2/—
(0.85...1.1)U
N
—
—
3
50 · 10
daily
96
15
1.5
–5...+50
IP 20
12.31
Mechanical daily or weekly
•
1 CO (SPDT)
•
Front panel mounting
•
1 CO (SPDT)
16/—
250/—
4,000
420
2,000
750
1,000
2,000
1,000 (10/10)
AgCdO
120 - 230
—
2/—
(0.85...1.1)U
N
—
3
50 · 10
daily
96
24 (168/week)
15
1.5
–10...+50
IP 20
12
SERIES
I
N
3
weekly
60
1
