Summary of Contents for Lectrosonics RATPAC
- Page 1 INSTRUCTION MANUAL RATPAC Connector Kit Build a right angle TA5 or TA3 connector. Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...

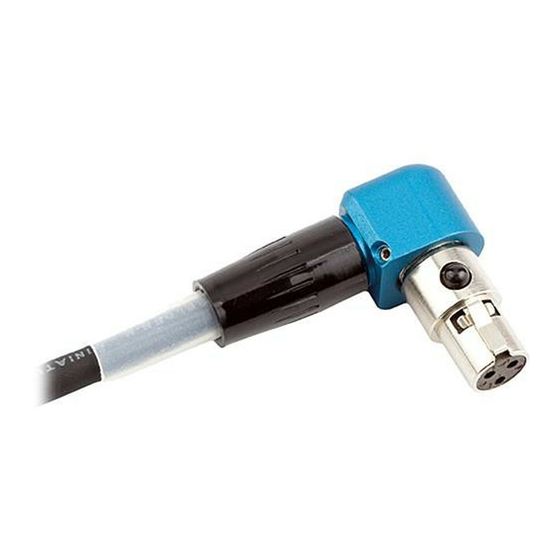

- Page 2 MODEL# Parts Description and Details The RATPAC (Right Angle T connector PACkage) is a A standard TA connector sleeve is used with either a versatile kit for building a right angle connector for use 3-pin or 5-pin insert and a modified cable clamp. The with the SR receiver or Lectrosonics transmitters.
- Page 3 Shield For microphones to be Slide the cable clamp into the hous- 180˚ used with Lectrosonics transmitters, refer to the Servo ing, making sure the tab seats in the Bias Mic Wiring document. keyway on the housing. Gently push http://www.lectrosonics.com/service/ServoBiasWiring.pdf...
- Page 4 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
