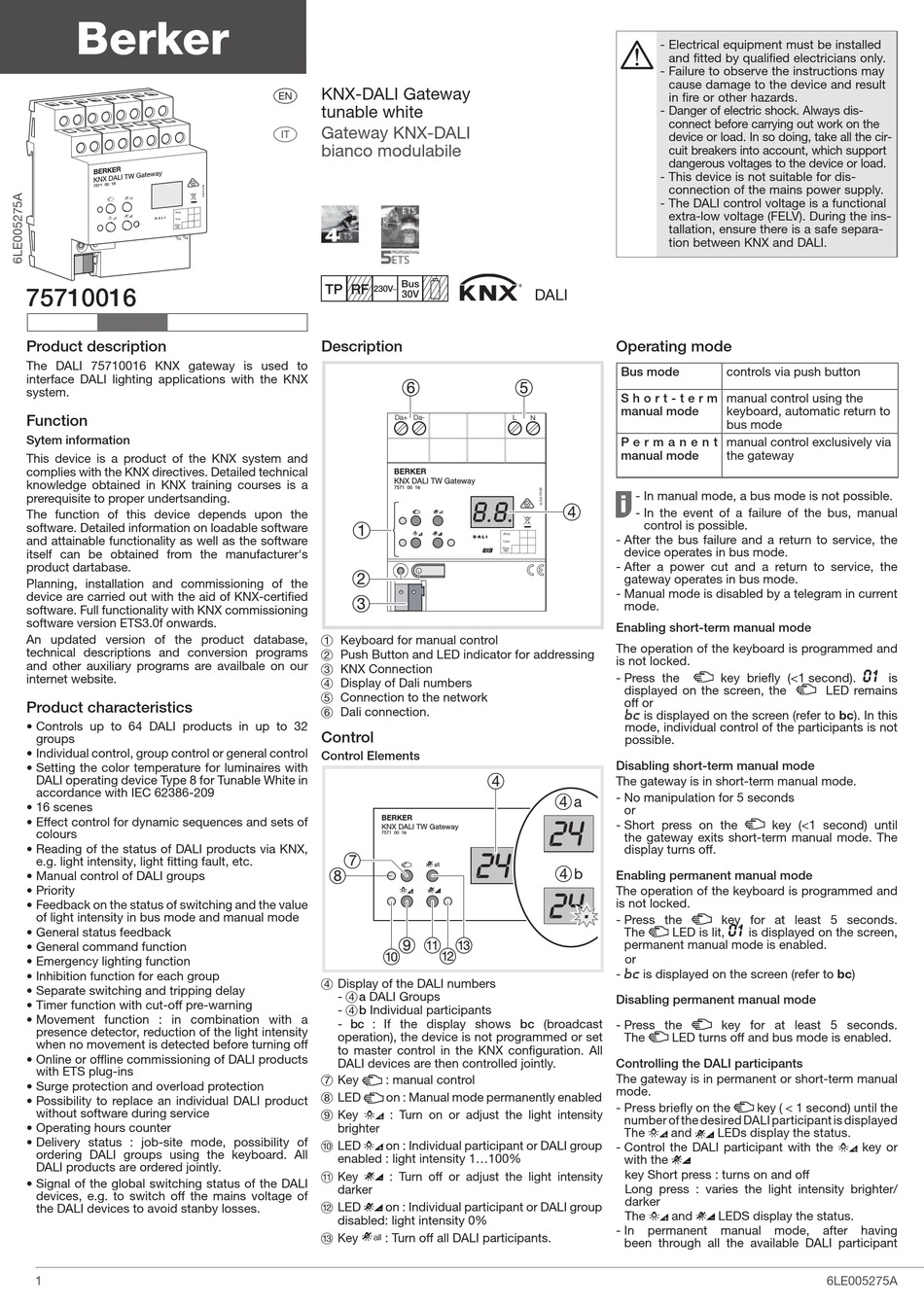

Berker 75710016 Quick Manual

BE R K ER
G at ew ay
KN X DA LI TW
757 1 00 16
all
Area
Line
Ptcp .
Nb.
75710016

Product description

The DALI 75710016 KNX gateway is used to
interface DALI lighting applications with the KNX
system.

Function

Sytem information
This device is a product of the KNX system and
complies with the KNX directives. Detailed technical
knowledge obtained in KNX training courses is a
prerequisite to proper undertsanding.
The function of this device depends upon the
software. Detailed information on loadable software
and attainable functionality as well as the software
itself can be obtained from the manufacturer's
product dartabase.
Planning, installation and commissioning of the
device are carried out with the aid of KNX-certified
software. Full functionality with KNX commissioning
software version ETS3.0f onwards.
An updated version of the product database,
technical descriptions and conversion programs
and other auxiliary programs are availbale on our
internet website.
Product characteristics
• Controls up to 64 DALI products in up to 32
groups
• Individual control, group control or general control
• Setting the color temperature for luminaires with
DALI operating device Type 8 for Tunable White in
accordance with IEC 62386-209
• 16 scenes
• Effect control for dynamic sequences and sets of
colours
• Reading of the status of DALI products via KNX,
e.g. light intensity, light fitting fault, etc.
• Manual control of DALI groups
• Priority
• Feedback on the status of switching and the value
of light intensity in bus mode and manual mode
• General status feedback
• General command function
• Emergency lighting function
• Inhibition function for each group
• Separate switching and tripping delay
• Timer function with cut-off pre-warning
• Movement function : in combination with a
presence detector, reduction of the light intensity
when no movement is detected before turning off
• Online or offline commissioning of DALI products
with ETS plug-ins
• Surge protection and overload protection
• Possibility to replace an individual DALI product
without software during service
• Operating hours counter
• Delivery status : job-site mode, possibility of
ordering DALI groups using the keyboard. All
DALI products are ordered jointly.
• Signal of the global switching status of the DALI
devices, e.g. to switch off the mains voltage of
the DALI devices to avoid stanby losses.
1
KNX-DALI Gateway
z
tunable white
Gateway KNX-DALI
y
bianco modulabile
B n ? . :
Description
Da+ Da-
BERKER
KNX DALI TW Gateway
7571 00 16
all
1 Keyboard for manual control
2 Push Button and LED indicator for addressing
3 KNX Connection
4 Display of Dali numbers
5 Connection to the network
6 Dali connection.

Control

Control Elements

BERKER
KNX DALI TW Gateway
7571 00 16
all
4 Display of the DALI numbers
- 4a DALI Groups
- 4b Individual participants
- bc : If the display shows bc (broadcast
operation), the device is not programmed or set
to master control in the KNX configuration. All
DALI devices are then controlled jointly.
7 Key : manual control
8 LED on : Manual mode permanently enabled
9 Key : Turn on or adjust the light intensity
brighter
A LED on : Individual participant or DALI group
enabled : light intensity 1...100%
Z Key : Turn off or adjust the light intensity
darker
E LED on : Individual participant or DALI group
disabled: light intensity 0%
R Key : Turn off all DALI participants.
all
- Electrical equipment must be installed
and fitted by qualified electricians only.
- Failure to observe the instructions may
cause damage to the device and result
in fire or other hazards.
- Danger of electric shock. Always dis-
connect before carrying out work on the
device or load. In so doing, take all the cir-
cuit breakers into account, which support
dangerous voltages to the device or load.
- This device is not suitable for dis-
connection of the mains power supply.
- The DALI control voltage is a functional
extra-low voltage (FELV). During the ins-
tallation, ensure there is a safe separa-
tion between KNX and DALI.
DALI

Operating mode

Bus mode
S h o r t - t e r m
manual mode
L
N
P e r m a n e n t
manual mode
H
- In manual mode, a bus mode is not possible.
- In the event of a failure of the bus, manual
control is possible.
Area
- After the bus failure and a return to service, the
Line
device operates in bus mode.
Ptcp.
Nb.
- After a power cut and a return to service, the
gateway operates in bus mode.
- Manual mode is disabled by a telegram in current
mode.

Enabling short-term manual mode

The operation of the keyboard is programmed and
is not locked.
- Press the
displayed on the screen, the
off or
is displayed on the screen (refer to bc). In this
mode, individual control of the participants is not
possible.

Disabling short-term manual mode

The gateway is in short-term manual mode.
- No manipulation for 5 seconds
or
- Short press on the
the gateway exits short-term manual mode. The
display turns off.

Enabling permanent manual mode

The operation of the keyboard is programmed and
is not locked.
- Press the
The LED is lit,
permanent manual mode is enabled.
or
- is displayed on the screen (refer to bc)

Disabling permanent manual mode

- Press the
The LED turns off and bus mode is enabled.

Controlling the DALI participants

The gateway is in permanent or short-term manual
mode.
- Press briefly on the
number of the desired DALI participant is displayed
The and
- Control the DALI participant with the
with the
key Short press : turns on and off
Long press : varies the light intensity brighter/
darker
The and
- In permanent
been through all the available DALI participant
controls via push button
manual control using the
keyboard, automatic return to
bus mode
manual control exclusively via
the gateway
01
key briefly (<1 second). is
LED remains
key (<1 second) until
key for at least 5 seconds.
01
is displayed on the screen,
key for at least 5 seconds.
key ( < 1 second) until the
LEDs display the status.
key or
LEDS display the status.
manual mode, after having
6LE005275A
