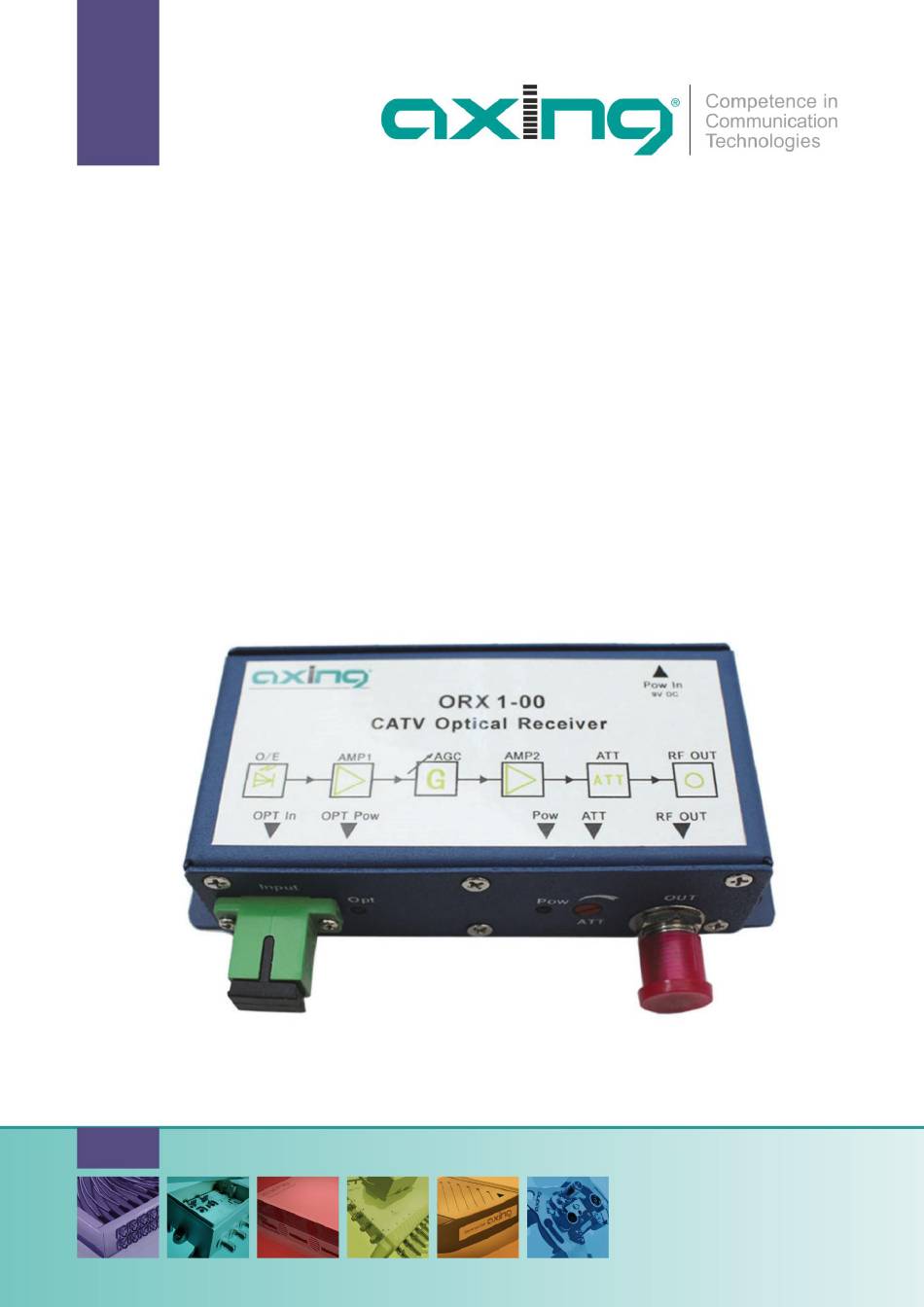

- Page 1 ORX 1-00 CATV Optical Receiver Operation instructions...
-
Page 2: Table Of Contents
Operation Instructions | ORX 1-00 | CATV Optical Receiver Table of contents Description ................................4 1.1. Delivery ................................4 1.2. Features ...............................4 1.3. Applications ..............................4 1.4. Block Diagram .............................4 Installation ................................6 Troubleshooting ..............................8 Specification.................................9 4.1.1. Optical Characteristics .........................9 4.1.2. RF Characteristics ..........................9... - Page 3 Safety instructions ∂ ORX 1-00 is indoor design without waterproof function. If it works outdoor that should be put into a waterproof and moisture-proof cabinet. ∂ Installation MUST be operated by trained or professional person. Direct eye exposure to laser beam may cause physical damage...
-
Page 4: Description

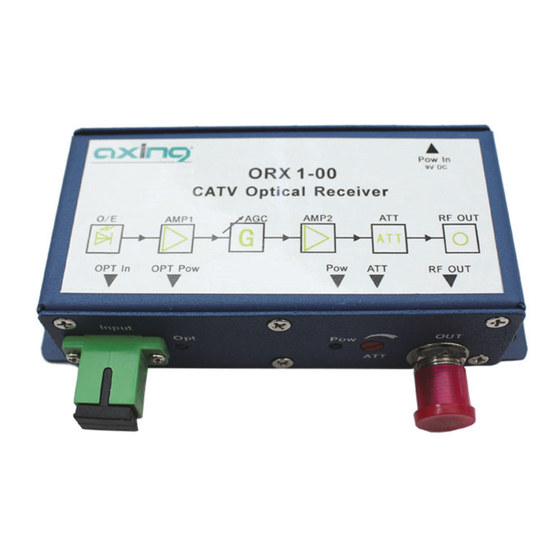

Operation Instructions | ORX 1-00 | CATV Optical Receiver 1. Description ORX 1-00 CATV optical receiver, compacted in size, designed for FTTH (Fiber To The Home) networks. ORX 1- 00 works under 1100~1650nm. ORX 1-00 is the new type micro optical receiver with LED optical power indicator. - Page 5 † ƒ … ‚ „ † • … Outlines Drawing (dimensions are in mm) Description Optical Input Port: optical input connecter insert here Optical Power Indicator: Green (Normal); Red (Strong); No Light (Weak/No power) Power ON/OFF Indicator: 0~10dB Adjustable Attenuator: Counter-clockwise increases value RF Output Port: RF signal output to TV Power Jacket: 9VDC or 12VDC 2017-10-24 | Technical improvements, changes in design, printing- and other errors expected.
-
Page 6: Installation
Operation Instructions | ORX 1-00 | CATV Optical Receiver 2. Installation Caution ∂ 1.ORX 1-00 is indoor design without waterproof function. If it works outdoor that should be put into a waterproof and moisture-proof cabinet ∂ 2. Power supply is required as 100-240VAC with lightning protection ∂... - Page 7 Clean the fiber cable connector and ends with cleaning tools Do not scratch the fiber connector or ends. Wipe the surface with alcohol with a dust-free cloth. Next, wipe it with a dry dust free cloth, and then quickly wave the fiber end back and forth in the air. Do not blow air onto the fiber to dry it. Direct eye exposure to laser beam may cause physical damage Well connect fiber optical connector to optical receiver’s optical input port Insert here...
-
Page 8: Troubleshooting
Operation Instructions | ORX 1-00 | CATV Optical Receiver 3. Troubleshooting Status Possible Method to slove Power supply LED indicator is OFF Check the power cord plug is well connected Check the power jack on receiver is firmed well Input optical signal is poor... -
Page 9: Specification
4. Specification 4.1.1. Optical Characteristics Parameter Unit Value Wavelength 1100-1650 Input Level Range (PIN) -12~ -1 AGC Range -10~ -3 Optical Return Loss ≥45 Connector Type FC/APC or SC/APC 4.1.2. RF Characteristics Parameter Unit Value Frequency Range 47~1002 Gain Flatness ±0.75 Output Level dBµV... - Page 10 Operation Instructions | ORX 1-00 | CATV Optical Receiver 2015-11-29 | © AXING AG Swizzerland | Technical data are subject to change, errors and omissions excepted...
