obstructions and coverings directly in front of the radar module, and it should
cover the human movement area as far as possible.
In this installation mode, the maximum distance for human motion detection
is greater than 10 meters; the maximum distance for human stationary
detection is approximately equal to 5 meters; generally the effective action
distance is 3 to 4 meters.

Inclined installation

Measure the movement of people in the room. It is mainly suitable for hotels,
halls, courtyards and other environments.
雷达
10°-30°
L

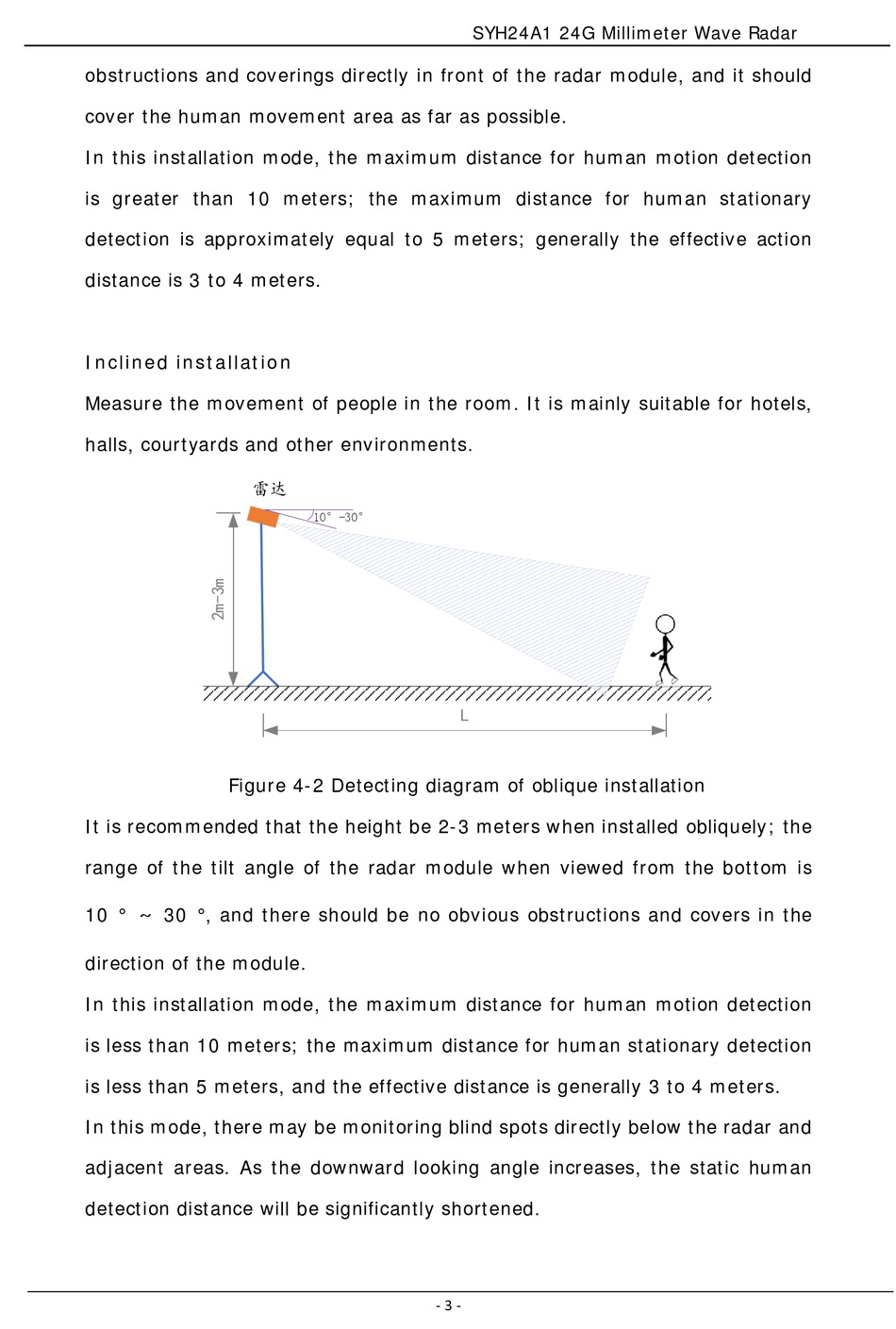

Figure 4-2 Detecting diagram of oblique installation
It is recommended that the height be 2-3 meters when installed obliquely; the
range of the tilt angle of the radar module when viewed from the bottom is
10 ° ～ 30 °, and there should be no obvious obstructions and covers in the
direction of the module.
In this installation mode, the maximum distance for human motion detection
is less than 10 meters; the maximum distance for human stationary detection
is less than 5 meters, and the effective distance is generally 3 to 4 meters.
In this mode, there may be monitoring blind spots directly below the radar and
adjacent areas. As the downward looking angle increases, the static human
detection distance will be significantly shortened.
