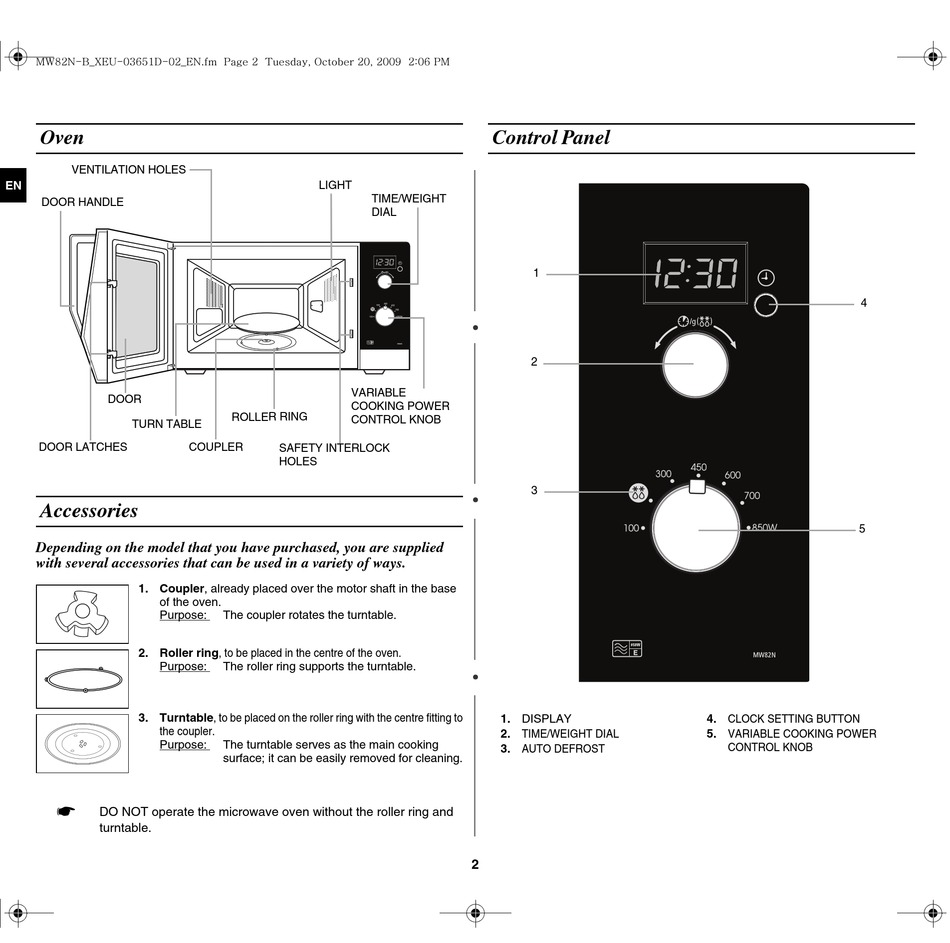

Oven
VENTILATION HOLES
EN
DOOR HANDLE
DOOR
TURN TABLE
DOOR LATCHES

Accessories

Depending on the model that you have purchased, you are supplied
with several accessories that can be used in a variety of ways.
1. Coupler, already placed over the motor shaft in the base
of the oven.
Purpose:
2. Roller ring, to be placed in the centre of the oven.
Purpose:
3. Turntable, to be placed on the roller ring with the centre fitting to
the coupler.
Purpose:
DO NOT operate the microwave oven without the roller ring and
turntable.
LIGHT
VARIABLE
COOKING POWER
CONTROL KNOB
COUPLER
SAFETY INTERLOCK
HOLES
The coupler rotates the turntable.
The roller ring supports the turntable.
The turntable serves as the main cooking
surface; it can be easily removed for cleaning.

Control Panel

TIME/WEIGHT
DIAL
1
2
3
1. DISPLAY
2. TIME/WEIGHT DIAL
3. AUTO DEFROST
2
4
5
4. CLOCK SETTING BUTTON
5. VARIABLE COOKING POWER
CONTROL KNOB
