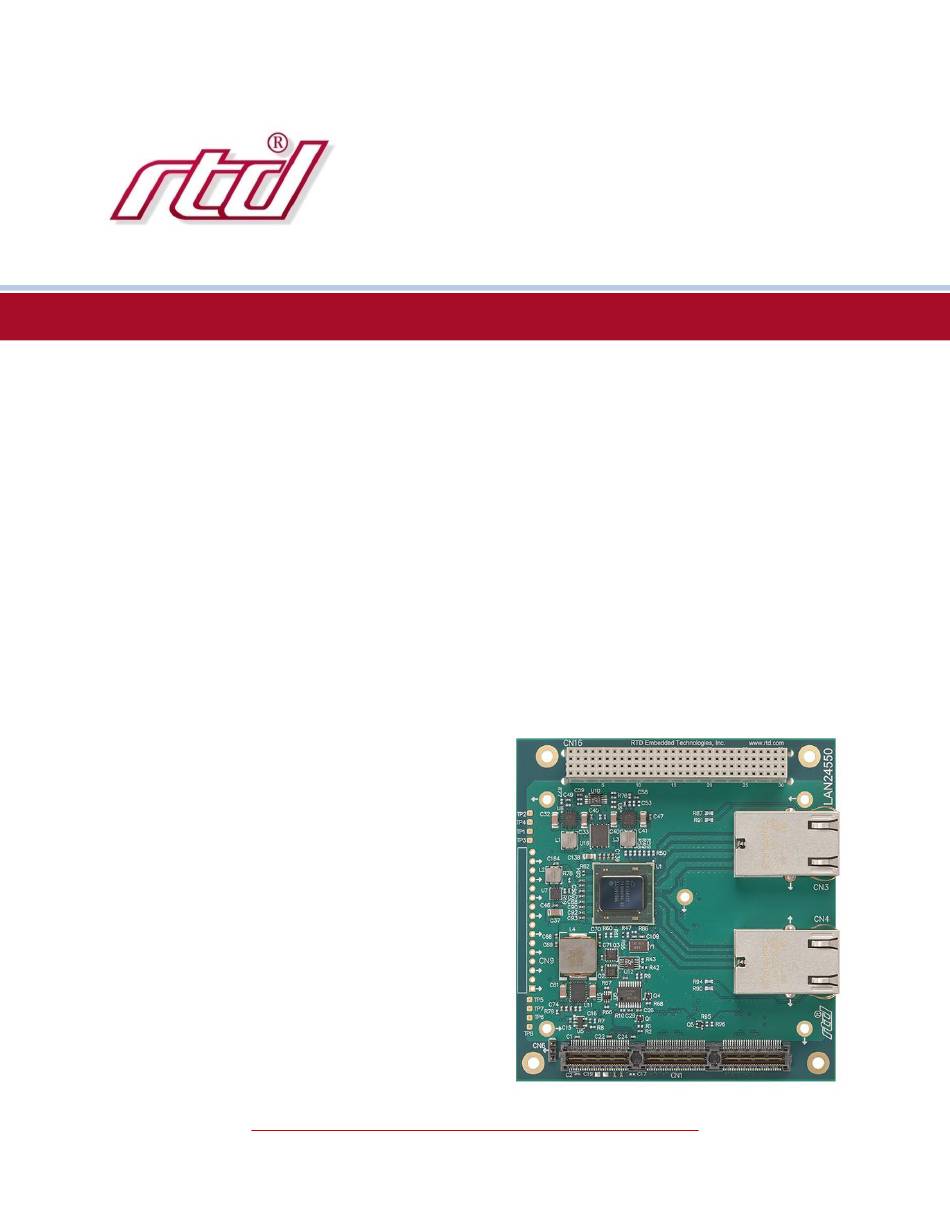

- Page 1 LAN24550/LAN34550 PCI/104-Express Dual 10Gbit/s Twisted Pair Ethernet Controller User’s Manual BDM-610020156 Rev. A RTD Embedded Technologies, Inc. AS9100 and ISO 9001 Certified...
- Page 2 RTD Embedded Technologies, Inc. 103 Innovation Boulevard State College, PA 16803 USA Telephone: 814-234-8087 Fax: 814-234-5218 www.rtd.com sales@rtd.com techsupport@rtd.com...
- Page 3 Failure to follow the instructions found in this manual may result in damage to the product described in this manual, or other components of the system. The procedure set forth in this manual shall only be performed by persons qualified to service electronic equipment. Contents and specifications within this manual are given without warranty, and are subject to change without notice. RTD Embedded Technologies, Inc. shall not be liable for errors or omissions in this manual, or for any loss, damage, or injury in connection with the use of this manual.
-
Page 4: Table Of Contents
Twisted Pair Connection ................................15 5.2.1 Intel X550 Ethernet Controller 5.2.2 Twisted Pair Interface Driver Support ................................... 16 Troubleshooting Additional Information PC/104 Specifications ................................18 PCI and PCI Express Specification ............................18 Limited Warranty | www.rtd.com LAN24550/ LAN34550 User’s Manual RTD Embedded Technologies, Inc. - Page 5 Figure 4: IDAN Dimensions ....................................12 Figure 5: IDAN Front Panel Connectors ................................. 13 Figure 6: Example IDAN System .................................... 14 Figure 7: LAN24550/345550 Block Diagram ................................15 Table of Tables Table 1: Ordering Options ......................................6 Table 2: Operating Conditions ....................................8 Table 3: Electrical Characteristics ....................................
-
Page 6: Introduction
The Intelligent Data Acquisition Node (IDAN™) building block can be used in just about any combination with other IDAN building blocks to create a simple but rugged 104™ stack. This module can also be incorporated in a custom-built RTD HiDAN™ or HiDANplus High Reliability Intelligent Data Acquisition Node. -
Page 7: Contact Information
If you are having problems with you system, please try the steps in the Troubleshooting section of this manual. For help with this product, or any other product made by RTD, you can contact RTD Embedded Technologies technical support via the... -
Page 8: Specifications
Both ports operating at 10Gb/s 1.680 1.685 1.69 PCIe/104 Bus Differential Output Voltage DC Differential TX Impedance Ω Differential Input Voltage 0.175 DC Differential RX Impedance Ω Electrical Idle Detect Threshold | www.rtd.com LAN24550/ LAN34550 User’s Manual RTD Embedded Technologies, Inc. -
Page 9: Board Connection

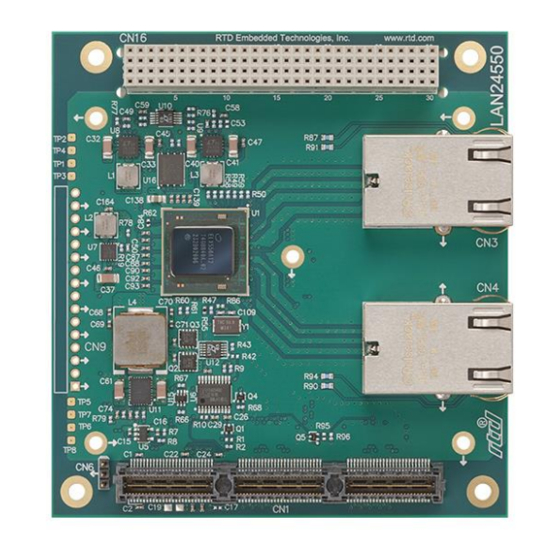

Physical Characteristics • Weight: Approximately 159 g (0.35 lbs.) • Dimensions: 90.17 mm L x 95.89 mm W (3.550 in L x 3.775 in W) Figure 1: Board Dimensions | www.rtd.com LAN24550/ LAN34550 User’s Manual RTD Embedded Technologies, Inc. -
Page 10: Connectors And Jumpers
CN1(Top) & CN2(Bottom): PCIe Connector The PCIe connector is the connection to the system CPU. The position and pin assignments are compliant with the PCI/104-Express Specification. (See PC/104 Specifications on page 18). The LAN24550/34550 is a Type 2 PCIe/104 device. | www.rtd.com LAN24550/ LAN34550 User’s Manual... -
Page 11: Steps For Installing
10. Attach any necessary cables to the PC/104 stack. 11. Re-connect the power cord and apply power to the stack. 12. Boot the system and verify that all of the hardware is working properly. Figure 3: Example 104™Stack | www.rtd.com LAN24550/ LAN34550 User’s Manual RTD Embedded Technologies, Inc. -
Page 12: Idan Connections
Weight: Approximately 0.5 Kg (1.10 lbs.) • Dimensions: 152.0 mm L x 130.0 mm W x 17.0mm H (5.98 in L x 5.12 in W x 0.67 in H) Figure 4: IDAN Dimensions | www.rtd.com LAN24550/ LAN34550 User’s Manual RTD Embedded Technologies, Inc. -
Page 13: Connectors
4.3.1 I/O C XTERNAL ONNECTORS The Diagram below shows the connector locations for the transceivers of the LAN24550 as they are brought out on the front panel of the IDAN- LAN34550. Figure 5: IDAN Front Panel Connectors CN3: RJ45 Connector... -
Page 14: Steps For Installing
11. Re-connect the power cord and apply power to the stack. 12. Boot the system and verify that all of the hardware is working properly. Figure 6: Example IDAN System | www.rtd.com LAN24550/ LAN34550 User’s Manual RTD Embedded Technologies, Inc. -
Page 15: Functional Description
ONTROLLER The LAN24550/34550 features Intel’s X550-AT2 10 Gigabit Ethernet controller used to interface with twisted pair cable Ethernet connections. The X550 is a converged network adapter that not only supports LAN traffic, but also FCoE and iSCSI. The integrated MAC and PHY drives down power consumption and cost. -
Page 16: Driver Support
For Windows, the Ethernet controller is supported by a driver provided by Intel. A copy of this driver is provided on the companion CD that is shipped with the board and may also be downloaded from the RTD web site (www.rtd.com) or the Intel web site (www.intel.com). It is recommended that you frequently check the RTD web site for updated documentation and drivers. -
Page 17: Troubleshooting
If problems persist, or you have questions about configuring this product, contact RTD Embedded Technologies via the following methods: Phone: +1-814-234-8087 E-Mail: techsupport@rtd.com Be sure to check the RTD web site (http://www.rtd.com) frequently for product updates, including newer versions of the board manual and application software. | www.rtd.com LAN24550/ LAN34550 User’s Manual RTD Embedded Technologies, Inc. -
Page 18: Additional Information
A copy of the latest PC/104 specifications can be found on the webpage for the PC/104 Embedded Consortium: www.pc104.org PCI and PCI Express Specification A copy of the latest PCI and PCI Express specifications can be found on the webpage for the PCI Special Interest Group: www.pcisig.com | www.rtd.com LAN24550/ LAN34550 User’s Manual RTD Embedded Technologies, Inc. -
Page 19: Limited Warranty
During the one year warranty period, RTD Embedded Technologies will repair or replace, at its option, any defective products or parts at no additional charge, provided that the product is returned, shipping prepaid, to RTD Embedded Technologies. All replaced parts and products become the property of RTD Embedded Technologies. - Page 20 RTD Embedded Technologies, Inc. 103 Innovation Boulevard State College, PA 16803 USA Telephone: 814-234-8087 Fax: 814-234-5218 www.rtd.com sales@rtd.com techsupport@rtd.com Copyright 2020 by RTD Embedded Technologies, Inc. All rights reserved.
