Goldanalytix GOLDSCREENCARD Manual

Coin testing device for precious metal coins
Hide thumbs Also See for GOLDSCREENCARD:
Table of Contents

Advertisement

Quick Links

Download this manual
Goldanalytix
Coin testing device for precious metal coins

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOLDSCREENCARD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Goldanalytix GOLDSCREENCARD

Summary of Contents for Goldanalytix GOLDSCREENCARD

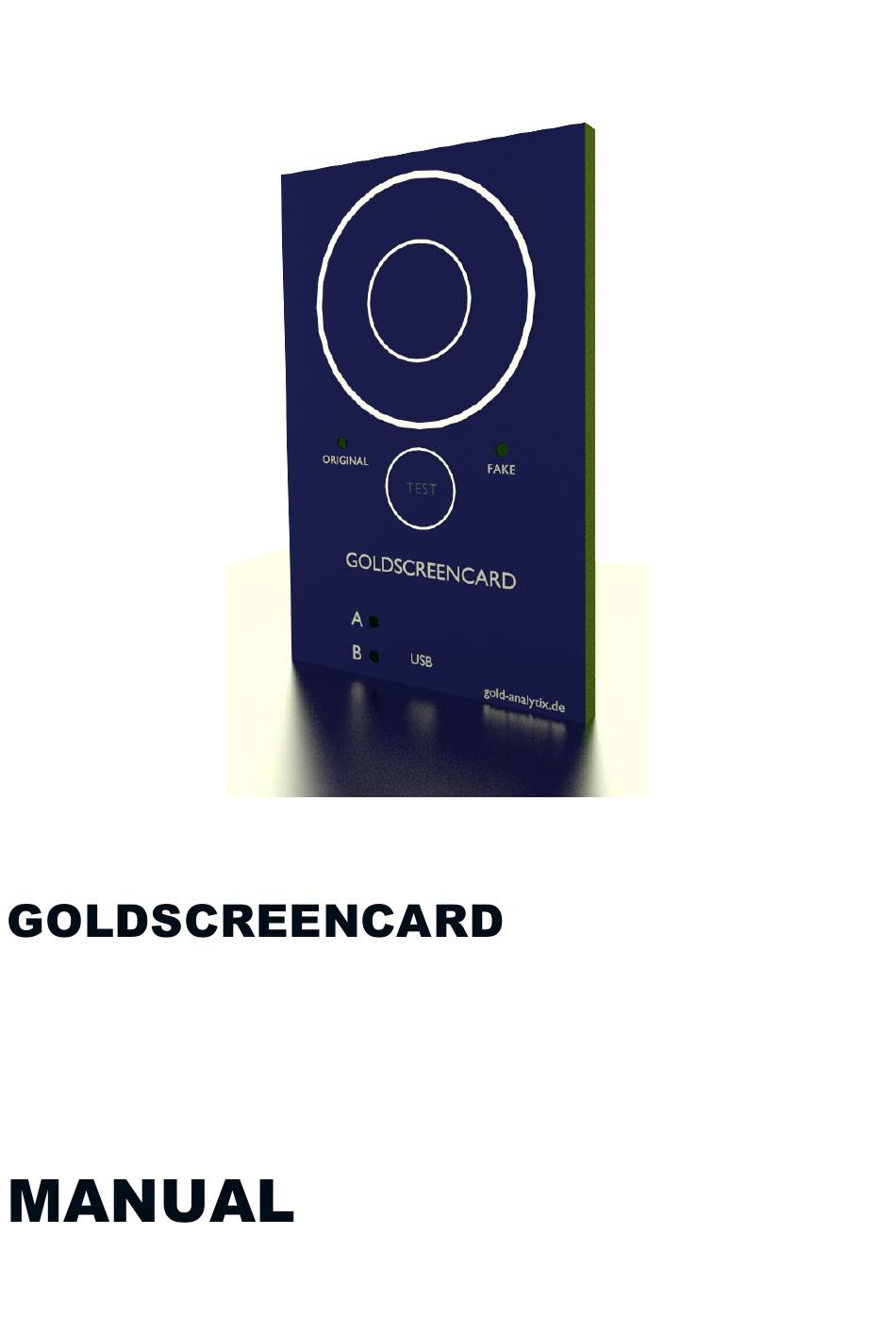

  • Page 1 Goldanalytix Coin testing device for precious metal coins...

  • Page 2: Table Of Contents

    9. Performing the measurement S.12 10. Interpretation of the measurement results S.14 11. Performing the measurement on the way S.18 12. Creating an own value library S.20 13. Updating the value library S.20 14. Limitations of the procedure S.21 2 | Instructions Goldscreencard...
  • Page 3 This allows robust, reliable extremely compact assembly. Please read the included instruction manual thoroughly before your first use of the GoldScreenCard. We hope you'll enjoy using the GoldScreenCard coin testing device. Instructions Goldscreencard | 3...

  • Page 4: Scope Of Supply

    2. Scope of supply The GoldScreenCard comes with the following components in a handy carry case: Scope of supply for the Goldscreencard ­ Goldscreencard coin testing device ­ USB­connection cable ­ Goldscreen­Software CD­Rom ­ Accumulator pack ­ Manual 3. Measurement principle The GoldScreenCard uses the characteristic electric conductivity of metals as its measurement principle.

  • Page 5: Measuring Environment And Safety Information

    1. ) Only use the included micro­USB adaptor cable. Low quality products can cause false measurements or the destruction of the GoldScreenCard. 2. ) Make sure that the GoldScreencard isn't put on a metallic surface when measuring and calibrating and don't put metallix objects near the GoldScreenCard because this can cause measurement inaccuracies.

  • Page 6: Installation Of The Goldscreen Software

    3. ) Don't use the GoldScreenCard near explosive gases, vapours, dust or in wet environments. 4. ) Use the device at room temperature and not directly near heat sources (e.g. also fan outputs of notebooks, etc.). Make sure that the device as well as the coin on top are in the same temperature range (ideally room temperature).
  • Page 7 For standard installation, confirm the dialogue boxes. The programme will be installed as usual under the Windows programme file. The installation of the fitting driver (CP210x USB to UART Bridge) subsequently starts automatically. Software installation Instructions Goldscreencard | 7...
  • Page 8 (as an icon), as well as in the start menu by: [Start]\Programme\Goldanalytix_SW The programme starts automatically after the installation. If the plugged in GoldScreenCard isn't yet detected, cloe the software and start it again. Minimum system requirements: ­ Windows XP, Vista, 7,8 (at the moment, there is no support for other OS) ­...

  • Page 9: Introduction In The Software And Operation Elements

    7. Introduction in the software and operation elements After starting software connecting GoldScreenCard to the computer, the software interface appears as shown below, with the status message "Device connected" (2). The following table gives an overview of the most important display and operation elements. Description Navigation bar for additional functions, see tables below Status display;...
  • Page 10 Open the own library created by the user. User­Bib Function for adding data to the User­library. The coin to be measured is put on the GoldScreenCard and the Hinzufügen User­Bib button "Add Value" has to be pushed. So is the button Wert "Test"...

  • Page 11: Value Library

    Normal gradation of the measurement diagram Zoom Standard Macro representation of the measurement diagram Zoom Out Hilfe Opens the GoldScreenCard manual Handbuch Opens the Goldanalytix website 8. Value library The software allows the user to either use the GA­Bib saved in the software, or to create an own library (User­...

  • Page 12: Performing The Measurement

    9. Performing the measurement Connect the GoldScreenCard with the USB cable to your computer and start the GoldScreen­Software (you find help installation on page 6 pp. of this instruction manual). After a few seconds, a successful connection will be displayed in the status display.
  • Page 13 "interpretation of the measurement results" in mind, as other factors may sometimes influence the results (e.g. bent coins). The measurement result can be saved as an image with Datei > Speichern... als. Instructions Goldscreencard | 13...

  • Page 14: Interpretation Of The Measurement Results

    10. Interpretation of the measurement results The GoldScreenCard uses the electric conductivity of the testing object as a physical measurement size. The testing sample's geometry plays a decisive role because the air gaps between the sensor­ and coin surface caused by the striking contribute significantly to the measurement result.
  • Page 15 Because of the better conductivity compared to gold alloys, tungsten coins are situated over the value range of alloyed gold coins, like e.g. Krügerrand coins. Instructions Goldscreencard | 15...
  • Page 16 When creating your own User­Bib, you can store the reference value with the plastic film. So you can also compare the testing object, under the condiction that they have the same casing. 16 | Instructions Goldscreencard...
  • Page 17 In order to have a sure measurement result, it is necessary to compare the tested coin with a reference value from the value library. If the coin isn't strongly worn out, the result "fake" is unlikely. Instructions Goldscreencard | 17...

  • Page 18: Performing The Measurement On The Way

    Is it possible to use the GoldScreenCard for ingots or jewellery? In general, it is also possible to test small ingots with the GoldScreenCard, but it is difficult to have reference values, due to the many different geometries of the different ingot producers.
  • Page 19 LED (original or fake). If you want to measure the second coin, i.e. "Eingabe Messwert B", hold down the "test" button for about 8 s until the "B"­LED glows orange and the "A"­LED goes out. Instructions Goldscreencard | 19...

  • Page 20: Creating An Own Value Library

    Goldanalytix value library, in your own user library just by simply adding them. When clicking on Bibliothek > Wert hinzufügen, a dialogue window will open to tell you to hold down the "test"...

  • Page 21: Limitations Of The Procedure

    Such forgings are often only of theoretical nature and are practically impossible to create. In case of the GoldScreenCard, an additional determination of the coin's correct dimensions are essential. As the electrical conductivity is primarily used as a physical measured...
  • Page 22 Further claims for damages are always limited to the purchase price of the testing device. Goldanalytix guarantees for the first 90 days that the software works in general in conformity with the respective function descriptions and that the software has been saved on faultless data carriers.
  • Page 23 However, if Goldanalytix detects that the defect is due to neglect, improper use, soiling, modification on the device, an accident or abnormal working conditions, including errors by excess voltage caused outside the bearing capacity specified for the product, Goldanalytix will send the buyer a repair cost estimate and won't start repairing until having the buyer's approval.
  • Page 24 Goldanalytix a registered trademark MARAWE GmbH & Co. KG Donaustaufer Strasse 378 Gebäude 64 93055 Regensburg Deutschland Tel:(0049)941/46521716 Email: info@gold­analytix.de Web: www.gold­analytix.de...
