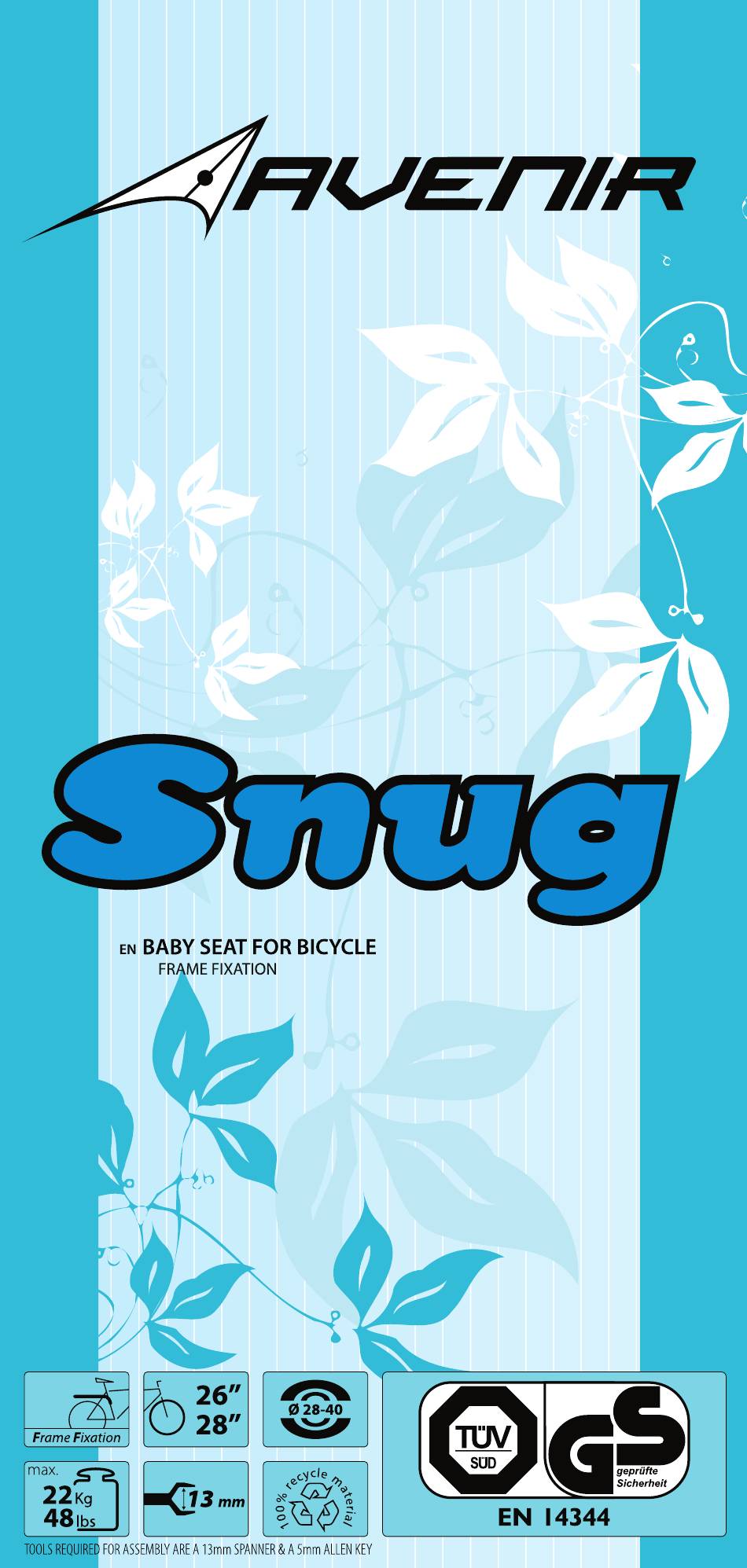

Summary of Contents for Avenir Snug
- Page 2 EN - INDEX Main seat Safety belt Safety lock Belt adjuster Safety belt for bicycle frame Foot rest strap Foot rest Gravity centre Cushion Metallic bracket Fixation block Screws Plastic fixation block Block button Metallic fixation plate Metallic fixation Kit Metallic fixation plate M8x25 screw M8 washer...
-
Page 3: Technical Characteristics
Avenir - Snug Congratulations for purchasing an Avenir product. We created this baby seat with your child’s comfort and security in mind so that your rides become great moments of pleasure and joy. This seat is built to carry children with a maximum weight of 22kg / 48,5 lbs or up to 7 years old. - Page 4 Remove the fixation block (I) by cutting the two straps. Hold the metallic bracket (H) the same as in the picture and pass it through the opening in the baby seat. Remove the metallic bracket (H) by cutting the strap, and remove it from the In order to adjust the baby seat onto the bicycle, put the metallic rod into one fixation clips.
- Page 5 Insert the metallic fixation plate (J1) on the grooves of the baby seat, and close Put the fixation block (I2) on the front of the bicycle frames seat tube. Screw the it as indicated in the picture. fixation block (I2) onto the metallic fixation plate (I4) in such a way it may be adjusted later.
- Page 6 The seat has a gravity centre (F) (engraved on the seat) which cannot be more To put the child in the seat, open the lock (B1) of the safety belt (B) and press than 10cm away from the axle of the rear wheel. In case the gravity centre is at a the three buttons of the lock (B1) as indicated.
-
Page 7: Maintenance
MAINTENANCE To keep the baby seat in good working conditions and to prevent accidents we recommend the following: - Check regularly the fixation system of the seat to the bicycle in order to make sure it is in perfect condition. - Check all the components to see if they work properly.
