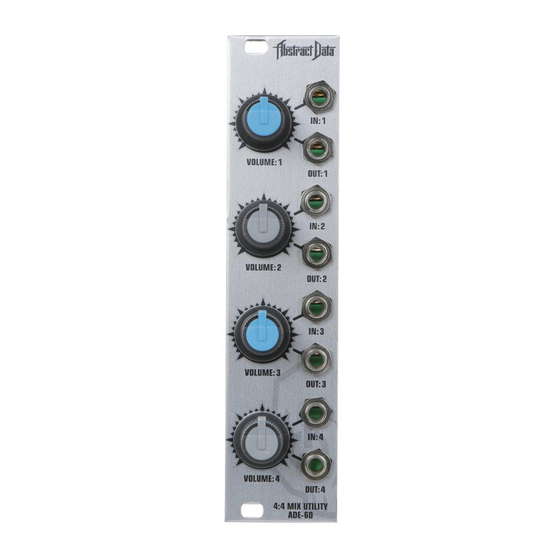

ADE-60 4:4 MIX UTILITY
Cascading, 4-Channel, Mix & CV Utility with user-configurable
options for 2x Gain, Attenuversion, Biasing & CV.
© 2017 Abstract Data Ltd.
http://www.abstractdata.biz
info@abstractdata.biz
Version 1.0 October 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADE-60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Abstract Data ADE-60

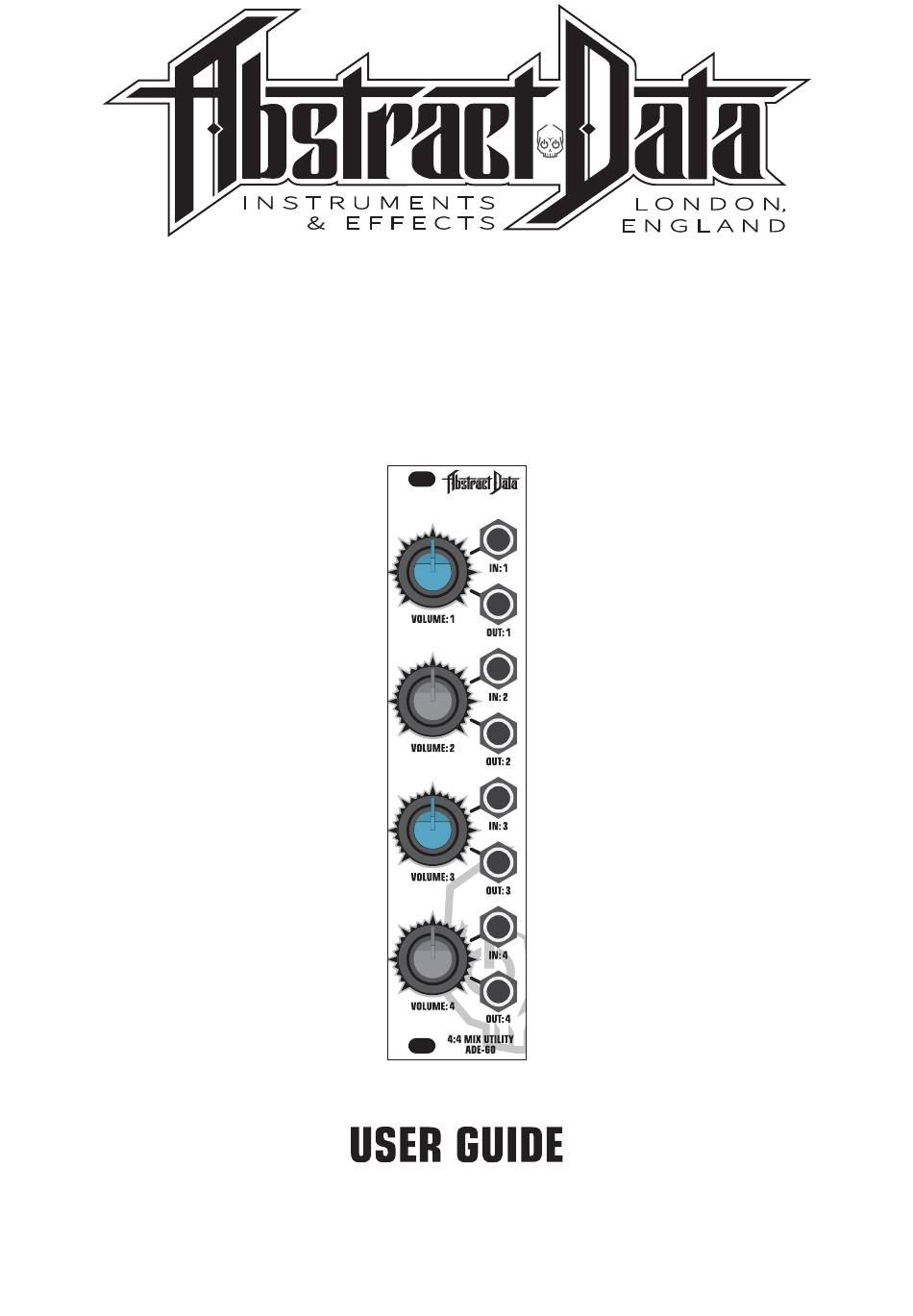

  • Page 1 ADE-60 4:4 MIX UTILITY Cascading, 4-Channel, Mix & CV Utility with user-configurable options for 2x Gain, Attenuversion, Biasing & CV. © 2017 Abstract Data Ltd. http://www.abstractdata.biz info@abstractdata.biz Version 1.0 October 2017...
  • Page 2: Specifications

    Power, connectivity and precautions Quick Start Your first patch OPERATION: Inputs & Outputs Explanation of all sockets Knobs Explanation of knob functions FEATURES: Operation Mixer configuration examples SPECIFICATIONS: Specs Hardware and spec overview © 2016 Abstract Data Ltd. Version 1.1 May 2016...
  • Page 3: Module Overview

    • The module is supplied with 2 sets of knobs - 4 Grey and 4 Blue to allow the user to denote different combinations of functionality. • The ADE-60 is capable of outputting both CV signals and high-gain audio signals - please take care not to damage speakers, headphones - or ears! - with configurations that deal with these signal types.
  • Page 4: Front Panel

    Sets the volume and the level of user-defined functions for channel 4 IN: 4 Signal input for channel 4 OUT: 4 Signal output for channel 4 or mix output of previous unpatched channels © 2017 Abstract Data Ltd. Version 1.0 October 2017...
  • Page 5: Rear Connections

    The rear panel of the ADE-60 has exposed parts and connections. Please ensure when handling the ADE-60 that the unit is held by the sides of the front panel or the sides of the Printed Circuit Board (PCB).
  • Page 6: Quick Start

    The audio signal at IN:1 is available at OUT:1-4. Connecting a patch cable to OUT:1 will remove the signal at IN:1 from OUT:2-4. Connecting a patch cable to OUT:2 will remove the signal at IN:1 from OUT:3-4. © 2017 Abstract Data Ltd. Version 1.0 October 2017...
  • Page 7: Inputs And Outputs

    Page 5 of 8 1) IN:1-4 The ADE-60 has 4 inputs - one for each of the four mixer channels. An input at any channel will cascade to all of the following channels - until those signals hit an output socket that is patched.
  • Page 8 Provides manual control over the attenuation of the input signal at the corresponding input. When any of the 3 user-configurable settings are implemented this knob will also provide manual control over Gain, Attenuversion and CV/Biasing levels. © 2017 Abstract Data Ltd. Version 1.0 October 2017...
  • Page 9: Operation

    These configurations show two variations on a 4 channel attenuator set-up. The first example gives four, independent attenuators - one for each mixer channel. The second uses the different options to provide 4 different, independent, CV sources. © 2017 Abstract Data Ltd. Version 1.0 October 2017...
  • Page 10 28mm [Panel to IDC connector] Supplied Accessories: Cable: 1x 10-16-pin, IDC cable Screws: 4x M3 CREDITS: Beta Testing: Radek Rudnicki Ben Wilson CONTACT: Justin Owen @ Abstract Data info@abstractdata.biz www.abstractdata.biz facebook.com/abstractdatabiz twitter.com/abstractdatabiz instagram.com/abstractdatabiz soundcloud.com/abstractdatabiz youtube.com/abstractjuz © 2017 Abstract Data Ltd. Version 1.0 October 2017...
