TDAP-611

AUDIO PANEL

Operating Instructions

TiL Document No. 15RE553

Rev. B

FEBRUARY 2019

Technisonic Industries Limited

240 Traders Boulevard, Mississauga, Ontario L4Z 1W7

Tel: (905) 890-2113 Fax: (905) 890-5338

www.til.ca

Table of Contents

Need help?

Do you have a question about the TDAP-611 and is the answer not in the manual?

Questions and answers

Summary of Contents for TIL TDAP-611

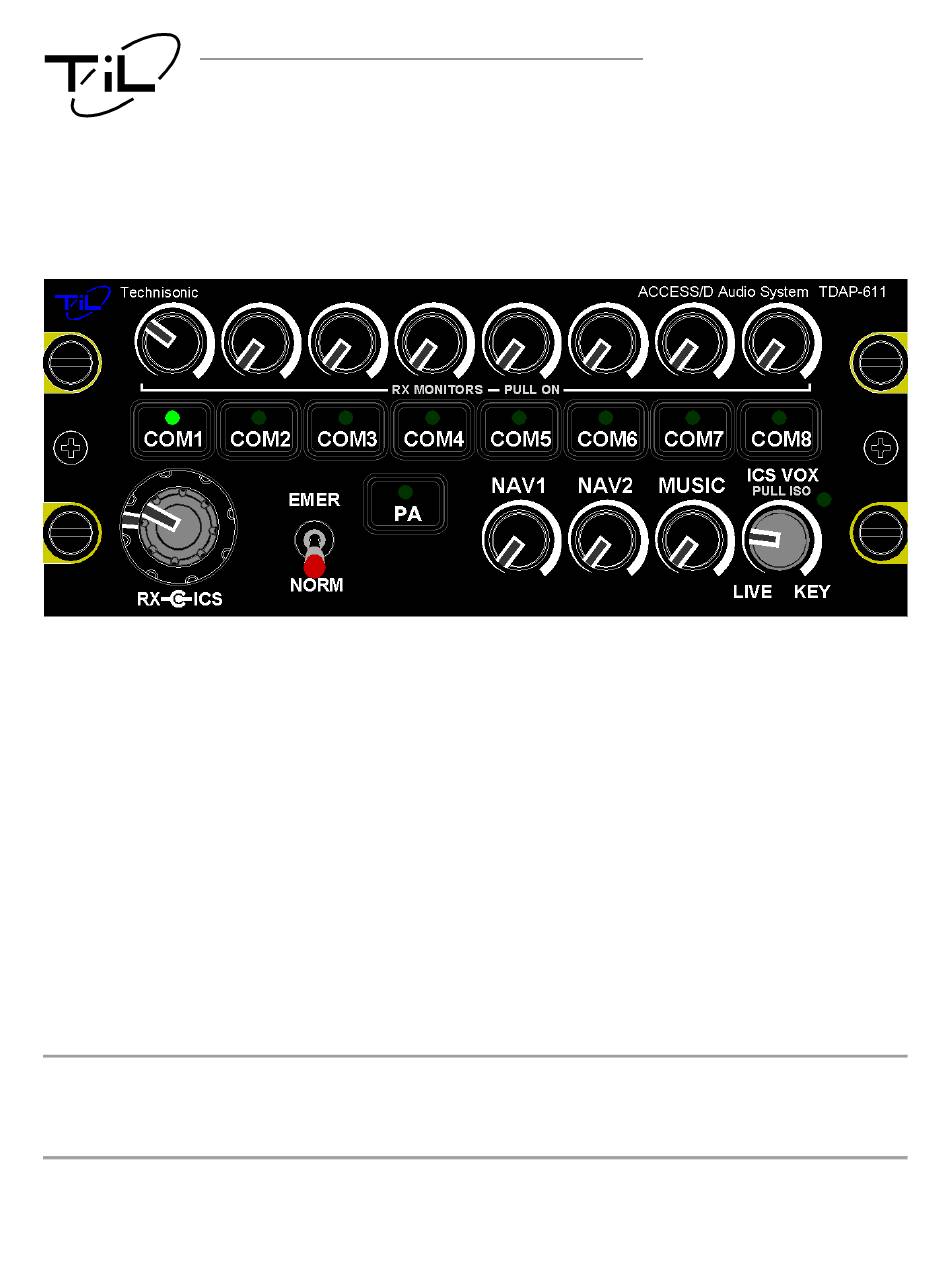

Page 1 TDAP-611 AUDIO PANEL Operating Instructions TiL Document No. 15RE553 Rev. B FEBRUARY 2019 Technisonic Industries Limited 240 Traders Boulevard, Mississauga, Ontario L4Z 1W7 Tel: (905) 890-2113 Fax: (905) 890-5338 www.til.ca Copyright by Technisonic Industries Limited. All rights reserved.
Page 2 TECHNISONIC INDUSTRIES LIMITED This page is intentionally left blank. TDAP-611 Operating Instructions TiL 15RE553 Rev. B...
Page 3 TECHNISONIC INDUSTRIES LIMITED REVISION HISTORY [ 15RE553 ] For the most current revision of this document, please check the Technisonic website: www.til.ca PAGE DESCRIPTION DATE EDITED BY Original document release. May 06, 2016 A.L. Sections 1.1 & 1.2 are clarified.
Page 4 TECHNISONIC INDUSTRIES LIMITED This page is intentionally left blank. TDAP-611 Operating Instructions TiL 15RE553 Rev. B...
Page 5 WARRANTY INFORMATION The Model TDAP-611 Audio Panel is under warranty for one year from date of purchase. Failed units caused by defective parts or workmanship should be returned to: Technisonic Industries Limited...
Page 6 TECHNISONIC INDUSTRIES LIMITED SUMMARY OF DO-160G ENVIRONMENTAL TESTING Summary of DO-160G Environmental Testing for the Technisonic Model TDAP-611 Audio Panel: Conditions Paragraph Category Temperature and Altitude A2, B2, D1 Temperature Variation Humidity Operational Shocks and Crash Safety Vibration: Sinusoidal Profile M...
Page 7: Table Of Contents
2.10 CHANGING RADIO LEGENDS ..................9 WARRANTY ........................10 LIST OF FIGURES FIGURE TITLE PAGE TDAP-611 Front Panel Operators Switches and Control ..........5 LIST OF TABLES TABLE TITLE PAGE TDAP-611 General Specifications ................. 2 TDAP-611 Operating Instructions TiL 15RE553 Rev. B...
Page 8 TECHNISONIC INDUSTRIES LIMITED This page is intentionally left blank. TDAP-611 Operating Instructions TiL 15RE553 Rev. B viii...
Page 9: Introduction
7 distinct Users (Pilot, Co-pilot, and five passengers) with varying degrees of connectivity depending on their station. The TDAP-611 connects to all aircraft Transceivers (up to a maximum of 8 distinct Transceiver Inputs), Navigational Receivers (up to a maximum of 8 distinct Receiver Inputs), Externally Alerting Sirens, and User Headsets.
Page 10: Technical Characteristics
TECHNISONIC INDUSTRIES LIMITED TECHNICAL CHARACTERISTICS TDAP-611 GENERAL SPECIFICATIONS MODEL TDAP-611 - ACCESS/A Audio Controller: PHYSICAL CHARACTERISTICS: Width (max.) ........................5.73 inches Height (max.) ........................2.24 inches Depth (behind panel) ......................4.59 inches Weight ........................2.23 lbs. (1.01 Kg) Mounting ....................Standard Dzus, 4 fasteners POWER SOURCE REQUIREMENTS: DC Voltage (MIN, TYPICAL, MAX) ................
Page 11: System Limitations
Should RF susceptibility pose a problem in a particular installation, the installer may wish to try terminating shields at both ends of the cable. If this does not produce satisfactory results, then double shielding may be required. TDAP-611 Operating Instructions TiL 15RE553 Rev. B...
Page 12 TECHNISONIC INDUSTRIES LIMITED This page is intentionally left blank. TDAP-611 Operating Instructions TiL 15RE553 Rev. B...
Page 13: Front Panel

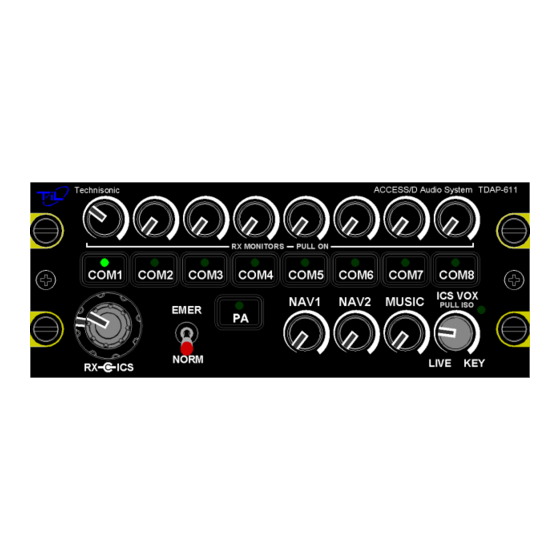

SECTION 2: OPERATING INSTRUCTIONS FRONT PANEL This section explains the operation of the TDAP-611 Audio Panel, and how to use the system in a typical aircraft environment. All normal user controls are on the front panel of the unit and are either variable rotating controls, or selectable pushbutton switches.
Page 14: Com Selection And Volume Controls
The MAIN RX VOLUME control (outer control of the dual concentric knob on the bottom left of the front panel) controls the volume level of all NAV transceivers at once (as well as all COM transceivers). TDAP-611 Operating Instructions TiL 15RE553 Rev. B...
Page 15: Intercom (Ics) Selection And Volume Controls
VOX) to accommodate differing headset types or ambient noise conditions. With only a single TDAP-611 Audio Panel, best operation of all ICS functions is obtained when the microphones are all of the same type (or have very similar characteristics). Headsets with significantly different microphones or earpiece efficiencies make it difficult to achieve satisfactory control adjustments for all users, unless they also have individual level controls.
Page 16: Emergency Switch Operation
DIRECT AUDIO CONNECTIONS The TDAP-611 has three different un-switched, direct audio inputs. One is routed directly to the Pilot’s headset output via a resistive pad. This is used when an existing airframe threat alerting system must be tied directly to the pilot’s headset. This function is active when in either the normal or emergency mode, and its volume is a function of the external generating source and the headset impedance.
Page 17: Speaker Audio
TECHNISONIC INDUSTRIES LIMITED SPEAKER AUDIO The TDAP-611 has a speaker channel that may be used as a “music only” feed for a passenger cabin area, if desired. This is an optional connection and does not have to be used. The speaker level is driven by the front panel MUSIC control and by an optionally attached external music volume control.
Page 18: Warranty
Technisonic. This Warranty shall not be transferable or assignable to any other persons, firms, or corporations. For warranty registration, please complete the online Warranty Registration Form found at www.til.ca. TDAP-611 Operating Instructions TiL 15RE553 Rev. B...
