Summary of Contents for MicroConnect MC-USB3.0-F2B2-V2

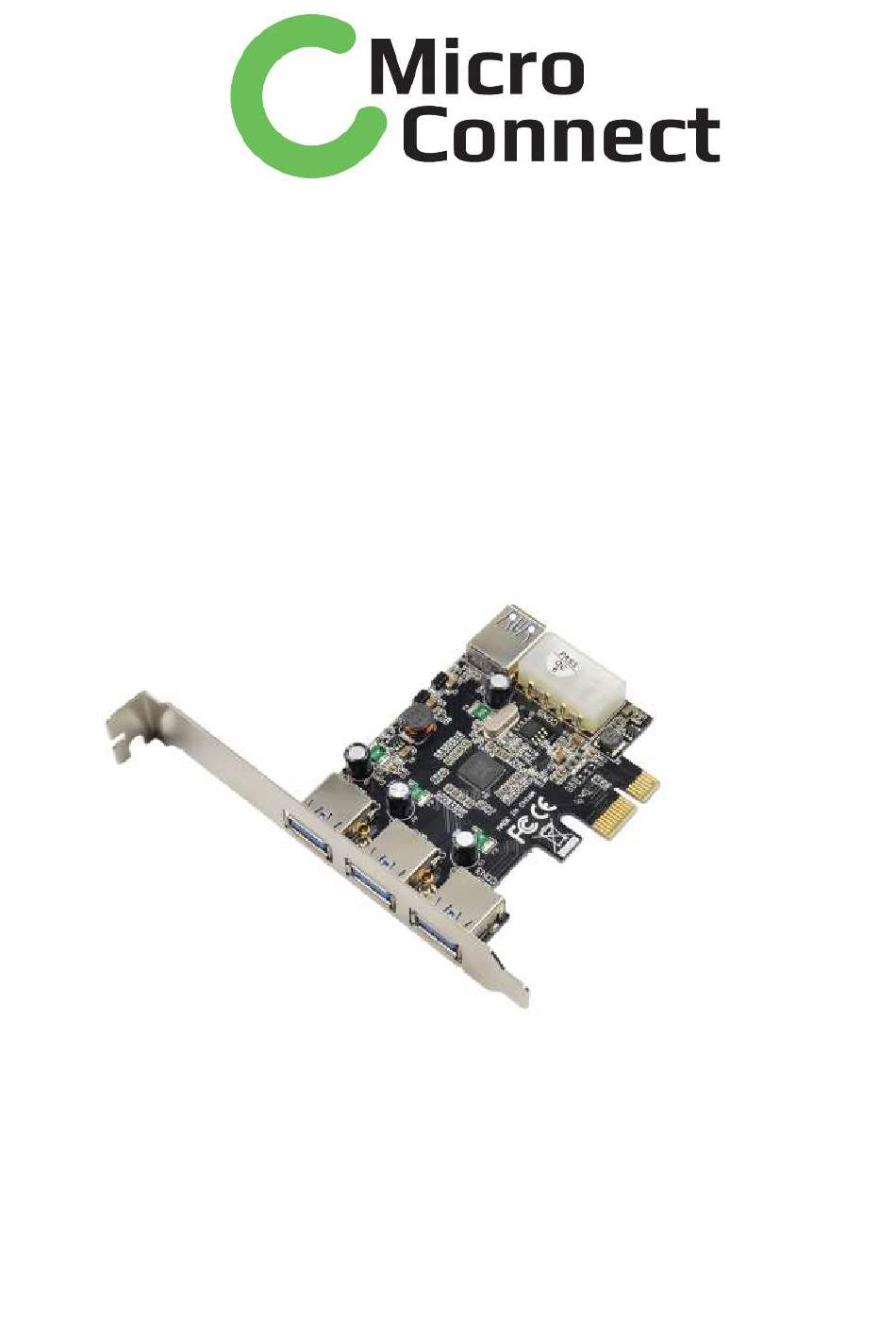

- Page 1 PCIe USB3.0 3+1 Ports Expansion Card VL805 P/N: MC-USB3.0-F2B2-V2...
- Page 2 Introduction This production is a single chip USB 3.0 Host controller which enables a PCI Express equipped platform to interface with USB Super-Speed(5Gbps),High-Speed(480Mbps),Full-Speed(12Mbps), and Low-Speed (1.5Mbps) devices, Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used.
- Page 3 * Available PCI-Express X1 slot Package Contents 1x PCI-Express USB3.0 4PORTS 1x Manual 1x Driver CD Hardware Installation Step 1: Turn off your PC, unplug the power Card and open the case of PC. Step 2: Remove the mini PCIe Slot cover as below. Step 3: Plug USB3.0 PCIe card in mini PCIe Slot and install the bracket screw that secures the card to the computer chassis.
- Page 4 To Verify Driver Installation Click on the “Device Manager” tab in System Properties, which you access from the Windows Control Panel. You should see a “VIA USB 3.0 Root Hub” and a “VIA USB eXtensible Host Controller” under the “Universal Serial Bus controllers” item.
