Q-Light S80SM Operating Manual

S80SM / S100SM / S125SM
OPERATING MANUAL

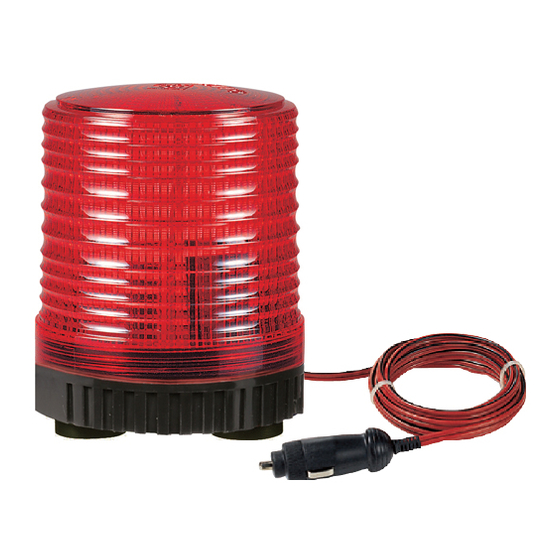

Xenon Lamp Strobe Light with Magnet
Thank you for purchasing Q.Light product. Please read this
manual carefully before installing this product for safe and long
use.
▪ Suitable for a bright place and a signal transfer for a long
distance with a strong strobe signal light.
▪ Having a strong magnetic that can be attached or detached
freely along to vehicle surface.
▪ Easy to change its lamp by taking a connector type lamp.
▪ Material : Lens-AS, Body-ABS
▪ Flashes : 60-80/Min.
▪ Protection Class : IP54
1) S80SM
▪ General Specification
Rated
Model Current
Voltage
DC12V 0.433A
S80SM
DC24V 0.216A
▪ External View Drawing
2) S100SM
▪ General Specification
Weight Flashes Color
RED-R
0.26Kg
AMBER-A
60~80/min.
GREEN-G
0.26Kg
BLUE-B
S80SM
Rated
Model Current
Voltage
DC12V 0.722A
S100SM
DC24V 0.388A
▪ External View Drawing
S100SM
3) S125SM
▪ General Specification
Rated
Model Current
Voltage
DC12V 0.722A
S125SM
DC24V 0.388A
▪ External View Drawing
S125SM
Weight Flashes Color
RED-R
0.34Kg
AMBER-A
60~80/min.
GREEN-G
0.34Kg
BLUE-B
Weight Flashes Color
RED-R
0.42Kg
AMBER-A
60~80/min.
GREEN-G
0.42Kg
BLUE-B
