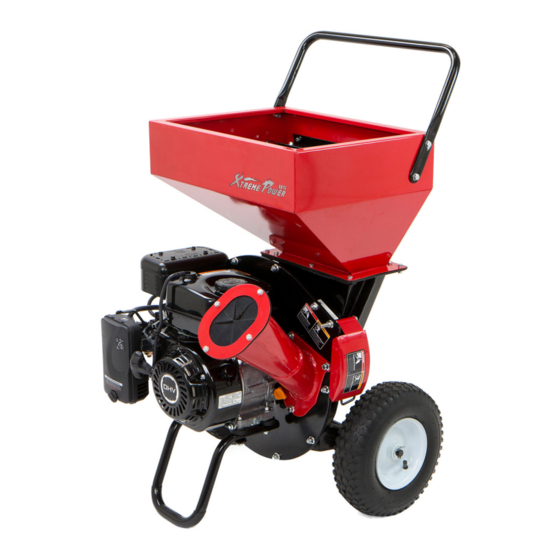

Xtreme Power 212 CC Owner's Manual And Safety Instructions

Wood chipper shredder

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

212 CC WOOD CHIPPER SHREDDER

ITEM: 61030

OWNER'S MANUAL AND SAFETY INSTRUCTIONS

SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,

OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE

PRODUCT'S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM

(OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).

For questions please call our customer support: (909) 628 0880 Mon-Fri 9am to 3pm PST

Table of Contents

Troubleshooting

Need help?

Do you have a question about the 212 CC and is the answer not in the manual?

Questions and answers

Summary of Contents for Xtreme Power 212 CC

Page 1 212 CC WOOD CHIPPER SHREDDER ITEM: 61030 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. SAFETY YOU MUST READ, UNDERSTAND AND COMPLY WITH ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO SETUP AND OPERATE YOUR CHIPPER SHREDDER.
Page 3 IMPORTANT SAFETY INFORMATION SAFETY DECALS This unit has been designed and manufactured to provide you with the safety and reliability. Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this equipment safely and effectively, we have placed several safety labels on the unit to remind you of this important information while you are operating your unit.
Page 4 IMPORTANT SAFETY INFORMATION It is a violation of California Public Resource Code Section 4442 to use or operate the engine on or near any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester meeting any applicable local or state laws. Other states or federal areas may have similar laws.
Page 5 IMPORTANT SAFETY INFORMATION NEVER attempt to perform any maintenance, repairs, or attachment of accessories while the unit is running. Always shut the unit off, allow the rotor to come to a complete stop, and remove the spark plug wire from the spark plug before beginning these activities. ALWAYS make sure that the shredding chamber, shredder hopper, and chipper cone are empty before starting the unit after it has been idle.
Page 6 IMPORTANT SAFETY INFORMATION Gasoline Fires and Handling Fuel Safely Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive. When storing extra fuel be sure that it is in an appropriate container and away from any fire hazards. Prevent fire and explosion caused by static electric discharge.
Page 7: Install The Wheels
ASSEMBLY INSTALL KICK STAND 1. Position the kick stand (A) underneath the engine with the loop of the kick stand pointing away from the wheel axle (B). 2. Using the four M8-1.25 X 40 bolts (C), eight M8 washers (D) and four M8-1.25 nuts (E), secure the kick stand to the base plate of the engine.
Page 8: Install The Handle
ASSEMBLY INSTALL THE HOPPER GAURD 1. Hold the hopper guard assembly (A) so that the rubber guard is directed down towards the bottom of the hopper. Align the assembly holes with the holes in the hopper. 2. Using the three M6-1.0 x 16 bolts (B), M6 springlock washers (C) and M6-1.0 nuts (D), secure the guard assembly (A) to the hopper.
Page 9: Operation
OPERATION Be sure to read all information in the Safety and Operation sections before attempting to operate this unit. Become familiar with all of the controls and how to stop the unit. Check all hardware (bolts, screws, etc) before every use for tightness to be sure machine is in safe working condition. Upon start-up and shut-down, you may hear the metal-to-metal sound of the triangular hammers and J-hammers positioning themselves on the rotor.
Page 10 OPERATION STARTING THE ENGINE 1. See engine manual for start up instructions. 2. Ensure engine is running full throttle before beginning chipping operation. On some engines, the throttle may not be adjustable. STOPPING THE ENGINE 1. See engine manual for shut down procedure. 2.
Page 11: Transporting And Storage
STORAGE AND TROUBLESHOOTING TRANSPORTING AND STORAGE 1. ALWAYS observe safe refueling and fuel handling practices when refueling the unit after transportation or storage. 2. NEVER store the unit (with fuel) in an enclosed poorly ventilated structure. Fuel vapors can travel to an ignition source (such as a furnace, water heater, etc.) and cause an explosion.
Page 12 MAITENANCE SCHEDULE & PROCEDURES The following schedule should be followed for normal care of your unit. ENGINE MAINTENANCE Refer to the engine manual included in your parts packet for information on engine maintenance. Your engine manual provides information and a maintenance schedule for performing the following tasks: 1.
Page 13: Inspect / Rotate Shredding Hammers
MAITENANCE INSPECT / ROTATE SHREDDING HAMMERS Service Interval: Every 25 Hours, or As Necessary. The shredding hammers of this unit can be rotated to provide a new cutting surface as required. The triangular hammers can be rotated twice, then flipped over for a total of 6 sharp cutting surfaces.
Page 14: Inspect Chipping Knives
MAITENANCE INSPECT CHIPPING KNIVES Service Interval: Every 25 hours, or as necessary The chipping knives of this unit can be rotated or sharpened to provide a new cutting surface as required. When inspecting the knives be careful to avoid touching the sharpened edges. To inspect the chipping knives: 1.
Page 15: Troubleshooting
TROUBLESHOOTING...
Page 16 REPAIR Shredding Hammer Rotation and Replacement The cutting edges of the shredding hammers may eventually wear out requiring rotation of the hammer or replacement if all cutting edges have been dulled. Triangular hammers can be rotated twice after the first edge dulls, then flipped over once and rotated again for a total of 6 edges.
Page 17 REPAIR...
Page 18 PARTS LIST...
Page 19 PARTS LIST...
Page 20 PARTS LIST...
Page 21 PARTS LIST...
Page 22 PARTS LIST...
Page 23 PARTS LIST...
Page 24: Warranty
WARRANTY DISCLAIMER THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
