STG-65
BAR H
Elektronik GmbH

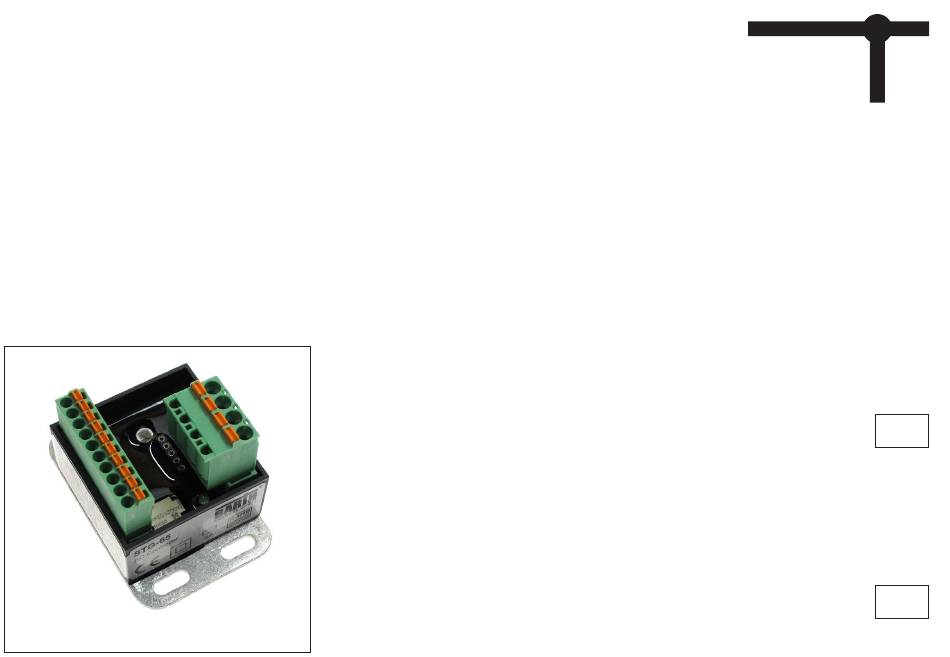

Mini-SPS STG-65
Art.-Nr. 0850-0065
Anleitung
DE
Mini-PLC STG-65
Art.-No. 0850-0065
Manual
EN
®

Advertisement

Table of Contents
loading

Summary of Contents for BARTH Elektronik STG-65

  • Page 1 ® BAR H Elektronik GmbH Mini-SPS STG-65 Art.-Nr. 0850-0065 Anleitung Mini-PLC STG-65 Art.-No. 0850-0065 Manual STG-65...
  • Page 2: Table Of Contents

    Inhalt Content Produktbeschreibung                            3 Product Description                              9 Bestimmungsgemäßer Gebrauch                  4 Destinated Use                                 10 Sicherheitshinweise                              4...
  • Page 3: Produktbeschreibung

    • Großer Temperaturbereich -25..+60°C Intelligente AC-Kleinsteuerung 100-240V • Universelle Alu-Montageplatte Die STG-65 beinhaltet eine vollständige und frei program- • Abmessungen (LxBxH): 40 x 40 x 22 mm mierbare Mini-SPS mit einem Hochleistungsausgang zum Ansteuern von AC-Lasten bis 4A im Dauerbetrieb.
  • Page 4: Bestimmungsgemäßer Gebrauch

    Bestimmungsgemäßer Gebrauch Elektrischer Anschluss Hardware und Software der Mini-SPS dürfen nur für die Die STG-65 verfügt über insgesamt drei Steckverbinder mit beschriebenen Einsatzfälle und nur in Verbindung mit den Bezeichnungen X1, X2 und X3. Der 10-polige Steckver- den von BARTH Elektronik GmbH freigegebenen Kom- binder X1 beinhaltet die Anschlüsse für die Spannungsver-...
  • Page 5: Anschlussbelegung

    Anschlussbelegung Stecker Funktion Versorgungsspannung +7..32 VDC Versorgungsspannung 0V (GND) Eingang 0-10 VDC (gegen GND) IN1 (Schalter, Taster oder Poti gegen GND) IN2 (Schalter, Taster oder Poti gegen GND) Relaisausgang (bistabil, 1A) Anschlusslayout Relaisausgang (bistabil, 1A) N (Nulleiter, gebrückt mit X2.2)* Programmierung N (Nulleiter, gebrückt mit X2.1)* Zur Programmierung der Mini-SPS orientieren Sie sich...
  • Page 6: Programmierschnittstelle

    Field Programmer PG-1 SD-Card AC-Lastausgang 0017-0002 Programmiergerät PG-2 für BARTH Mini-SPS Der Lastausgang der STG-65 ist in der Lage ohmsche und induktive Lasten bis 1kW zu schalten. Dabei kann per Soft- ware zwischen Phasenanschnitt-, Vollwellen- und Impuls- Programmierschnittstelle paketsteuerung gewählt werden.
  • Page 7: Blockschaltbild

    Blockschaltbild...
  • Page 8: Technische Daten

    Technische Daten Schockfestigkeit Min. 100 m/s (10 G) Vibrationsfestigkeit Min. 50 m/s (5 G) Betriebsspannung AC 100..240 VAC, 50/60 Hz @ 10..100 Hz Ausgangsstrom AC 4 A (Dauerbetrieb, S1) Leiterquerschnitt X1 0,5..1,5 mm² (feindrähtig) Absicherung AC Leiterquerschnitt X2 0,5..2,5 mm² (feindrähtig) Stellbereich AC-Ausgang 0..100 % Schutzart...
  • Page 9: Product Description

    AC-loads up to 4A (continuous operation). Supported by an interface Applications of 0-10V as well as two universal inputs the STG-65 can be • Temperature controls used as an direct AC-driver for i.e. heaters, fans etc.
  • Page 10: Destinated Use

    Destinated Use Electrical Connection Hardware and software of the Mini-PLC may only be The STG-65 is equipped with three plugable connectors used for specified applications in combination with (X1, X2 and X3). The 10-pole spring terminal connector X1 peripheral components released by BARTH Elektronik...
  • Page 11: Connection Table

    Connection Table Stecker Funktion Supply Voltage +7..32 VDC Supply Voltage 0V (GND) Input 0-10 VDC (ref. GND) IN1 (switch, button, potentiometer, ref. GND) IN2 (switch, button, potentiometer, to GND) Relay Output (bistable, 1A) Connection Layout Relay Output (bistable, 1A) Programming N (Neutral wire, internally wired with X2.2)* For programming the Mini-PLC please refer to the N (Neutral wire, internally wired with X2.1)*...
  • Page 12: Programming Interface

    0017-0001 Field Programmer PG-1 SD-Card 0017-0002 Programmer PG-2 for BARTH Mini-PLC AC Power Output The power output of the STG-65 is able to drive resistive Programming Interface and inductive loads up to 1kW. The software offers the opti- on to select from phase control, puls package control and Protect the X3 Programming Interface against Electro- full-wave control.
  • Page 13: Block Diagram

    Block Diagram...
  • Page 14: Technical Specifications

    Technical Specifications Shock Resistance Min. 100 m/s (10 G) Vibration Resistance Min. 50 m/s (5 G) Operating Voltage AC 100..240 VAC, 50/60 Hz @ 10..100 Hz Output Current AC 4 A (continuous, S1) Wire Gauge X1 0,5..1,5 mm² (flexible) Fusing AC (external) Wire Gauge X2 0,5..2,5 mm²...
