Konami Warzaid GKC22-UCC Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

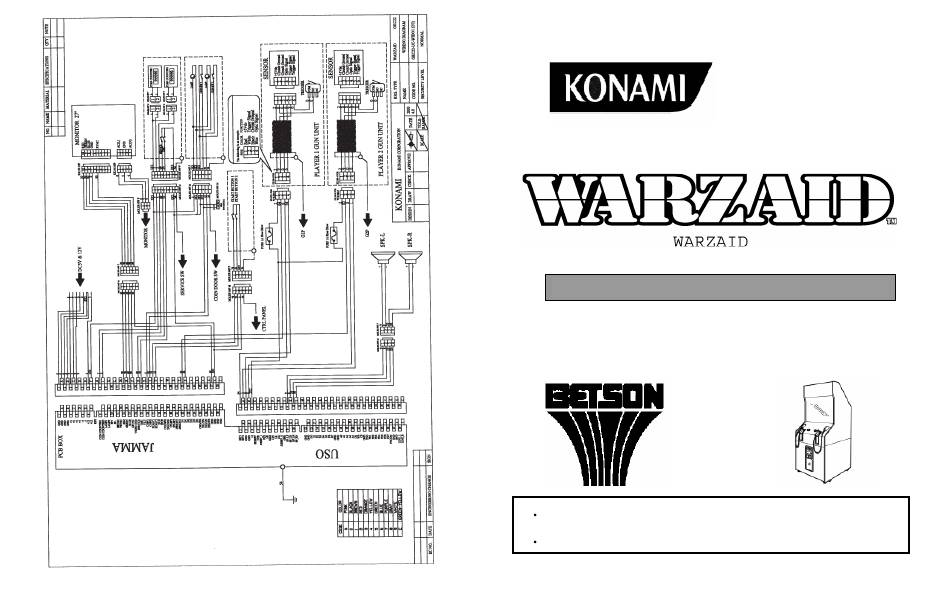

Set-up, Operation, Maintenance, Parts catalog and Wiring Diagram
Operators Manual
GKC22-UCC
Failure to operate the machine correctly could result in malfunction or accidents, so please read this manual
carefully before operation. Be sure to operate the machine as described in this manual.
Keep this manual carefully so as to be ready for use when necessary.
28
About This Product
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Warzaid GKC22-UCC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Konami Warzaid GKC22-UCC

  • Page 1 Set-up, Operation, Maintenance, Parts catalog and Wiring Diagram Operators Manual GKC22-UCC Failure to operate the machine correctly could result in malfunction or accidents, so please read this manual About This Product carefully before operation. Be sure to operate the machine as described in this manual. Keep this manual carefully so as to be ready for use when necessary.

  • Page 2: Contact Information

    Thank you for purchasing this KONAMI product. This manual explains how to operate your game machine correctly and safely. Failure to operate the machine correctly could result in malfunction or accident, so please read this manual carefully before commencing operation. Be sure to operate the machine as described in this manual.

  • Page 3: Table Of Contents

    TROUBLESHOOTING If the power switch is turned “ON” but the machine fails to start properly, take the following measures. If the machine still malfunctions or any other problem than Table of Contents described below occurs, immediately turn “OFF” the main power to the machine, unplug the receptacle, and contact your nearest distributor.

  • Page 4: Specifications

    2 - Specifications CLOCK Mode for setting the current clock time. Once the clock settings have been made using this menu, the total coin and play data can be viewed in the “BOOKKEEPING” screens. Pull the trigger of the player 1 or player 2 gun to select the “Hour”, “Minute”, and “Second”...

  • Page 5: Contents Of The Product

    3 -- Contents of the Product Screen for the total number of coins per hour Make sure the following parts are in the product Screen indication of game play details 3.1 -- Accessories Make sure that the following accessories are all in the machine. If any parts are missing or defective please contact your local distributor or Betson Enterprises.

  • Page 6: Names Of Parts

    4 – Part Numbers and Descriptions Screen of the total number of coins for the last 7 days. Screen total for the total coins for the last 52 weeks Screen for the total number of coins for each day of the week Complete Red Gun ------------------------------------------------ Part Number --- 47-4400-01 Complete Blue Gun ----------------------------------------------- Part Number --- 47-4400-02 Red Gun Case with trigger and Spring --------------------------Part Number --- 47-4409...
  • Page 7 BOOKKEEPING 4 – Part Numbers and Descriptions -- Continued Let’s suppose that the clock is not set yet (just after this product has been installed or initialized, for example). If you try to set “BOOKKEEPING” to “ON”, the following message appears on the screen to prompt you to set the clock. The bookkeeping screens cannot be opened.
  • Page 8 COIN OPTIONS Mode for settings and checking the coin options. Pull the gun trigger for the player 1 or the player 2 gun to select the desired item and press the start button of the player 1 or player 2 to select. To return to the “MAIN 4 –...

  • Page 9: Power Unit

    Game Options 4 – Power Unit The Power Supply is located at the rear of the machine. Mode for setting and checking the game options. Be sure to use the enclosed AC power cord. Pull the trigger of the player 1 or player 2 gun to select the desired item and press the Be sure to ground the machine.

  • Page 10: How To Play

    5 -- How to Play Game Dip Switch Bit Number Be sure to set the DIP switches as shown in the figure to the left. Otherwise, the machine will fail to function correctly. This machine gives a lively entertainment of a soldier gun-shooting simulation game, OFF OFF ON ON which can be competed by a maximum of 2 players at a time.
  • Page 11 Machine gun ---- Can shoot continuously If the ROM check is aborted, “ABORTED” is displayed. (The number of bullets is limited and cannot be reloaded) Rocket launcher - Can destroy tanks and combat helicopter with one shot. ABORTED (The number of bullets is limited and cannot be reloaded) Life up ---- Increases by one life point.

  • Page 12: Game Settings

    Screen Check 6-1 – Checking the Game at start up Adjusting the screen distortion S When the game is first turned ON after the installation of the machine, the self Mode for checking the screen. diagnostic test will begin. The test results will be displayed on the screen. If the power Adjust the vertical and horizontal picture size, as required, using the test screen is not turned ON, make sure that the main power switch is in the ON position.
  • Page 13 6-2 – Game Settings and Adjustments This section describes how to change and check the current game settings, as required. S Starting the Test Mode ------------------------------------------ Gun Check 1. Turn on the power switch. Checking the gun reaction and Sighting 2.

  • Page 14: Mode Descriptions

    Selecting Each Mode --------------------------------------------------- “I/O CHECK” item selection screen How to select each mode from the main menu.. --- Select ---- Pull the trigger of the player 1 or player 2 gun. --- Set -------- Press the start button for player 1. For a basic explanation of each mode refer to the above pages.
