Summary of Contents for Rack Solutions QUICKRAIL-2950

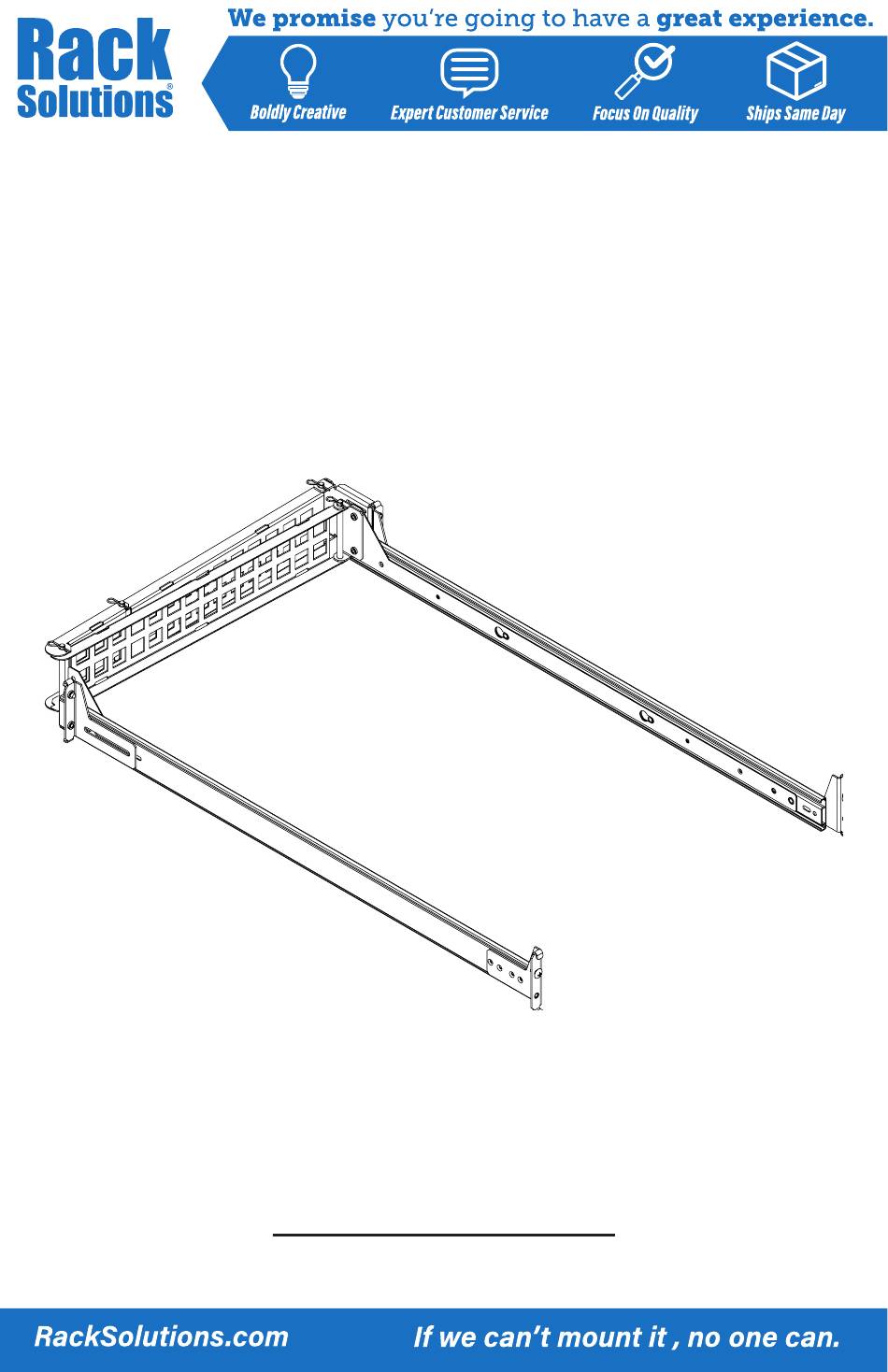

- Page 1 Patent(s) Pending Sliding Quick Rail Kit for Dell 2950 Server Installation Instructions Kit P/N: QUICKRAIL-2950...
- Page 2 Kit Contents Kit Contents Rail Hardware: (1) Cable Management Arm Assembly (7) 10-32 x .375 Truss Head Screws (2) Rail Assembly (2) 8-32 x .188 Phil Pan Head (2) 8-32 x .375 Phil Pan Head Cable Arm Brackets: (1) Long CMA Bracket Installation Instructions Step 1.
- Page 3 Installation Instructions Step 3. Mount Outer Rail Assemblies: Mount both rails in the Rack as shown below. You can mount Cable Managment Arm on whichever side you choose. 10-32 x .375 Truss Head Screws 10-32 x .375 Truss Head Screws top hole only bottom hole for Server Thumbscrew This Bracket comes preattached, if it does not work...
- Page 4 Installation Instructions Step 5. Attach CMA Bracket: Attach the CMA Bracket to the inner shim, using the specified hardware. 8-32 x .375 8-32 x .188 (Make sure you use the short screw here, or your rails will not function properly) Warranty Statement Innovation First, Inc.
