Operating Instruction Manual
------------------------------------------------------------------
Thank you for purchasing our product
Please read this operation instruction manual carefully before use, and follow the manual
to install and use it. Additionally, please pay attention to the security precautions.
Advertisement
Table of Contents
Summary of Contents for Sunsky TS-YP710MA
- Page 1 Operating Instruction Manual ------------------------------------------------------------------ Thank you for purchasing our product Please read this operation instruction manual carefully before use, and follow the manual to install and use it. Additionally, please pay attention to the security precautions.

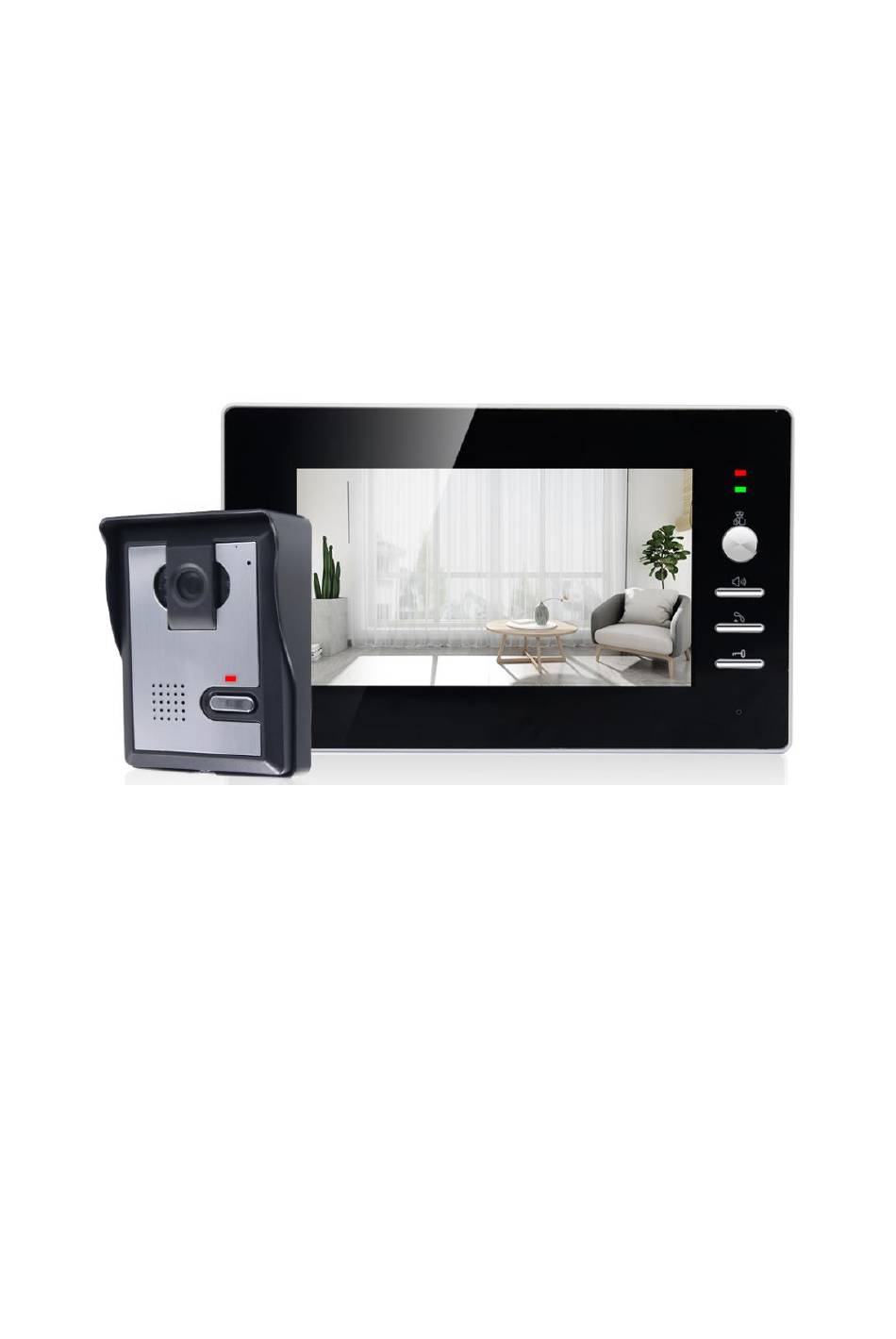

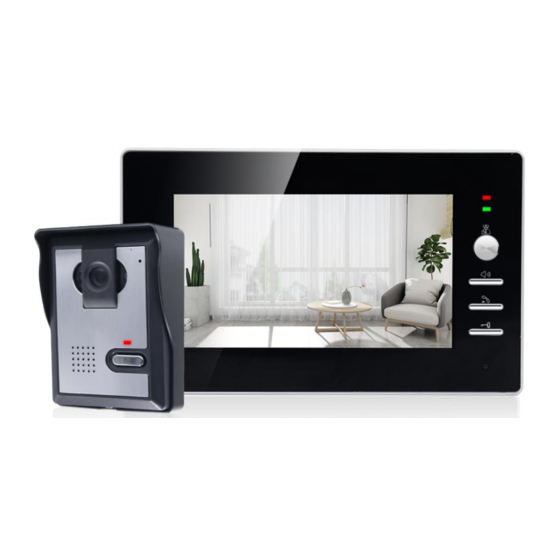

- Page 2 1、Product introduction This amazing doorphone intercom system could be a truly effective solution for improving security of your property. Advanced technology a nd the latest computer chips are adopted in this intercom system for h igh stability and durability. Its 7’’ TFT screen with infrared camera sens or provide you with quality images for monitoring use even at night.
- Page 3 3、Description of the indoor & outdoor unit 4、Appearance of product & parts Cable for installation test Note:Please use this cable to test the product before the installation. Only install and use the product after the test is successful.
- Page 4 5、Installation Outdoor...
- Page 5 *Attention items Avoid installing this outdoor camera with directly exposure to sunlight. At night, when the visitors’ back is shone by the streetlight or luminance things, you should install a light to enhance the imaging effects. 6、Connection 1 V 1...
- Page 6 1 V 2 7、Operation Visitors Calls The visitor presses the CALL button on the outdoor door station, all installed monitors will ring and the visitor will be seen, can talk to the visitor by pressing the TALK button once. Press TALK again to cancel. Answering the visitors call from installed monitor Press INTERCOM once on any of the installed monitors and a 2 way conversations can be started between the monitor and monitor(Two or...
- Page 7 8、Specifications Outdoor Camera Night vision IR Light, visible within 5 meters Vision angle 120° Wide Angle Resolution > 420 TV Line Power consumption Standby: 0.1W; Working: 4W -10℃~+55℃ Working temperature Installation Wall mounted Indoor Monitor Screen 7'' wide angle TFT LCD, 16:9 Display Resolution 800*RGB*480 Power input...
- Page 8 9、Attention 10、After-sales service Warranty place: the defective products will be sent back to our company by the distributors. The factory of our company will arrange maintenance work.
