Accell AxFAST 3202 User Manual

Portable electric vehicle supply equipment

Hide thumbs

Table Of Contents

User Manual

Accell AxFAST Level 2

Portable Electric Vehicle Supply Equipment

Model #: 3202

P/N: P-240VUSA-3202

Accell AxFAST 3202 User Manual, version 1.0, June 2019

Table of Contents

Need help?

Do you have a question about the AxFAST 3202 and is the answer not in the manual?

Questions and answers

Summary of Contents for Accell AxFAST 3202

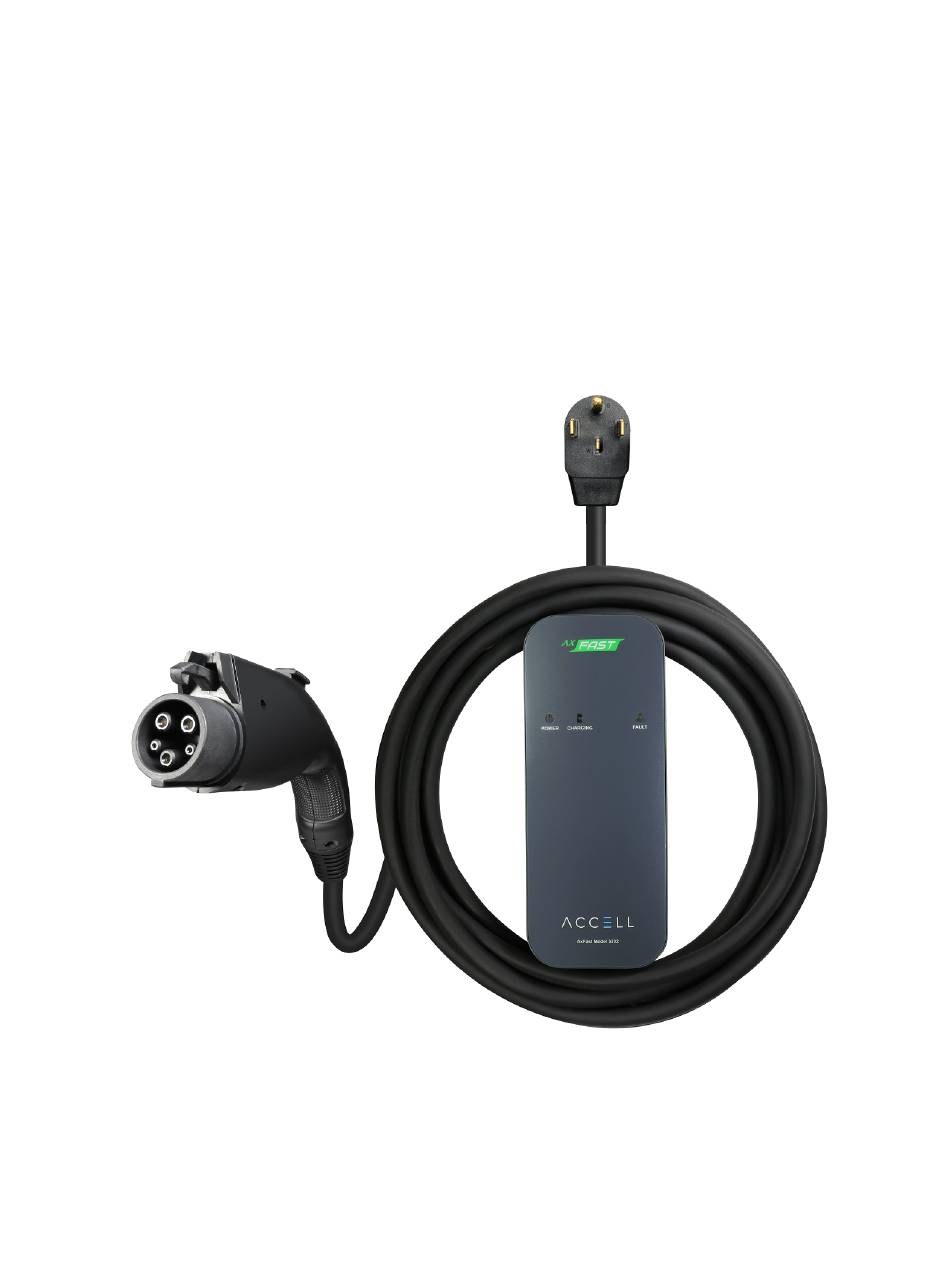

Page 1 User Manual Accell AxFAST Level 2 Portable Electric Vehicle Supply Equipment Model #: 3202 P/N: P-240VUSA-3202 Accell AxFAST 3202 User Manual, version 1.0, June 2019 Copyright © 2019. Accell, Inc. All rights reserved. Printed in the USA.
Page 2: Table Of Contents
7. The Front Panel LED Indicators................... 9 8. Installa on.........................11 9. Maintenance........................12 10. Customer Support......................13 11. Warranty Informa on....................... 14 Accell AxFAST 3202 User Manual, version 1.0, June 2019 Copyright © 2019. Accell, Inc. All rights reserved. Printed in the USA.
Page 3: Safety Instruc On And Informa On
Support sec on in this manual for service informa on. Do not a empt to repair the Accell AxFAST Portable EV Charger yourself. Doing so will void all warranty. Make sure Accell AxFAST Portable EV Charger is posi oned where it will not be stepped ■...
Page 4: Fcc Informa On
If you suspect your charger is receiving interference, we recommend the following steps be taken before contac ng Accell Support for assistance: Accell AxFAST 3202 User Manual, version 1.0, June 2019 Copyright © 2019. Accell, Inc. All rights reserved. Printed in the USA.
Page 5: Accell Axfast Portable Evse
1 x Carry Bag 1 x EV Charger Holster with Moun ng Screws 4 x Screws and Drywall Anchors Accell AxFAST 3202 User Manual, version 1.0, June 2019 Copyright © 2019. Accell, Inc. All rights reserved. Printed in the USA.
Page 6: Specifica Ons
Accell AxFAST 3202 Portable EV Charger is a 240V system with deadband restric on to provide maximal versa lity with regulatory complied safety protec on. Accell AxFAST Portable EV Charger with AC plug will draw 80% of the outlet’s rated current as a safety precau on, mee ng regula on requirements.
Page 7 < 7.5W 208-240 Vac, single phase, Output Ra ng 32A max. 7.2kW EV Charger Type Support SAE J1772 coupler Accell AxFAST 3202 User Manual, version 1.0, June 2019 Copyright © 2019. Accell, Inc. All rights reserved. Printed in the USA.
Page 8: Required Outlets
5. OUTLETS REQUIREMENTS This product requires the use of a grounded outlet. The u lity socket for Accell AxFAST Portable EV Charger’s plug must have “ground” or “earth” line properly func oning. If this product should malfunc on or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.
Page 9: Charging Your Electric Vehicle
6. CHARGING YOUR ELECTRIC VEHICLE (EV) Accell AxFAST Portable EV Charger is designed for charging in 240 Vac. Plug Accell AxFAST Portable EV Charger into a NEMA 14-50 wall outlet and wait un l the ● blue POWER LED is lit non-blinking.
Page 11 The following table shows the status of Accell AxFAST Portable EV Charger indicator lights. It is intended for user and maintenance personnel’s reference. POWER CHARGING FAULT (Blue) (Green) (Yellow) Description Ready to plug into electric vehicle to charge or electric vehicle is fully charged.
Page 12: Installa On
If a permanent installa on is desired, Accell AxFAST Portable EV Charger can be mounted as shown below, on either a hollow or solid wall. The screws and plas c wall anchors are included in the accessory package.
Page 13: Maintenance
Accell AxFAST Portable EV Charger requires no periodic maintenance other than occasional cleaning. Please Note: 1. Unplug the AC plug or turn oﬀ the circuit breaker connected to Accell AxFAST Portable EV Charger before cleaning. 2. Clean Accell AxFAST Portable EV Charger using a so cloth lightly moistened with mild detergent solu on.
Page 14: Customer Support
______________________________________________________________________ ● Detailed descrip on of issue, including photos and videos are helpful and much appreciated Accell AxFAST 3202 User Manual, version 1.0, June 2019 Copyright © 2019. Accell, Inc. All rights reserved. Printed in the USA.
Page 15: Warranty Informa On
Accell will ship the repaired or replacement products to you freight prepaid to an address in the United States. Accell is unable to ship to P.O. Boxes or APO/FPO Addresses. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR JURISDICTION TO JURISDICTION.
