Long Ranger Battery Pack Update
CAUTION:
Replace battery only with Lectrosonics Part No.
"LRIIIBATT". Due to the fast charge circuitry,
you must use this specific battery. Any other
battery will quickly fail.
DANGER:
RISK OF SEVERE INJURY
Wires connecting the battery must be placed
for correct polarity! If you are not 100% certain,
contact the factory before proceeding.
Wear safety glasses and use extreme caution to
prevent battery terminals from being shorted.
If the batteries become warm to the touch,
disconnect all battery terminals IMMEDIATELY
and contact the factory.
NOTE: IF YOUR LONG RANGER HAS A
TELESCOPING ANTENNA, THIS UPDATE MUST
BE DONE AT THE FACTORY.

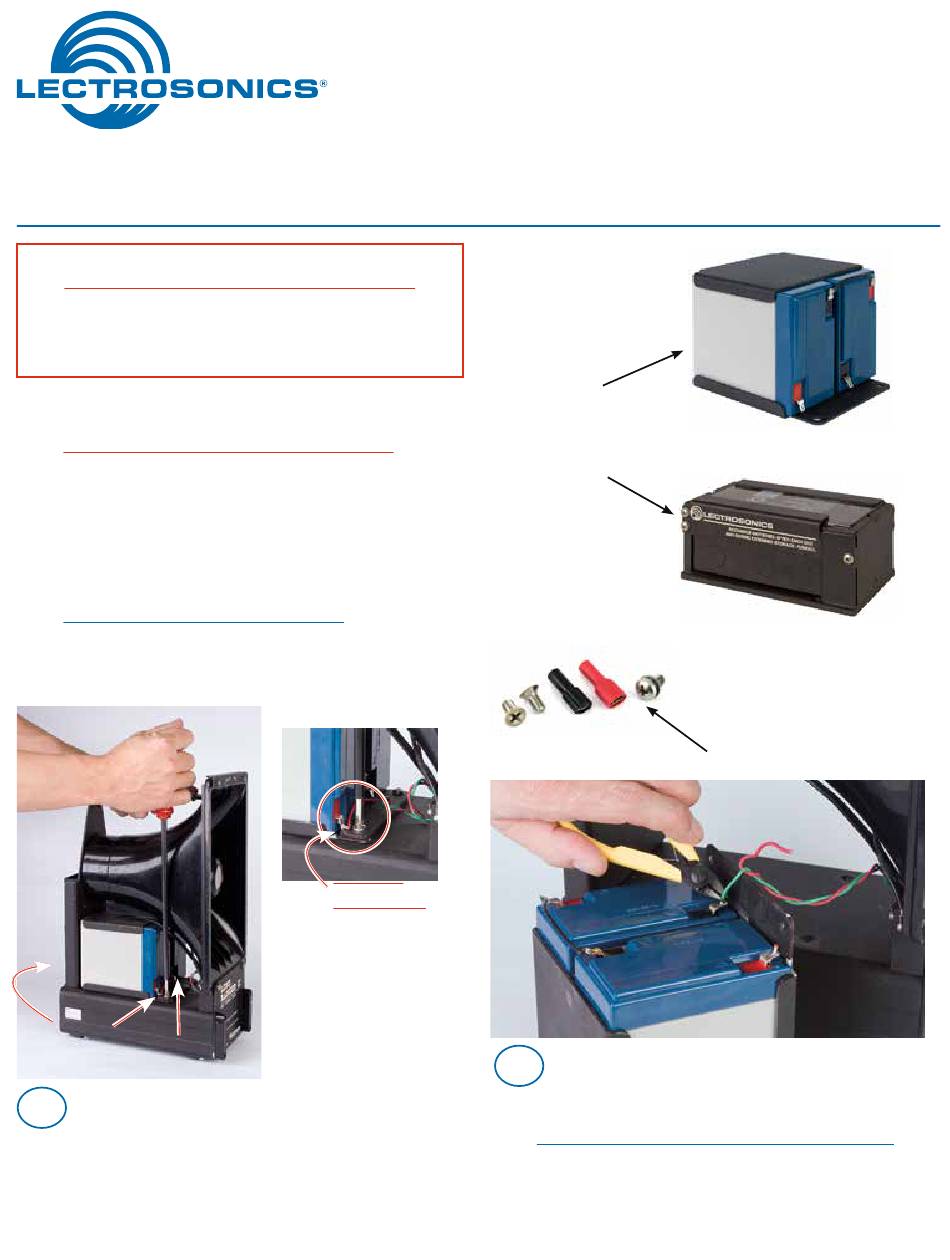

To remove the old battery pack remove the
1.
screws in front of the battery and the screw on
the rear upright panel of the chassis.
SB1001: Service Bulletin
Release: 3 Jan 2007
By:
581 Laser Road
Rio Rancho, NM, 87124
(505) 892-4501
web:
Sales:
Service: service.repair@lectrosonics.com
Replace this
battery pack
with this one.
CAUTION
Do not short
the battery
terminals to
the screws or
chassis while
removing the
battery pack.
2.
Bruce Jones
www.lectrosonics.com
sales@lectrosonics.com
LRIII-MB0R
Remove the battery assembly and cut the wires
as close as possible to the negative and positive
battery terminals (leaving the wires as long as
possible).
NOTE: DISPOSE OF OLD BATTERIES PROPERLY.
CHECK FOR LOCAL RECYCLER OR RETURN TO
THE FACTORY

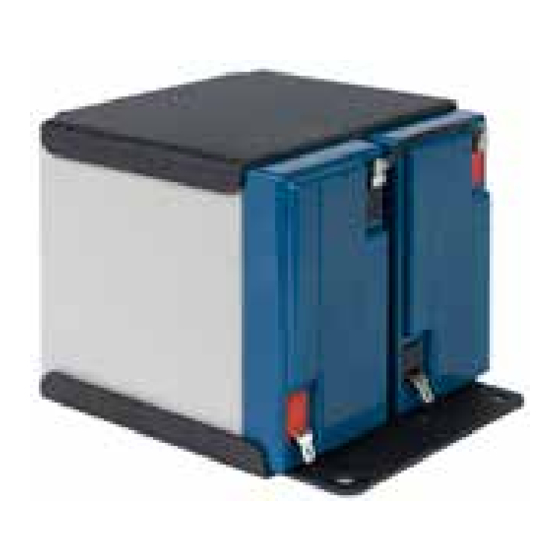

LRIII-MB
Included with LRIII-MB0R
replacement battery
Advertisement
Summary of Contents for Lectronics Long Ranger LRIII-MB
- Page 1 SB1001: Service Bulletin Release: 3 Jan 2007 Bruce Jones 581 Laser Road Rio Rancho, NM, 87124 (505) 892-4501 web: www.lectrosonics.com Sales: sales@lectrosonics.com Long Ranger Battery Pack Update Service: service.repair@lectrosonics.com CAUTION: Replace battery only with Lectrosonics Part No. “LRIIIBATT”. Due to the fast charge circuitry, you must use this specific battery.
- Page 2 Remove the terminal cover and the retaining bracket from the new battery assembly. Strip the insulation back approximately 1/8 inch and twist the bare strands for easier insertion into terminals as shown in step 4. Insert wires into the terminals and crimp them firmly with a crimping tool.
- Page 3 Slide the new battery into the mounting bracket as Attach the terminal cover as shown. The screw shown. Keep the wiring connectors from touching secures the terminal cover and the battery retainer the battery terminals while installing the battery. to the mounting bracket. Attach the battery retainer to mounting bracket with two screws as shown.
- Page 4 Filename: M-LRIII-MB0R...
