The iBoot-Exp is a remote controlled power On / Off
switch. It is designed to be controlled by
Dataprobe's iBoot-G2+ Web Enabled Power Switch,
as an expansion unit.
iBoot-Exp handles worldwide power from 105-
240VAC. It is capable of switching up to 12 Amps
at 120VAC and 10 Amps at 220 VAC.
Two iBoot-Exp units can be connected and
independently controlled by the iBoot-G2+. For
complete information, refer to the documentation for
the iBoot-G2+.
2.1.
Connect iBoot-G2+
iBoot-G2+ has two Expansion Ports, Exp1 and Exp2 for connection to iBoot-Exp, Connections to the iBoot-Exp are
made using screw terminal blocks.
The screw terminal blocks are on removable connectors for easy cable fabrication. A suitable cable is supplied with
the iBoot-EXP. See Specification below for additional connection information.
iBoot-G2+
iBoot-Exp
V+
+12 Volts Out
V+
I
Control Input
O
G
Ground
G
O
Control Output
I
1. General Description
2. Connections
Function
+12 Volts In
Power. iBoot-G2 to iBoot-Exp
Control Output
Status. iBoot-Exp to iBoot-G2+
Ground
Common Ground
Control Input
Control. iBoot-G2+ to iBoot-Exp

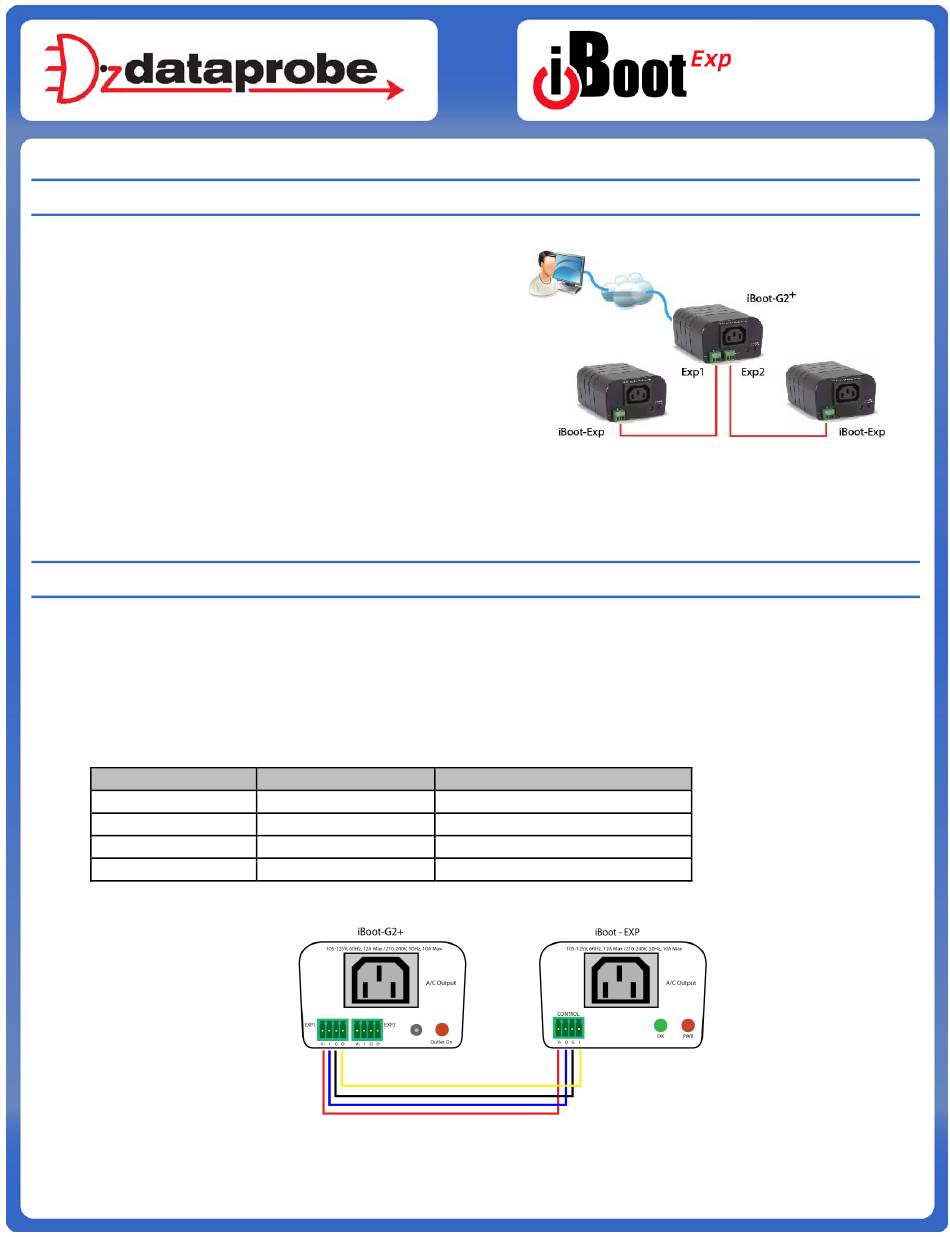

Fig. 2 iBoot Expansion Wiring
Expansion
Module for iBoot
Fig. 1 iBoot Expansion

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iBoot-Exp and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dataprobe iBoot-Exp

  • Page 1 2.1. Connect iBoot-G2+ iBoot-G2+ has two Expansion Ports, Exp1 and Exp2 for connection to iBoot-Exp, Connections to the iBoot-Exp are made using screw terminal blocks. The screw terminal blocks are on removable connectors for easy cable fabrication. A suitable cable is supplied with the iBoot-EXP.
  • Page 2: Led Indicators

    3. LED Indicators The iBoot-EXP had two LED indicators. OK - Green No Power Connection from iBoot-G2+ or 12VDC Power to drive the iBoot-EXP is connected. source. The PWR LED is not indicative of the Power outlet status PWR - Red...
  • Page 3: Mounting Options

    Step 2 3. The unit is 3. Ready for ready for wall DIN rail mounting. mounting. 4. Use M3 or #4 screws (not included) for attachment to suitable surface V100921e iBoot-EXP Page 3...
  • Page 4: Specifications

    Do not allow anything to rest on the power cord. Do not locate this product where the 16. Do not exceed the maximum output rating of the auxiliary power receptacle cord will be abused by persons walking on it. Save These Instructions V100921e iBoot-EXP Page 4...
  • Page 5 Service under this Warranty is obtained by shipping the product (with all charges prepaid) to an authorized service center. Seller will pay return shipping charges. Call Dataprobe Technical Service at (201) 934-5111 to receive a Return Materials Authorization (RMA) Number prior to sending any equipment back for repair. Include all cables, power supplies and proof of purchase with shipment.
