S508 26" Electric Bicycle

MONSTERPRO

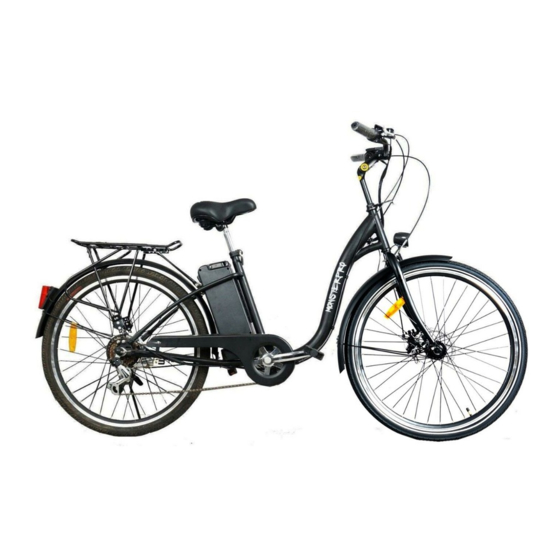

MONSTERPRO S508 (Disc Brakes)

26" Electric Bike

User Manual

[Revision 3.0 OCT 2019]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID

WARRANTY.

KEEP THIS MANUAL FOR FUTURE REFERENCE.

PRODUCTS COVERED BY THIS MANUAL MAY VARY IN APPEARANCE, ASSEMBLY, INCLUSIONS, SPECIFICATIONS, DESCRIPTION

AND PACKAGING.

Table of Contents

Need help?

Do you have a question about the S508 and is the answer not in the manual?

Questions and answers

Summary of Contents for MONSTERPRO S508

Page 1 S508 26” Electric Bicycle MONSTERPRO MONSTERPRO S508 (Disc Brakes) 26” Electric Bike User Manual [Revision 3.0 OCT 2019] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. KEEP THIS MANUAL FOR FUTURE REFERENCE.
Page 2: Safety And Warning
S508 26” Electric Bicycle Safety & Warning • Riding can be a hazardous activity. Certain conditions may cause the equipment to fail without fault of the manufacturer. The product can and is intended to move, and it is therefore possible to lose control, fall-off and/or get into dangerous situations that no amount of care, instruction or expertise can eliminate.
Page 3 S508 26” Electric Bicycle puddles. The controller, motor and other electrical devices may be short-circuited, causing damage and creating possible dangerous situations. • Never spray your bike directly and don’t get the electrical components wet (the battery connector, motor, controller, cables, handlebar controls, etc) •...
Page 4: Read The Manual
Note that the manual is not intended to be an extensive reference source for servicing, maintenance and/or repairs. For additional assistance, contact an authorised MONSTERPRO service centre. In the interests of your safety and the safety of others, it is highly recommended to have your bicycle assembled and serviced / adjusted by a skilled bicycle mechanic.
Page 5: Parts Identification And Assembly
S508 26” Electric Bicycle Parts Identification and Assembly Name Spanners & Allen keys Set Bicycle Assembly (Frame, Forks, Handlebar, Crank, Chain, Battery, Motor, Rear Wheel etc) Front Wheel Front Mudguard Rear Seat Rack Battery Charger Set Seat & Post Tools Required for Assembly The bicycle may come supplied with some tools.
Page 6 S508 26” Electric Bicycle Installation Video Guide is available at https://youtu.be/23bIoH8_G04 Handlebars Carefully place the bicycle assembly on a flat surface so that it rests on the front fork and rear wheel. Place and slide the handlebar assembly centrally into position in the clamp, rotate the handlebar assembly, as required, so it is aligned "square"...
Page 7 S508 26” Electric Bicycle Front Wheel & Disc Brake The front disc rotor has been installed on the front wheel by manufacture. Install the wheel by positioning the rotor between the brake pads and fixing the wheel in the dropouts.
Page 8 S508 26” Electric Bicycle Front Mudguard & Headlight Attach the mudguard and headlight’s mount stay to the lower of the twin fork blade mounts, using both a small and large washer centre the guard and, tighten from the hex key end.
Page 10: Operation
S508 26” Electric Bicycle Operation Before riding, ensure that all required fasteners are tightened to the correct torque and charge the battery prior to use. Always wear a helmet and appropriate safety equipment and always keep both hands on the handlebars and both feet on the pedals whilst riding.
Page 12 S508 26” Electric Bicycle The bike is equipped with an LCD display. Before riding turn on the LCD display by holding the“B” button. You can then press the “A” or “C” button to adjust the level of electronic assistance. The levels range from “1” to “5”.
Page 13: Riding Instructions
S508 26” Electric Bicycle Riding Instructions Check before riding it for the first time: The bicycle was assembled and checked before leaving the factory, nevertheless, before using for the first time, check the unit thoroughly. • First, check to see whether the battery is fully charged and locked.
Page 14: Using Gears
S508 26” Electric Bicycle Using Gears Some model bicycles are equipped with gears. Gears are used to change the ratio between rotations of the rear wheel and the crank set. This enables you to pedal less and travel faster on flat or downhill sections, or pedal faster and travel slower to climb hills.
Page 15: Using Brakes
S508 26” Electric Bicycle Using Brakes All bicycle models are equipped with a front and rear wheel braking system. Brakes are used to slow the bicycle down. The braking systems may use different mechanics, however, the functionality is the same, and that is to change the energy of the moving bicycle into heat energy ("friction"):...
Page 16: Batteries And Battery Charging
S508 26” Electric Bicycle Batteries and Battery Charging Before charging, you must turn the power switch to “OFF” and pull out the key. Keep the charger in a dry and ventilated condition when it’s working. • Firstly, connect the output plug of the charger with the socket of the battery case properly, and then insert the input plug into the electrical outlet.
Page 17: Battery Storage
S508 26” Electric Bicycle Battery Storage When storing the batteries for a long period of time: Charge the batteries at least every 30 days to avoid capacity loss. Batteries slowly self-discharge when unused over a long period. If the battery cells are left at a critically low charge state, the lifespan and capacity will be permanently reduced.
Page 18: Maintenance
S508 26” Electric Bicycle Maintenance ATTENTION: Before carrying out any sort of maintenance, turn off the power switch and remove the ignition key. Do some test riding and check the unit is riding normally and safely. Always keep your bike clean. For the battery poles, when dirty, clean them top prevent reduced efficiency or burnt poles.
Page 19 S508 26” Electric Bicycle For safety, longest possible service life and reliability, maintain the bicycle properly. Use the maintenance schedule below for guidance. It is very important that you check certain systems and components before each and every ride. The proper condition and function of these systems is critical to your safety.
Page 20: Troubleshooting
S508 26” Electric Bicycle Troubleshooting Malfunction Possible Cause Possible Solution Pedal assistance not Under-charged battery. Charge battery. Follow battery care procedures. working Battery no longer serviceable. Have battery checked. Replace if faulty. Battery charger faulty. Have charger checked. Replace if faulty.
Page 21 S508 26” Electric Bicycle Front forks or frame bent. Straighten. Motor "clicks" / has Under-charged battery. Charge battery. Follow battery care procedures. reduced power and/or Motor internal fault. Replace. shuts off No power when pedal Blown fuse. Replace. assistance switched ON Loose connectors / wiring damage.
Page 22 If you have any questions regarding any issues with your electric bicycle, please contact our Customer Support team on 03 9931 1626 or info@monsterpro.com.au ©2019 MONSTEPRO. All rights reserved. No part of this document, including...
Page 23 Misused, abused or neglected • Rented, for commercial use, sold or given away Monsterpro will not be liable for incidental or consequential loss or damage due directly or indirectly from use of this product. Warranty and Repair Claim To claim your warranty, please provide proof of purchase and contact us via email or phone listed below.
