- Page 1 PRECITEC® POLYTEC POLISHING MACHINES User manual MSA23.000 - MSA23.001 - MSA23.002 SWISS MARKET EXPORT MARKET Horotec SA Horotec SA Avenue Léopold-Robert 105b Avenue Léopold-Robert 105b CH-2300 La Chaux-de-Fonds CH-2300 La Chaux-de-Fonds Switzerland Switzerland Tel. : +41 32 925 95 95 Tel.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION 2. SAFETY INSTRUCTIONS 3. TECHNICAL DATA TECHNICAL INFORMATION SPEED TABLE DEVICE SUMMARY SCOPE OF DELIVERY 4. BEFORE RUNNING 5. USING LIGHTING VACUUM SYSTEM POLISHING MOTOR FILTER SYSTEM 5.4.1 INSTALLATION OF FILTER SYSTEM 5.4.2 FILTER SYSTEM CLEANING 6. -
Page 3: Introduction
INTRODUCTION Our product, POLYTEC POLISHING MACHINE, is a newly developed product with superior technical features and differentiates from other devices in numerous points. Device made an impression with its modern and ergonomic design. This device is developed with the idea of PERFORMANCE THROUGH DURABLE AND COMPACT DEVICE DESIGN. -
Page 4: Safety Instructions
15. Spare parts must be compatible with the requirements specified by manufacturer. Warranty can only be provided when original spare parts of HOROTEC SA are used. 16. Operations to be performed on or with the device must only be executed by qualified, trained and specifically assigned personnel. -
Page 5: Technical Data
TECHNICAL DATA 3.1 TECHNICAL INFORMATION Product number MSA23.000 ; MSA23.001 ; MSA23.002 Motor supply 230 V / 50 Hz Motor power 0,55 kW Speed RPM 3000 - MSA23.000 ; 300…3000 adjustable - MSA23.002 ; 1500/3000 - MSA23.001 Vacuum 750 m3 / hour Lighting 4x 9 LED 1600 Lumen Brush diameter... -
Page 6: Device Summary

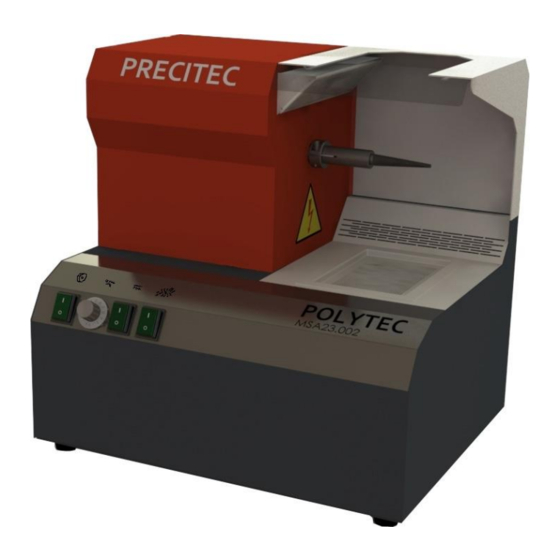

3.3 DEVICE SUMMARY 1) LED Lighting 2) Plexiglass face protection 3) Safety cover 4) Tapered polishing adaptor 5) Control panel 6) Safety switch 7) Z-Line cartridge filter 8) Filter protection filter 9) Fibre filter 10) Filter cover plate 11) Vacuum grid 3.4 SCOPE OF DELIVERY MSA23.000 / MSA23.002 Ready for installation... -
Page 7: Before Running
BEFORE RUNNING Check the package whether it is damaged from outside before opening the product package. Open cardboard, remove protective papers and foam casts. First, take the cardboard containing accessories packed separately. These are : - Fibre filter - Z-Line cartridge filter - Power cable Then carefully take the device and remove foam cast beneath. -
Page 8: Using
USING We kindly request you to check the buttons on control panel and try to learn the device. MSA23.002 MSA23.000 MSA23.001 Button 1 Power on/off button for polishing motor (and 1500/3000 revolution select button for MSA23.001) Button 2 Potentiometer to adjust number of revolutions (only for MSA23.002) Button 3 Lighting Button 4... -
Page 9: Vacuum System
VACUUM SYSTEM Press button no. 4 on control panel to run the vacuum system. Ventilation system does not require maintenance and its major features are its longevity and silent operation. Important! Failures and damages are only suitable to be repaired by manufacturer BALKAN MOTOR A.Ş. otherwise all warranty and liability insurances shall be removed. -
Page 10: Filter System
Important! Failures and damages are only suitable to be repaired by HOROTEC SA. Otherwise all warranty and liability insurances shall be removed. FILTER SYSTEM 5.4.1... -
Page 11: Filter System Cleaning
Filter material is produced in accordance with current occupational safety and disposal regulations and meets relevant requirements. Ensure that filters are placed correctly in accordance with the photo in the previous page. 5.4.2 FILTER SYSTEM CLEANING Remove vacuum grid (front filter) and clean by removing coarse dirt and dust. In case the net is torn, it is recommended to change it. -
Page 12: Replacing Fuses
We kindly request that the device is unplugged during installation and equipping, or equipment change and pay attention that green switches are in "position zero". Filter material we use are harmless in terms of health and ecology, silicon-free, fully flammable, can be heated up to 80°... -
Page 13: Disposal
HOROTEC SA has been a registered company for years and being aware of its responsibilities, every year ensures that all devices are registered. We are determined to do our best for minimizing recycling expenses and to deliver benefits, arising from this, to our clients and our society. -
Page 14: Spare Parts
SPARE PARTS MSA23.000-E MSA23.000-A RIGHT-SIDED TAPERED SPINDLE PLEXIGLAS PROTECTION MSA23.000-D GRINDING WHEEL HOLDER Ø 16 mm Ø inner brush : 50.80 mm Brush width : 20-40 mm MSA23.000-B MSA23.000-C FIBRE FILTER CARTRIDGE FILTER Polishing machines POLYTEC by PRECITEC® / MSA23.000 - MSA23.001 - MSA23.002 / User manual...
