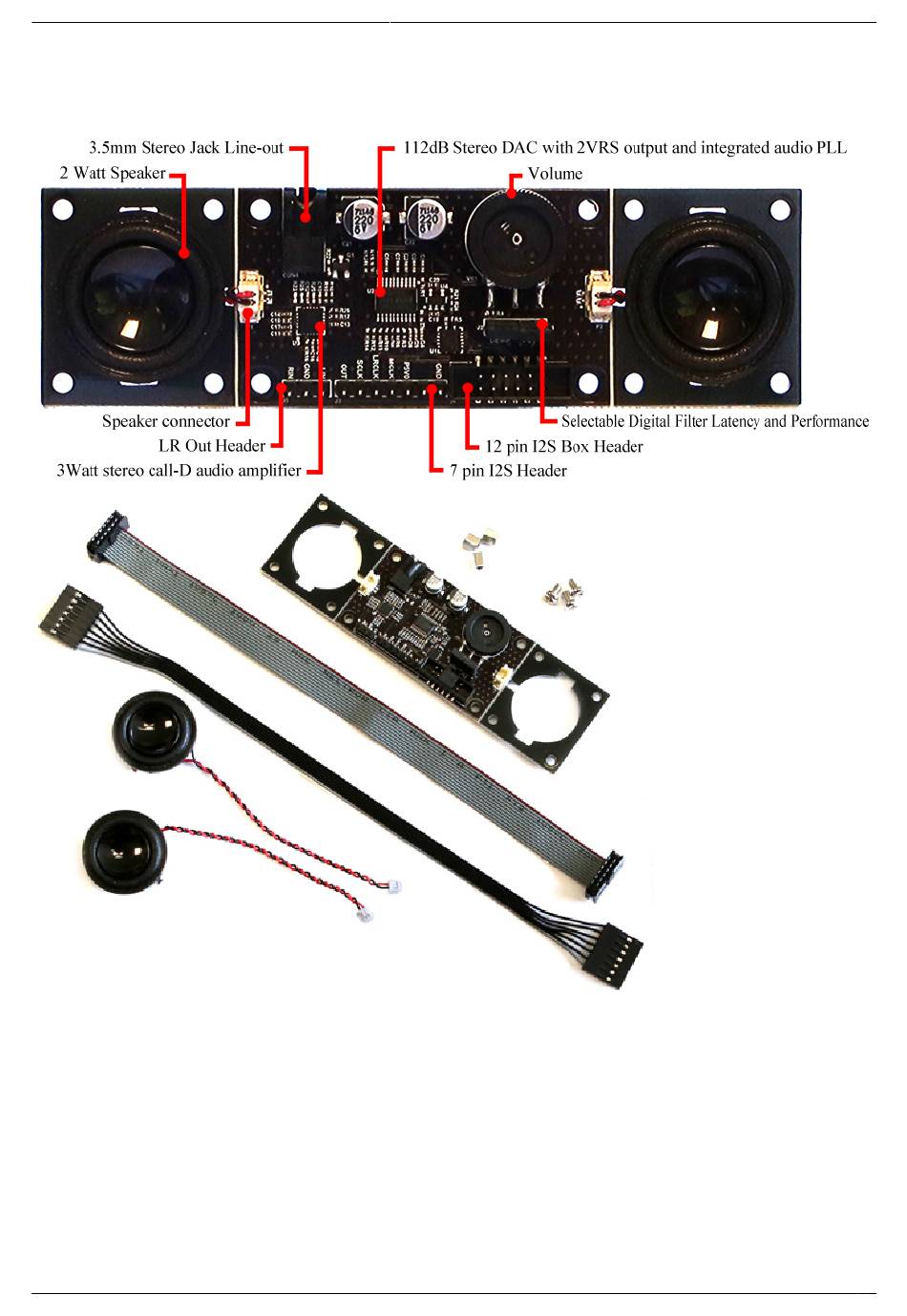

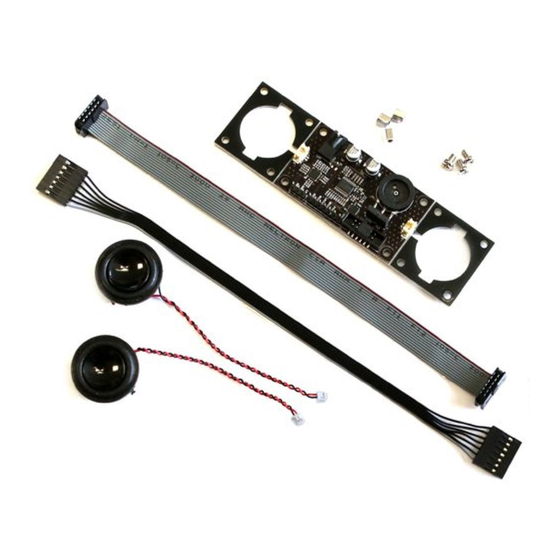

- Page 1 2020/06/06 20:29 Stereo Boom Bonnet Stereo Boom Bonnet ODROID Wiki - http://wiki.odroid.com/...
- Page 2 Last update: 2020/04/23 08:57 accessory:sound:stereo_boom_bonnet http://wiki.odroid.com/accessory/sound/stereo_boom_bonnet Speaker separation Example http://wiki.odroid.com/ Printed on 2020/06/06 20:29...
- Page 3 Quick installation guide to enable the I2S audio output on Ubuntu. ODROID-C1+/C2 Connect t he stereo boom bonnet t o ODROID-C1+/ C 2 using an I2S cable, attach a USB keyboard, USB mouse and HDMI monitor, then power up the system. Update the System: sudo apt update &&...
- Page 4 Last update: 2020/04/23 08:57 accessory:sound:stereo_boom_bonnet http://wiki.odroid.com/accessory/sound/stereo_boom_bonnet card 1: ODROIDDAC [ODROID-DAC], device : I2S.27 pcm5102- Subdevices: Subdevice #0: subdevice #0 odroid@odroid64:~$ Applications → Sound & Video → Sound → Hardware Tab & Output Tab select “ODROID-DAC” If you have to load the driver every time whenever your ODROID-C1+/C2 starts, simply you can by registering the driver into /etc/modules odroid@odroid64:~$ Password:...
- Page 5 /etc/pulse/default.pa ODROID-C4 Connect t he stereo boom bonnet t o ODROID-C4 using an I2S cable, attach a USB keyboard/mouse and HDMI monitor, then power up the system. To enable the sound card, you need to modify the DT(Device Tree) file.
- Page 6 Last update: 2020/04/23 08:57 accessory:sound:stereo_boom_bonnet http://wiki.odroid.com/accessory/sound/stereo_boom_bonnet root@odroid:~$ fdtget /media/boot/meson64_odroidc4.dtb /odroid_hifi status okay root@odroid:~$ reboot You can see that the sound card is enabled. root@odroid:~$ aplay **** List of PLAYBACK Hardware Devices **** card : ODROIDHDMI [ODROID-HDMI], device : SPDIF-dit-hifi dit-hifi- Subdevices: Subdevice #0: subdevice #0...
- Page 7 2020/06/06 20:29 Stereo Boom Bonnet Adding a RCA Line-out example schematics Stereo Boom Bonnet support Android supports only 44.1.Khz/16bit output. BLOCK DIAGRAM ODROID Wiki - http://wiki.odroid.com/...
- Page 8 Last update: 2020/04/23 08:57 accessory:sound:stereo_boom_bonnet http://wiki.odroid.com/accessory/sound/stereo_boom_bonnet Schematic Stereo Boom Bonnet full schematics Power consumption 1Khz sine wave playback Full scale with sound clipping : 6 Watt Lowering output volume to minimize the clipping : 2 Watt Pop-up noise Speakers don't generate pop-up noise in power on and off process.
