On-Q/Legrand lyriQ IS-0336 Instruction/Installation Sheet

301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
1. INTRODUCTION
The lyriQ™ Amplified Knob Volume Control with IR (P/N F7399-xx) receives a line-level audio
signal distributed from the lyriQ™ Single Source, Four Zone Distribution Module via Cat 5e
cable, amplifies the sound and delivers it directly to the speakers.
NOTE: This Volume Control is for use ONLY with lyriQ™ Single-Source Systems.
2. DESCRIPTION
The lyriQ™ Amplified Knob Volume Control with IR has a rotary knob for volume control and
an IR target for remote control of audio equipment at the entertainment center (see Figure 1).
It is available in White (-WH), Light Almond (-LA) and Ivory (-IV). The Volume Control is
terminated with Cat 5e cable using a 110 style punchdown block located on the rear of the
Volume Control (see Figure 2).
3. IMPORTANT SAFETY PRECAUTIONS
Read all instructions carefully before installing any component of the lyriQ™ Audio System.
• Do not attempt to service, move or change any component of this system unless you are qualified to do so.
• This system should be installed by a qualified installer and must conform to all local building and electrical codes.
• Do not apply power to the lyriQ™ Audio System until all components have been installed and all wiring has been
properly terminated.
• Do not attempt to terminate, change or un-install any wiring without first turning off power at the lyriQ™ Distribution
Module which is located in the enclosure. Unplug the power transformer that is powering the lyriQ™ Distribution
Module from the power outlet before proceeding with wiring terminations or changes.
• Install each component of this system away from heat sources such as HVAC ducts/registers or stoves.
• Do not expose any component that was designed for indoor use to moisture. Doing so can create electrical
hazards or render the component unusable. Exposure to moisture will also void the warranty on the system.
• Only use a damp cloth to clean the cover plates of the system components. Do not use vacuum cleaners, liquid or
aerosol cleaners.
©Copyright 2008 by On-Q/Legrand All Rights Reserved.

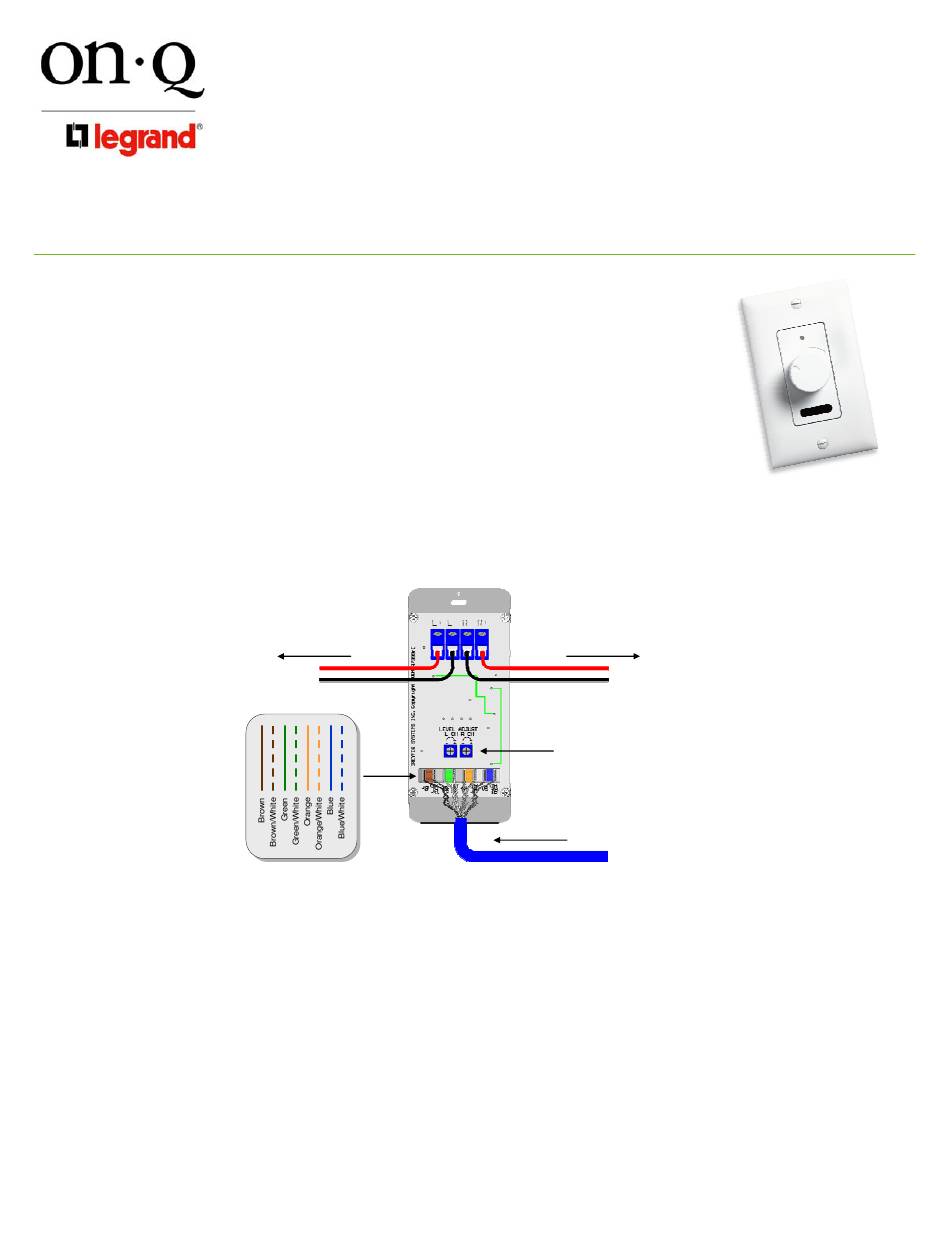

INSTRUCTION / INSTALLATION SHEET
lyriQ™ Amplified Knob Volume
Control with IR
Volume Control Connections
To Left Speaker
Cat 5e Wire Order
Figure 2
To Right Speaker
Volume Trim Adjustments
In from lyriQ™ Audio System
IS-0336 REV. A
Figure 1
Page 1 of 2
