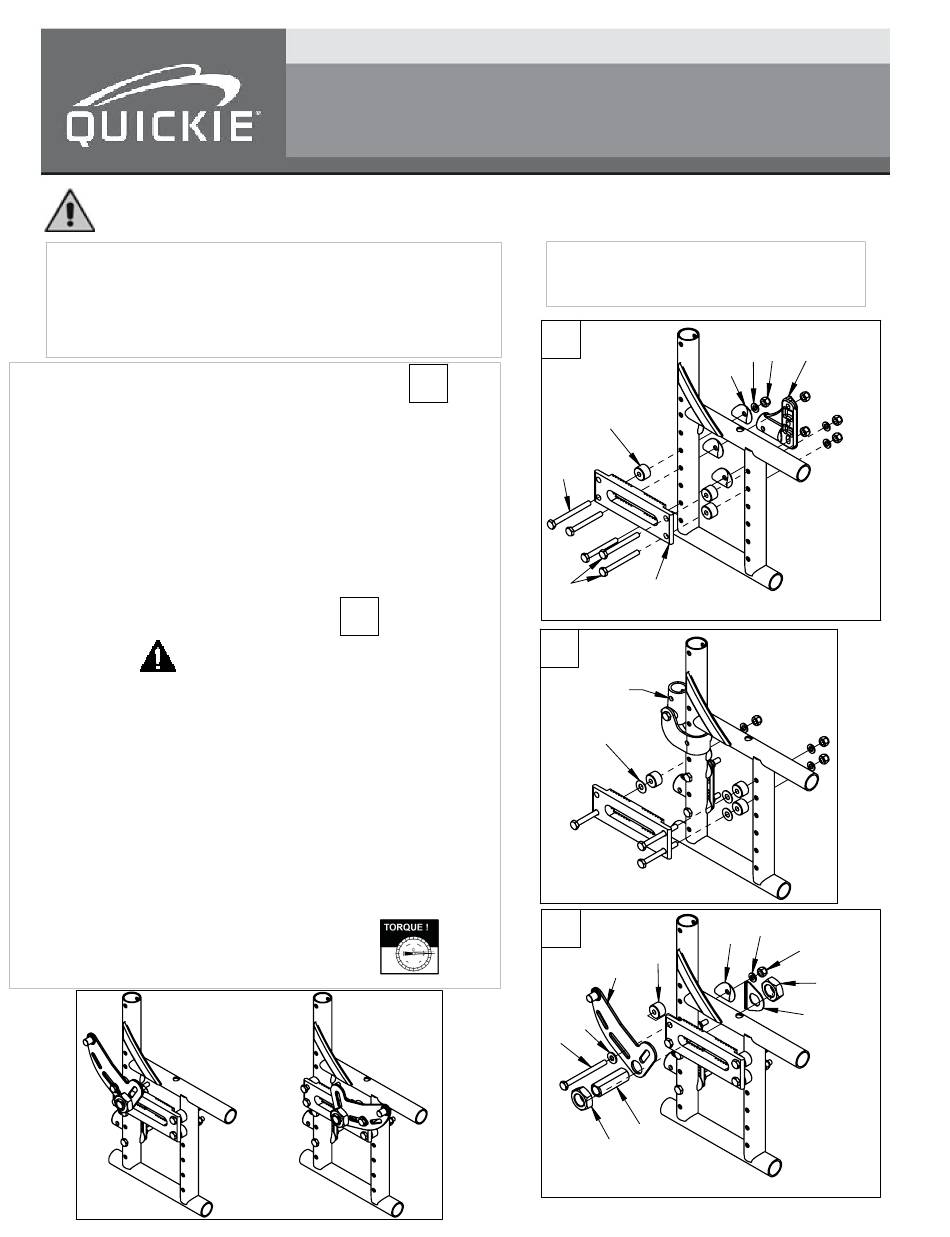

Sunrise QUICKIE Q2 Installation Instructions

Please read these instructions carefully before beginning the installation. Failure to understand and
follow installation instructions may result in injury to installer and/or end user and may void the warranty.
If you have any questions call Sunrise Medical Technical support at 800-333-4000.

Xtender Mounting parts:

1. 4 ea Large black hex nut
2. 2 ea Index axle washer
3. 2 ea Clamp bracket
4. 2 ea Large washer
5. 2 ea 3" Hex bolt
6. 2 ea 2-3/4" Hex bolt

A. Install Axle Plate and Anti-tip Receiver

Using either the curved or standard axle plate:
1. Assemble and attach both axle plates (left and right) to the
chair frame making sure to use the spacers and hex bolts as
shown. Leave loose.
2. Use the shorter 2-1/4" hex bolts (7) and spacers to attach
the axle plate to the frame. Attach the nuts and washers at
the front of the chair as shown. Leave loose.
3. Hex bolt (6), 2-3/4", goes into the bottom rear position as
shown in, figure 1. Leave loose.
4. Make sure that the anti-tip receiver is mounted on the inside
of the frame.
5. For chairs with a Flip-back armrest plastic wahsers (13) will need
to be added between the spacer and axle plate, figure 1a.

B. Mounting the Extender Bracket

Warning
Attention dealers and qualified technicians, make sure that the
axle placement and center of gravity of the chair is in the same
location as it was before the installation. Clamp bracket can be
installed in either standard or alternate position.
This installation is the same for either standard or curved axle
plates.
Install axle sleeves:
1. Install hex bolt (5) through washer (4), clamp bracket (3), top
hole of axleplate, and spacer (9). Attach with washer and nut.
Leave loose.
2. Install axle sleeve nut (1) to the axle sleeve (8).
3. Install the assembly through the clamp bracket and then the
axle plate slot.
4. On back side, place index washer (2) and axle sleeve nut (1)
on axle sleeve. Hand tighten the nuts.
5. Tighten axle plate nuts.
6. Tighten axle sleeve nuts.
7. Torque axle sleeve nuts to 30 ft-lbs and screws
to 85 in-lbs.
8. Repeat steps for opposite side.
Standard
position
XTENDER KIT INSTALLATION INSTRUCTIONS (Q2)
7. 4 ea 2-1/2" Hex bolt
8. 2 ea Axle sleeve
9. 8 ea Spacer
10. 8 ea Small washer
11. 8 ea Nylock nut
12. 4 ea Saddle
13. 6 ea Plastic washer
1
2
Alternate
position

Tools needed:

1. 5mm hex key 4. 2ea 7/6" wrench
2. 12mm wrench 5. Socket wrench
3. 19mm wrench 6. 7/16" Socket
1
12
9
6
Axle plate
7
Parts not listed are included with chair
1a
Flip-back
armrest
receiver
13
2
12
9
3
4
5
8
1
Part #3 is included with Yamaha Xender kit
11 Anti-tip
10
receiver
10
11
1
2
