GSOC Universal Control/Data Terminal
Operation Manual
Temporary file: 1.1
Dongguan Weisheng Communication Technology Co., Ltd.
5F, Building C, Futai High-tech Park, No. 8, South Qingfeng Road, Keyuan City, Tangxia
Town, Dongguan City, Guangdong Province (523723)
Advertisement
Table of Contents
Related Manuals for XIEGU GSOC
Summary of Contents for XIEGU GSOC

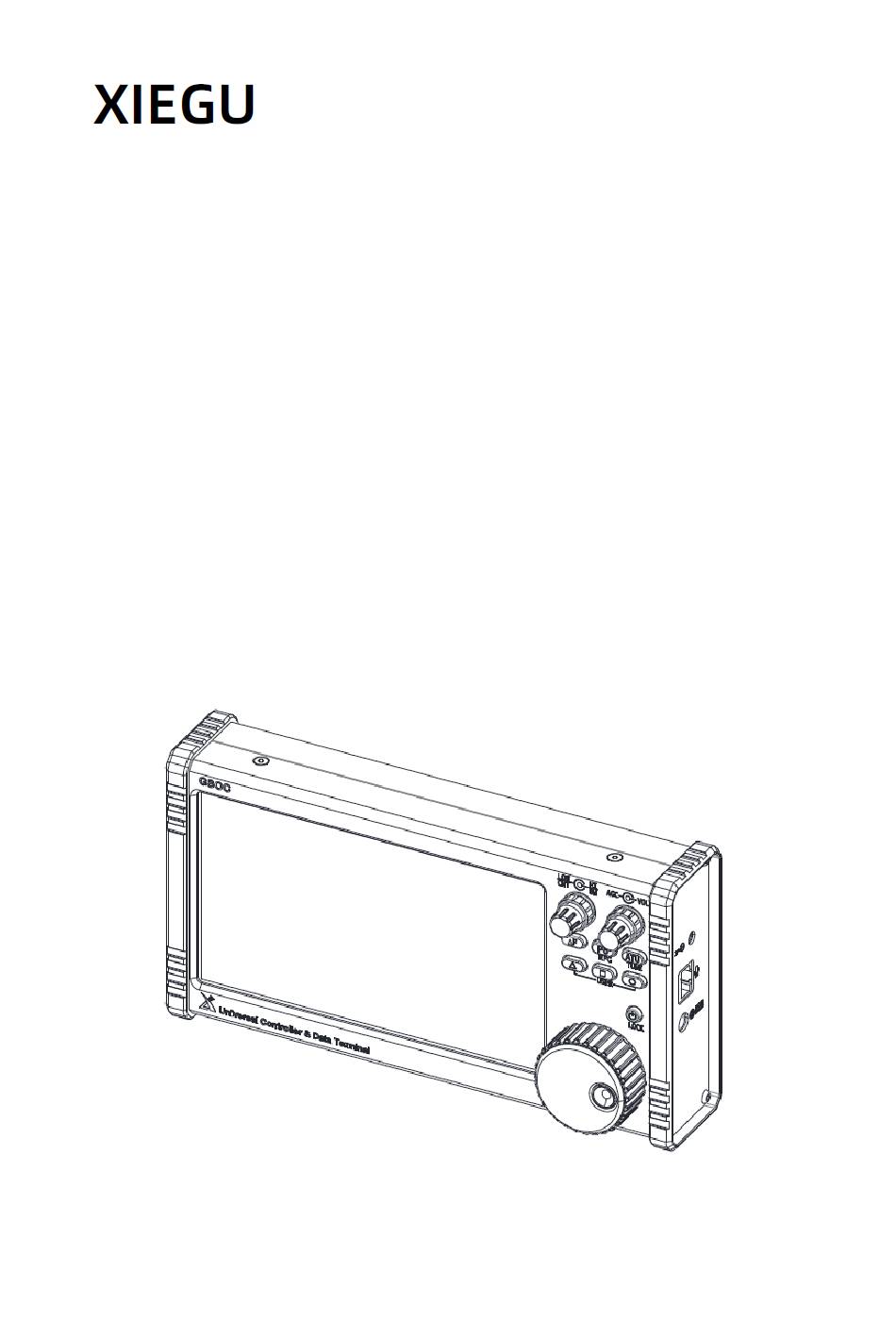

- Page 1 GSOC Universal Control/Data Terminal Operation Manual Temporary file: 1.1 Dongguan Weisheng Communication Technology Co., Ltd. 5F, Building C, Futai High-tech Park, No. 8, South Qingfeng Road, Keyuan City, Tangxia Town, Dongguan City, Guangdong Province (523723)
- Page 2 GSOC consists of a baseband processing unit and an SDR receiving unit, which is capable of receiving and processing IF signals and IQ signals and finally displaying relevant contents (such as frequency spectrum, waterfall plot and demodulation information) after 24bit-ADC sampling and processing.
- Page 3 Specification Parameter Parameter Specification Applicable model: X5105、G90、G90S Operating temperature scope: 0°C ~ +50°C Frequency stability: ±1.5ppm in the 10~60min after startup @25°C: 1ppm/hour Supply voltage: 10.5~16.5VDC, negative electrode grounding Current consumption: 600mA @ Max Display screen resolution: 1024*600 Touch screen type: Capacitive Spectral sensitivity: -120dBm ±...
- Page 4 Packing List Packing List: GSOC host : 1 pc. Power line : 1 pc. Stereo antithetical connection : 1 pc. wire Warranty card : 1 pc. Certificate of conformity : 1 pc. Quick operation manual : 1 pc.
- Page 5 Interface Definition Definition of Microphone Interface Wiring Diagram of Earphone/Speaker Plug Signal Signal Polarity Definition of Power Interface Positive Negative Note: The plug in the external speaker/earphone is a 2-core monophonic connector, ◆ which will cause a short circuit of the audio signal, resulting in silence. Direct use of the 2-core to 3-core connector can also cause short-circuit of the ◆...
- Page 6 Panel Keys ① Digital filter adjusting knob ● Inner ring: bandwidth mode filter adjustment ● Outer ring: central mode filter adjustment ② Volume/squelch adjustment knob ● Inner ring: volume adjustment ● Outer ring: squelch adjustment △F: press for RIT adjustment, and long press for XIT adjustment. ③...
- Page 7 Machine Interface ⑥ USB1 port ⑦ USB2 port ⑧ TF card slot...
- Page 8 Machine Interface ⑨ Intermediate frequency signal input port ⑩ Hand microphone interface ⑪ External power input Connector type: 5525, the inner core is positive and the outer ring is negative.
- Page 9 Power Supply Wiring 13.8V external DC power supply is available for GSOC controller. Attached power lines can be used to connect to equipment and DC power supply. DC power supply shall be connected in strict accordance with following figure to avoid reverse polarity connection.
- Page 10 Menu Function Tree Menu Primary Menu Secondary Menu Tertiary Menu Page SPAN: spectrum bandwidth selection Scope LEVEL: spectrum reference level regulation DISP: display color setting MODEM: modem interface T/REQ: transfer and receive EQ settings COMP: voice compression ON/OFF: switch NR: digital noise reduction Level: depth adjustment ON/OFF: switch Level: depth adjustment...
- Page 11 selection BACKLIGHT: screen backlight brightness adjustment SWR SCAN: standing-wave scanner Menu operation method: 1. By direct touch operation, touch the corresponding display area to enter the menu. 2. By external mouse operation, click the corresponding display area to enter the menu.
- Page 12 Interface Description VFO and mode display setting area On-line status indication Meter display area Status display area Spectrum display area Waterfall display area Screen Display Description When the menu operation is selected, click a certain function and a corresponding window will pop up for operation, as shown in the figure below: Submenu selection (1 of 1) represents that the current function has only one option.
- Page 13 Operation Basic Operation Method Frequency/Frequency Band Setting 1. Touch 100K~1Hz bits and the current bit will be selected. At this moment, turning the big knob or scroll the mouse wheel can adjust the frequency value. 2. When MHz bit is touched or clicked with the mouse, a frequency band switching/input frequency window will pop up, as shown in the figure below: Input frequency Exit window...
- Page 14 A/P: PRE, ATT switches AGC: AGC function button...
- Page 15 Operation Spectrum/Waterfall Reference Level Adjustment Click LEVEL menu, and the level adjustment window will pop up: FFT: spectrum reference level WF: waterfall reference level The default parameter is 0. The smaller the value (negative), the higher the sensitivity. The higher the value, the lower the sensitivity.
- Page 16 Flash Mode MODEM Interface Quick call, reply and closing Mode Rate selection selection Receiving selection Sending window Carrier tracking window MODEM Interface Description After the keyboard is connected, it can enter the corresponding information in the sending window on the right. Click the setting button on the right to set the related information of this machine for a quick call.
- Page 17 On-line Description T/R EQ Setting Switch Zeroing Quit Pop-up Window of EQ Setting T/RX EQ SWAP: select RX and TX settings. The corresponding status will be displayed on the top of the pop-up window. Zero setting: set all EQ settings to zero. EQ switch: turn EQ on or off EQ is set into 6 sections: 125Hz, 250Hz, 500Hz, 1kHz, 2kHz and 4kHz.
- Page 18 1. Connect the power lines of G90/G90S and GSOC; 2. Connect GSOC with DB9 interface in the front of host with DB9 extension cable; 3. Connect the GSOC with the IQ port of host with 3.5 stereo antithetical connection wire; Front of G90/G90S host Schematic Diagram of Wiring with G90/G90S 1.
- Page 19 X5105. 2. After the MCX signal antithetical connection wire is connected, it needs to open IF Input option on the GSOC. 3. Once on-line, the keys on X5105 host will no longer control the host. All operations...
- Page 20 Flash Mode The purpose of this tutorial is to guide the user to create and execute a micro SD card that can be used to update GSOC firmware, and perform flash. Preparations: Prepare a micro SD card with a capacity ≥4GB.
- Page 21 Update process of GSOC: 3. Insert the prepared flash card into the card slot on the left of GSOC when the GSOC is turned off (not connecting DB9 cable or USB cable). When the GSOC is turned on, text prompt will appear and the system will be automatically updated without manual operation.
- Page 22 Factory Reset Factory Reset Not open yet...
