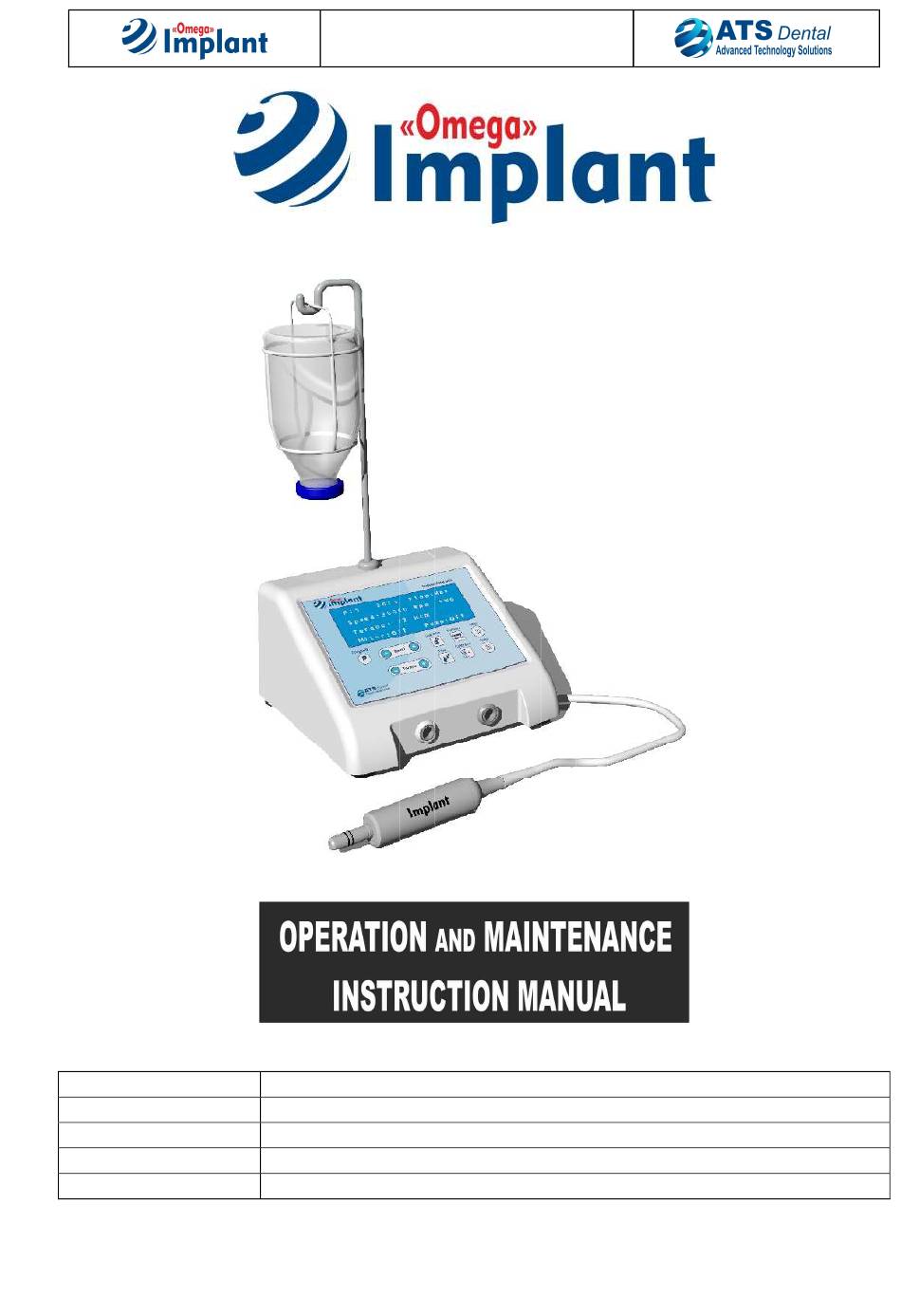

USER MANUAL Rev 1 April 2017

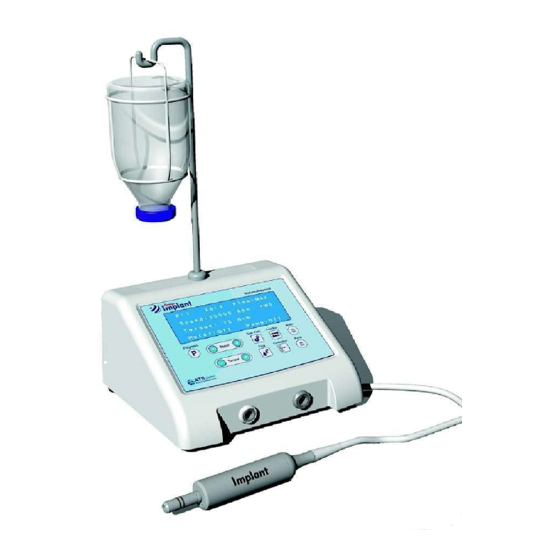

Omega Implant
Page 1 of 16
REF
Model
AOMG300DL "plus"
"Omega Implant Autoclavable Motor + DeLuxe Pedal + L.E.D. Light"
OMG300DL
"Omega Implant NOT Autoclavable Motor + DeLuxe Pedal"
OMG300S
"Omega Implant NOT Autoclavable Motor + Standard Pedal"
OMG300E
"Omega Implant NOT Autoclavable Motor + Easy Pedal"
Refer to the "REF" on the bottom to identify the model
ATS DENTAL srl – 51030 Serravalle Pistoiese – Italy – www.atsdental.it
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for ATS Omega Implant
- Page 1 USER MANUAL Rev 1 April 2017 Omega Implant Page 1 of 16 Model AOMG300DL “plus” “Omega Implant Autoclavable Motor + DeLuxe Pedal + L.E.D. Light” OMG300DL “Omega Implant NOT Autoclavable Motor + DeLuxe Pedal” OMG300S “Omega Implant NOT Autoclavable Motor + Standard Pedal”...
- Page 2 2.1 Purpose – Proper use: OMEGA IMPLANT is intended only for use in the field of dentistry, for surgery to expose and dissect oral tissue structures (such as the periodontal gap, gingival, bone, the jaw, extractions and implantations). The product may not be used for a purpose for which it was not intended.
- Page 3 The device should be stored in its original packaging in a safe place. Do not expose the device to water vapor, or splashes. The device is not designed to work near ionizing radiation. ATS DENTAL srl – 51030 Serravalle Pistoiese – Italy – www.atsdental.it...
-
Page 4: Electromagnetic Interferences
ICD. 2.3 Responsibility of the manufacturer The ATS Dental can only accept responsibility for the safety, reliability and performance of the OMEGA IMPLANT when there is compliance with the following directions: •... -
Page 5: Package Contents
USER MANUAL Rev 1 April 2017 Omega Implant Page 5 of 16 3. PACKAGE CONTENTS Model AOMG300DL “Omega Implant Autoclavable Motor + DeLuxe Pedal + L.E.D. Light” Electronic Control Console Micromotor Assembly Autoclavable Pedal “DeLuxe” Irrigation Bag Hanger Rod ... -
Page 6: Environmental And Transport Conditions
While inserting the plug, align the guide on the connector in an upright position to fit into the corresponding female guide on the OMEGA IMPLANT. Connectors have a spring retention system to help avoid accidentally disconnecting the unit's cords and cables. ATS DENTAL srl – 51030 Serravalle Pistoiese – Italy – www.atsdental.it... -
Page 7: Control Panel Functions
6. CONSOLE BACK REF: OMG300DL - OMG300S - OMG300E REF: AOMG300DL PUMP Switch ON/OFF LED Light MAIN I POWER On/Off PUMP Power Cord In MAIN POWER On/Off Power Cord In ATS DENTAL srl – 51030 Serravalle Pistoiese – Italy – www.atsdental.it... - Page 8 Connect the end of irrigation line to the contrangle. NB: Use only ATS DENTAL Tube. Do not run the pump without tube. Do not use coolant reservoirs that can hold more than 1 liter. Ensure that the device is standing securely. Use transparent coolant reservoirs ATS DENTAL srl –...
- Page 9 Calibration should be done before each surgical session or anytime the handpiece is changed or lubricated. OMEGA IMPLANT will store the operative parameters for each “program” as soon as the user sets them. They will be maintained in the memory even if the central unit is switched off. For each “program” it is possible to set: speed, torque, ratio, direction of rotation and flow.
-
Page 10: Programming The Unit
NaCl 0.9 (identified as an infusion solution; follow the instructions on the package insert) for cooling and spraying wounds. Not all autoclaves can reach 134° C. Not all autoclaves draw a pre-vacuum. Please refer to your autoclave manufacturer for specific sterilization instructions. ATS DENTAL srl – 51030 Serravalle Pistoiese – Italy – www.atsdental.it... -
Page 11: Maintenance
Life of the device: When used as prescribed = 5 years. No warranty claim may be made in the event that the failure happen sooner or later than indicated, because of the frequency of use, sterilization and maintenance. ATS DENTAL srl – 51030 Serravalle Pistoiese – Italy – www.atsdental.it... - Page 12 Problem: The pump stops suddenly Possible cause Solution •Pump damaged/blocked. Immediately discontinue use of the device and contact dealer, the authorized service •PCB damaged. center, or the manufacturer directly. ATS DENTAL srl – 51030 Serravalle Pistoiese – Italy – www.atsdental.it...
-
Page 13: Accompanying Documents
Omega Implant Page 13 of 16 15. ACCOMPANYING DOCUMENTS Electromagnetic emissions: OMEGA IMPLANT is intended for use in the electromagnetic environment specified below. The OMEGA IMPLANT should only be used in such an environment. RF emissions Group 1 OMEGA IMPLANT uses RF energy only for its internal function. Therefore, its RF... - Page 14 Recommended separation distance between portable and mobile RF communications equipment and the OMEGA IMPLANT The OMEGA IMPLANT is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the OMEGA IMPLANT can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the OMEGA IMPLANT as recommended below, according to the maximum output power of the communications equipment.
- Page 15 USER MANUAL Rev 1 April 2017 Omega Implant Page 15 of 16 NOTE ATS DENTAL srl – 51030 Serravalle Pistoiese – Italy – www.atsdental.it...
- Page 16 The proper implementation of the preparation process, as well as achieving the desired result, are full responsibility of the person performing the operation. ATS DENTAL SRL reserves the right to modify the present DFU without prior notice. Via Vecchia Provinciale Lucchese, 49/F - Loc. Masotti 51030 SERRAVALLE PISTOIESE (PT) - Italy Tel.: +39 0573 518137 –...
