Summary of Contents for Astor-Bannerman ABW6

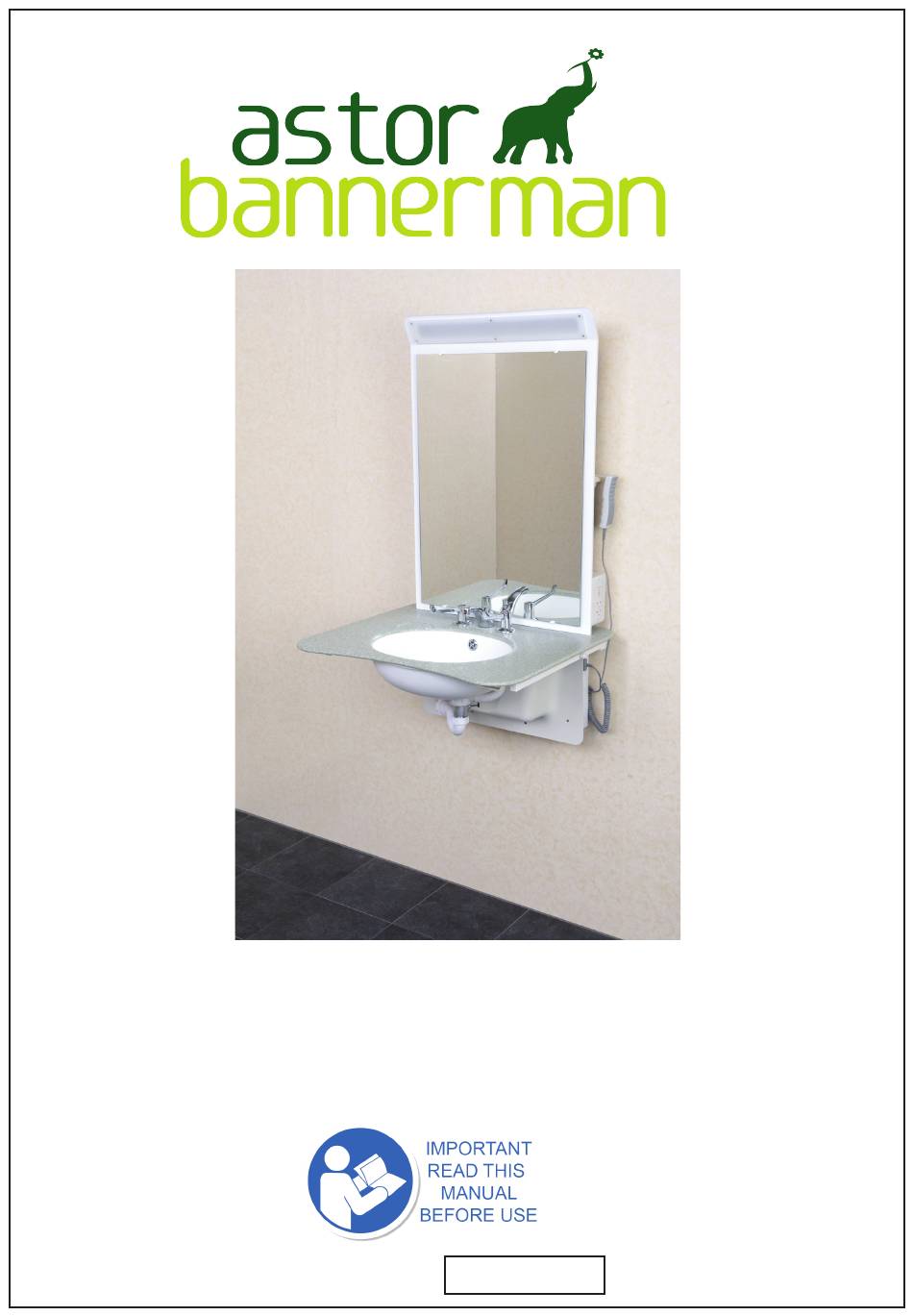

- Page 1 Height Adjustable Basin ABW6 OWNERS MANUAL & INSTALLATION GUIDE Warranty No...
-
Page 2: Operation
Operation Press and hold button Press and hold button to lower basin to raise basin Operation of the lever tap system In normal operation the levers should be facing forward, (towards the user) when off. To operate them, rotate the levers outwards to achieve the flow-rate required. To stop water flowing, rotate the levers until they are facing forward once again. -
Page 3: Troubleshooting
Depress the ‘Up’ button on the handset to gain clearance from the obstruction and then remove the obstruction. The rise & fall unit may then resume normal function. If the problem persists after carrying out these remedies, please contact Astor-Bannerman on the number on the back page: Page: 3 Version 3 : 01-04-016... -
Page 4: Technical Specification
Technical Specification. Duty cycle: 10%, Maximum min/18 min IP Rating: IP X4 Supply voltage: 30V ac Power 0.5KW Dry weights: 50Kg. A weighted sound emission<70dB(A) Contents of packages: 1 x rise and fall assembly. -
Page 5: Installation Information
80mm. Electrics: The ABW6 is supplied with mains electric (30v) and transformed to 4v within the unit. A battery backup is fitted as standard. A 30mA RCD protected fused spur is required, with flush mounted a flex outlet cover, on the wall behind the unit at a height of 1100mm from the floor on the centreline... - Page 6 Please Note: Due to the complexity of different building methods Astor Bannerman do not supply installation fixings and anchors. Important: The attachment rail is the main load bearing fixing; it is vital that it is secured correctly. • Measure 100mm up from the floor along the centre-line of the final position of the unit; using a spirit level, draw a horizontal line, either side of the centre line, at least 50mm long.
- Page 7 Test the Safety Switch mechanism on the arms works properly: • Operate the lowering function and then lift the right hand arm to ensure the motor cuts out. • Leave the mains voltage supply switched on as it will allow the batteries to charge. Assemble the Basin: •...
- Page 8 Touch tap control COLD SUPPLY SUPPLY Hoses Rear view • Ensure the free end of the supply hoses are passed through the recess in the bottom left hand side of the carcass of the rise and fall unit. Connect the end of the supply hoses with the Conex fitting to the tap connectors. Fit the tap levers: •...
- Page 9 into the rivet body. This will require a firm push, the mushroom is fully seated once the base of the mushroom head is flush with the cover. • If not already in place, fit the horizontal waste plug operating rod so that the opposite end from the ball passes through the lower slot in the plastic cover and then through the clamp on the vertical operating rod.
- Page 10 Page: 10 Version 3 : 01-04-016...
- Page 11 Page: 11 Version 3 : 01-04-016...
- Page 12 © 013 Astor Bannerman (Medical) Limited. Our policy is one of continuous development, and we therefore reserve the right to make technical alterations without notice. The content of this publication may not be copied either whole or in part without the consent of Astor Bannerman (Medical) Limited Astor Bannerman (Medical) Limited Unit 11f Coln Park, Andoversford, Cheltenham, GL54 4HJ E: sales@astorbannerman.co.uk...
