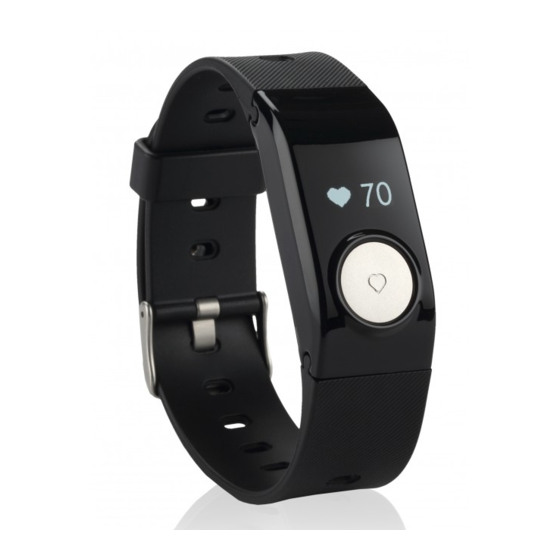

- Page 1 User Manual MiCor A100 Wearable ECG Recorder...
-
Page 2: Table Of Contents
Table of Contents Important safety instructions ....................2 Overview ..........................7 Checking the package contents ..................7 Getting to know your device ..................8 Charging the battery ....................9 Getting started.........................10 Activating the device ....................10 Putting on the device ....................10 Downloading the App ....................11 Setting the date and time ...................11 Operating basics ......................12 Changing the display mode ..................12 Recording ECG data ....................13... -
Page 3: Important Safety Instructions
Caution! Federal law restricts this device to sale by or on the order of a physician. CAUTION: MiCor A100 is MR-unsafe! Do not expose the device to a magnetic resonance CAUTION: MiCor A100 is MR-unsafe! Do not expose the device to a magnetic resonance ... - Page 4 Prolonged contact may contribute to skin irritation or allergies in some users. If you notice any signs of skin redness, swelling, itchiness, or other skin irritation, please discontinue. Continued use, even after symptoms subside, may result in renewed or increased irritation.
- Page 5 Substances in this device and its battery may harm the environment or cause injury if handled and disposed of improperly. Do not subject the device to excessive force, shock, dust, temperature changes, or humidity. Do not expose the unit to strong shocks or vibrations. ...
- Page 6 damaged by the electrostatic. Do not use in the presence of flammable anesthetics, drugs or pressurised oxygen (such as in a hyperbaric chamber, ultraviolet steriliser or oxygen tent). Do not take recordings in a location where the unit will be exposed to strong electromagnetic forces, such as near an arc welder, high-power radio transmitter, etc.
- Page 7 Disposal and recycling information The symbol on the device or its packaging signifies that this device must be disposed of separately from ordinary household wastes at its end of life. Please kindly be aware that it is your responsibility to dispose of electronic equipment at recycling centres to help conserve natural resources.
-
Page 8: Overview
Overview Thank you for purchasing a MioCARE product. This user manual guides you through the successful setup of your device and familiarises you with the basic skills of using the device. The device is the wristband as wearable style. It is smaller and light weight, dry electrode and affordable ECG recording device. -
Page 9: Getting To Know Your Device
Getting to know your device OLED screen Charging connector ECG sensor ECG sensor MODE button Straps... -
Page 10: Charging The Battery
Charging the battery Your device has an internal battery that may not be fully charged when you purchase it. It is recommended to charge the battery for about 1 hour before you start using the device for the very first time. Follow the instructions below to charge the battery. 1. -
Page 11: Getting Started
Getting started Activating the device Once the device is connected to the power supply after unpacking, the system activates automatically. Putting on the device Putting on the device is like wearing a watch around your wrist. Follow the instructions below to wrap the straps around your wrist and then secure it with the buckle. The device comes with a set of detachable straps that should be properly assembled before you use it. -
Page 12: Downloading The App
Downloading the App MiCor A100 App is a free App on the Apple Store. After downloading and installing the App on your phone, you can use it to change the device's settings, view the detailed electrocardiogram, save and manage the ECG data and more functions via your phone. -
Page 13: Operating Basics
Operating basics Changing the display mode Press the MODE button repeatedly to cycle through the display modes: Time & date > ECG data amount > Battery status. Time & date Press the MODE button once to wake up the system and display the current time for 3 seconds and then the date for 2 seconds. -
Page 14: Recording Ecg Data
Recording ECG data You can record and store up to 30 ECG data on the device. Follow the instructions to start recording ECG data. 1. Wear the device on your wrist properly. 2. Press the MODE button to wake up the system from Idle mode. 3. -
Page 15: Connecting The Device To Your Phone
Connecting the device to your phone Follow the instructions to connect the device to your phone via the App for the first time. 1. Download and install MiCor A100 App on your phone. 2. Make sure Bluetooth is activated and then launch the App. -
Page 16: Using The App
Using the App MiCor A100 App allows importing data from the device into your phone so that it can be examined and printed. This App features useful functions, such as changing of the scale and range of the ECG data, to better observe specific events which would be very helpful for doctor's reference. - Page 17 The ECG data list The ECG data list provides the general information including the User Name (as shown on the title bar) and recorded ECG data (sorted by date and time). From the ECG data list, you can do one of the following: ...
- Page 18 - While viewing the ECG trace, you can zoom in or out the waveform area by moving your fingertips apart or together on the screen. Spread to zoom in Pinch to zoom out Tap on the Note filed to take notes for the ECG data. ...
- Page 19 - Select Email to send the item by email. - Select Print to print it out. - Select Delete to delete the record.
-
Page 20: Setting Up The Profile
Setting up the profile Adding a user The App is designed for multiple users that means, for example, you can use the same App to manage individual ECG data of the family members or multiple patients by a doctor. 1. From the ECG data list, tap Menu ( ) to display the menu screen. -
Page 21: For More Information
For more information Support For initial support, contact your doctor or your local authorized dealer. Please regularly check the website https://autocloud.ibsalab.com/ for more information. Manufacturer MiTAC International Corp. No. 200, Wen Hua 2nd Rd., Guishan Dist., Taoyuan City 33383, Taiwan (R.O.C.) Co- designed by PhysiolGuard Biotechnology Inc. -
Page 22: Ip27
- Operating range: < 7 m Power supply: Non-replaceable internal Lithium Ion battery Dimension: 45.6 x 21.4 x 11.3 mm (L x W x H) Weight: 24.5g Environmental conditions: - Storage temperature: -25ºC - 70ºC - Operating temperature: 5ºC - 45ºC; ECG plate: 46ºC (Max.) - Humidity: 10% to 95% - Atmosphere pressure: 800 - 1013 hPa ... -
Page 23: Safety Precautions
Safety precautions About charging Use only the charger supplied with your device. Use of another type of charger may result in malfunction and/or danger. Use a specified battery in the equipment. About the charger Do not use the charger in a high moisture environment. Never touch the charger when your hands or feet are wet. -
Page 24: Caring For Your Device
Caring for your device Taking good care of your device will ensure trouble-free operation and reduce the risk of damage. Keep your device away from excessive moisture and extreme temperatures (moisture > 95%, temperature > 60ºC). Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of time (>... -
Page 25: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement For regulatory identification purposes, your device is assigned a model number of N507. FCC ID: P4Q-N507 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 26: Guidance And Manufacturer's Declaration
FCC RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. Guidance and manufacturer’s declaration Manufacturer’s declaration-electromagnetic emissions The N507 is intended for use in the electromagnetic environment (for home healthcare) specified below. - Page 27 Manufacturer’s declaration-electromagnetic immunity The N507 is intended for use in the electromagnetic environment (for home healthcare) specified below. The customer or the user of the N507 should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level Electromagnetic environment-guidance...
- Page 28 Power frequency(50, 30 A/m 30 A/m The N507 power frequency 60 Hz) magnetic 50 Hz or 60 Hz 50 Hz, 60 Hz magnetic fields should field IEC 61000-4-8 be at levels characteristic of a typical location in a typical home healthcare environment.
- Page 29 Manufacturer’s declaration-electromagnetic immunity The N507 is intended for use in the electromagnetic environment (for home healthcare) specified below. The customer or the user of the N507 should assure that is used in such and environment. Immunity test IEC 60601 Compliance Electromagnetic environment-guidance level (for home healthcare environment)
- Page 30 NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
- Page 31 Recommended separation distance between portable and mobile RF communications equipment and the N507 The N507 is intended for use in an electromagnetic environment (for home healthcare) in which radiated RF disturbances are controlled. The customer or the user of the N507 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the N507 as recommended below, according to the maximum output power of the communications equipment.
- Page 32 Manufacturer’s declaration-electromagnetic immunity Test specifications for ENCLOSURE PORT IMMUNITY to RF wireless communications equipment The N507 is intended for use in the electromagnetic environment (for home healthcare) specified below. The customer or the user of the N507 should assure that it is used in such an environment. Test Band Service...
- Page 33 2 450 2 400 – Bluetooth, Pulse 2 570 WLAN, modulation 802.11 b/g/n, 217 Hz RFID 2450, LTE Band 7 5 240 5 100 – WLAN 802.11 Pulse 5 500 5 800 modulation 5 785 217 Hz NOTE: If necessary to achieve the IMMUNITY TEST LEVEL, the distance between the transmitting antenna and the ME EQUIPMENT or ME SYSTEM may be reduced to 1 m.
- Page 34 Disclaimer Specifications and documents are subject to change without notice. The manufacturer does not warrant this document is error-free. The manufacturer assumes no liability for damage incurred directly or indirectly from errors, omissions, or discrepancies between the device and the documents. Notes Not all models are available in all regions.
- Page 35 13.1 Symbol The symbols that are used on the product: Follow instructions for use Type BF Applied Part - Electrically connected to patient. Taiwan National Communications Commission (NCC) logo Non-ionizing radiation WEEE (Waste Electrical and Electronic Equipment). This product must not be disposed of as normal household waste, in accordance with the EU directive for waste electrical and electronic equipment (WEEE - 2002/96/EC).
