Summary of Contents for Air Techniques Hydromiser H-2

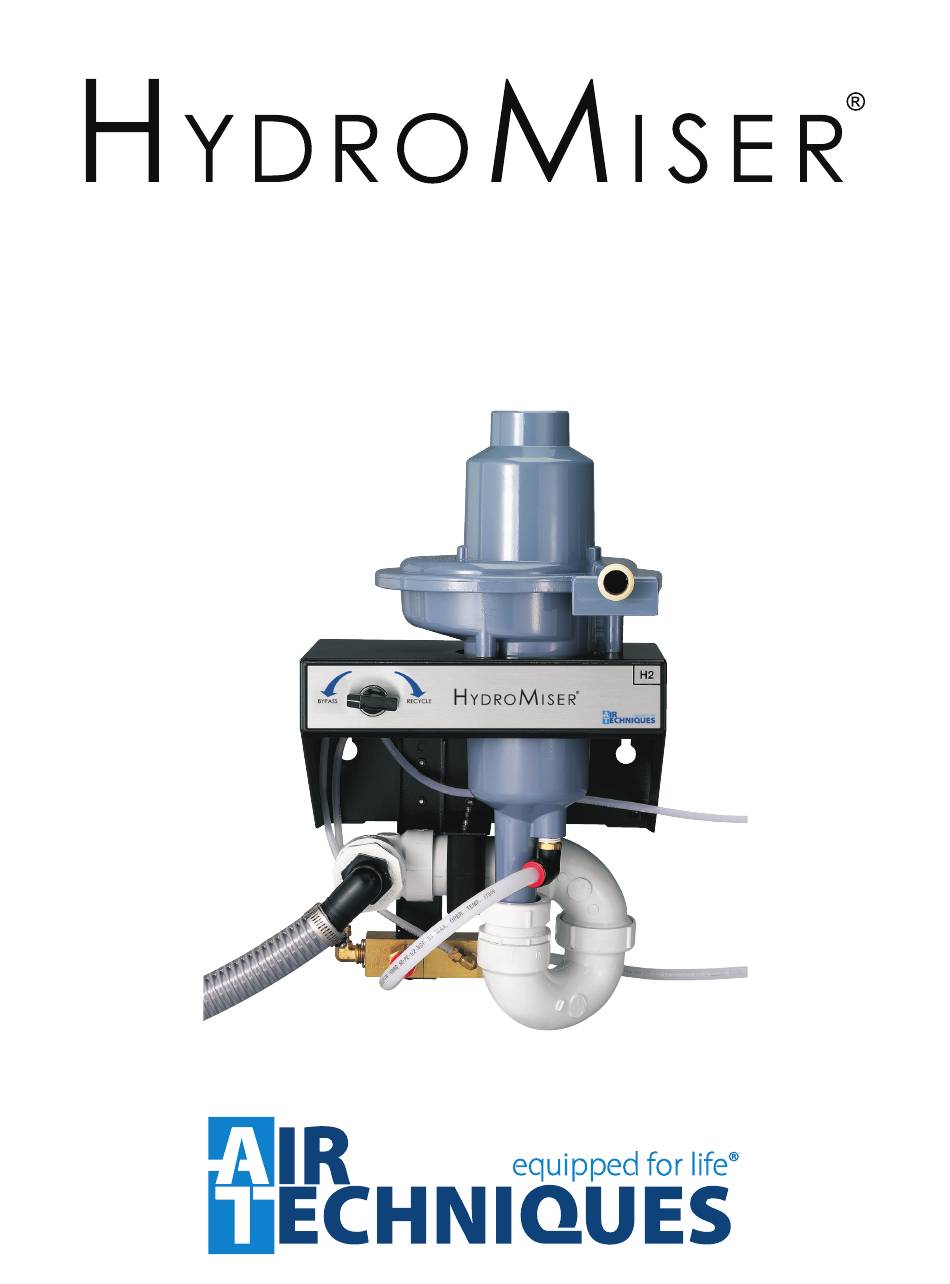

  • Page 1 Installation & Maintenance Instructions...
  • Page 2 • Install HydroMiser to the left, right, or above of VacStar. • Do not install HydroMiser below VacStar. • Maximum vertical distance between the VacStar exhaust outlet and the HydroMiser inlet is 3 feet. (36 in.) Page 2 Air Techniques, Inc.
  • Page 3 3/8” tubing with 3/8” X 3/8” union connector that accepts A 1/4” 3/8” Hydromiser connection. 3/4” drain hose connection to top of Hydromiser. 3/8” See Figure 4 for Hydromiser drain connection options. Figure 3. HydroMiser Installation Air Techniques, Inc. Page 3...
  • Page 4 Using the 2.5 liter bottle of CleanStream Cleaner, PN 57850 and the CleanStream dispenser system, PN 57665. www. a ir tec h n iqu es .c om Air Techniques 1295 Walt Whitman Road Melville, New York 11747 © Air Techniques, Inc. • P/N 55266, Rev. G • June 2018...
