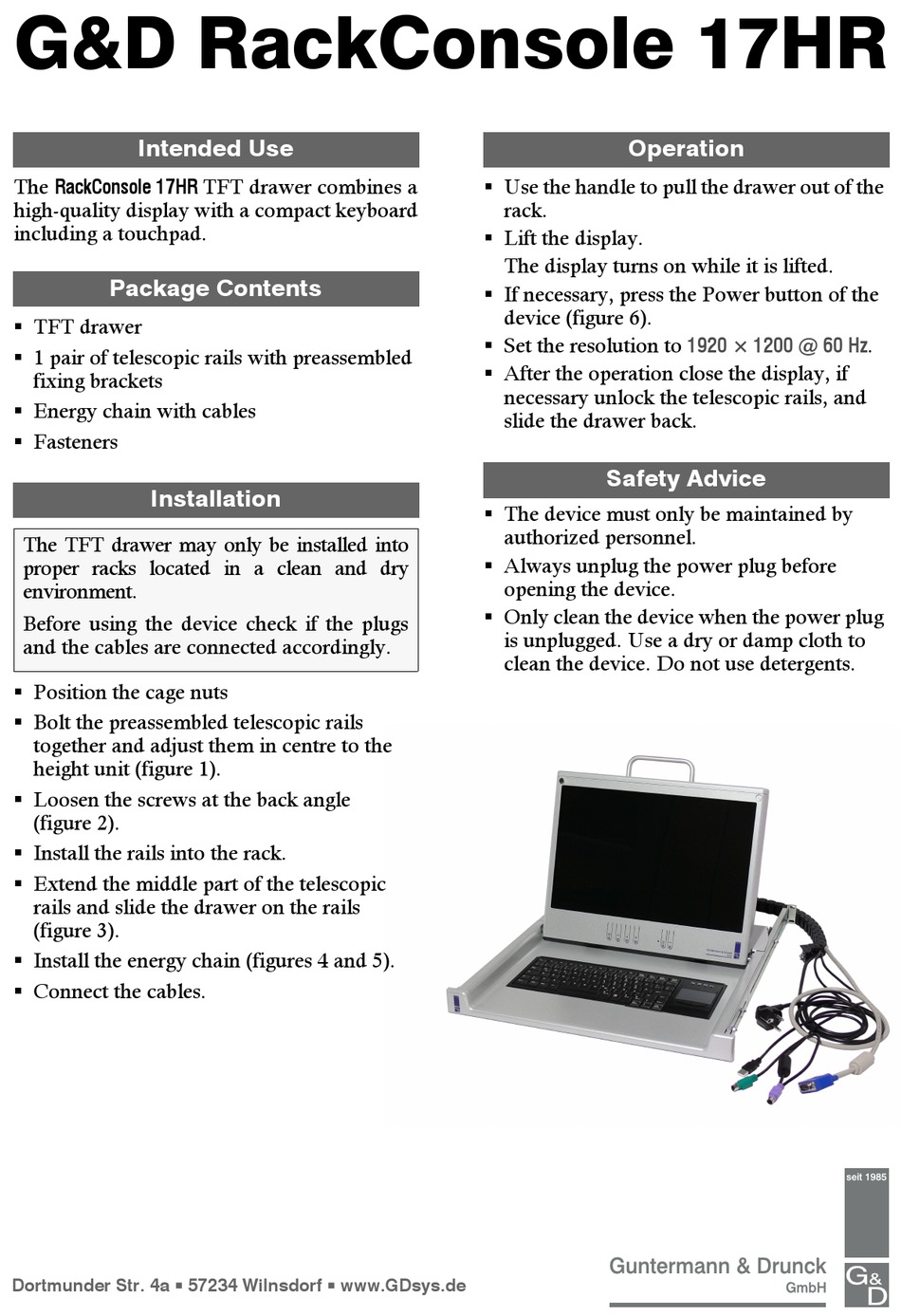

G&D RackConsole 17HR

Intended Use

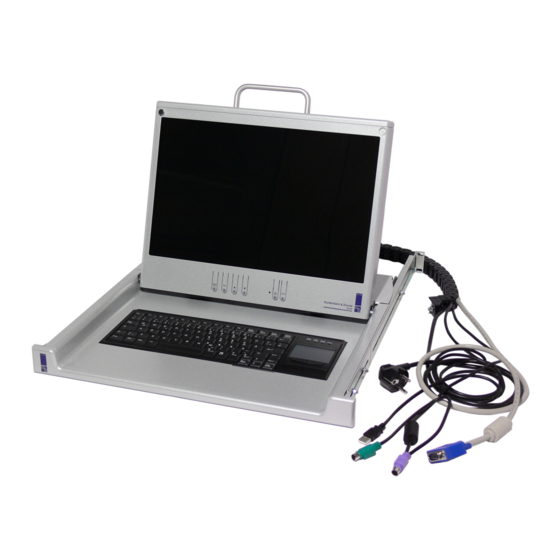

The
RackConsole 17HR
high-quality display with a compact keyboard
including a touchpad.
Lieferumfang

Package Contents

 TFT drawer
 1 pair of telescopic rails with preassembled
fixing brackets
 Energy chain with cables
 Fasteners
Montage

Installation

The TFT drawer may only be installed into
proper racks located in a clean and dry
environment.
Before using the device check if the plugs
and the cables are connected accordingly.
 Position the cage nuts
 Bolt the preassembled telescopic rails
together and adjust them in centre to the
height unit (figure 1).
 Loosen the screws at the back angle
(figure 2).
 Install the rails into the rack.
 Extend the middle part of the telescopic
rails and slide the drawer on the rails
(figure 3).
 Install the energy chain (figures 4 and 5).
 Connect the cables.
Dortmunder Str. 4a  57234 Wilnsdorf  www.GDsys.de
TFT drawer combines a

Operation

 Use the handle to pull the drawer out of the
rack.
 Lift the display.
The display turns on while it is lifted.
 If necessary, press the Power button of the
device (figure 6).
 Set the resolution to
 After the operation close the display, if
necessary unlock the telescopic rails, and
slide the drawer back.

Safety Advice

Safety Advice
 The device must only be maintained by
authorized personnel.
 Always unplug the power plug before
opening the device.
 Only clean the device when the power plug
is unplugged. Use a dry or damp cloth to
clean the device. Do not use detergents.
1920 × 1200 @ 60 Hz .
