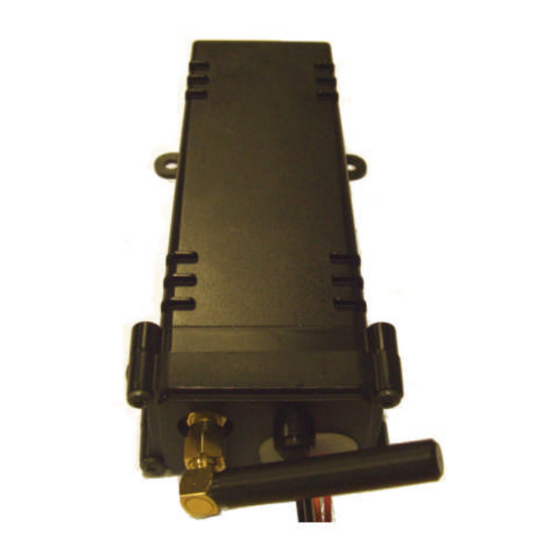

Summary of Contents for Tracker Plus
- Page 1 2013 Lexus IS TRACKER Plus Installation Guide RESTRICTED DOCUMENTATION Procedure: MLI26A Issue: Date: 01/07/2013...
- Page 2 TRACKER Plus for Lexus Procedure: MLI26A Installation Instructions - Contents Issue: TRACKER Network (UK) Ltd Date: 01/07/2013 Contents Page 1. General Information 2. Installation Location 1 – TRACKER Plus 3. Installation Location 2 – TRACKER Plus TRACKER Technical Support: 01895 455777...
- Page 3 General Information (Read the following carefully before proceeding with installation) Scope This document describes the TRACKER Plus installation requirements of the specified vehicle. This document MUST be used in conjunction with the other relevant TRACKER Operational Procedures listed below. Other References...
- Page 4 1. Ensure all wiring is free from any chafing / sharp edges. Disguise all wiring (inc. antenna) as an existing wiring loom, using matching loom tape and/or cable ties. 2. Ensure the diagnostic LED is functioning and displays the correct sequence, If TRACKER Plus has been installed Commission the unit. (See OP66/OP67) 3.
- Page 5 TRACKER Plus for Lexus Procedure: MLI26A Installation Instructions – Lexus IS, July 2013 > Issue: TRACKER Network (UK) Ltd Date: 01/07/2013 Location 1 – TRACKER Plus BEFORE COMMENCING! Refer to Section: ‘General Information’ Panels to remove: Fig. 1 Rear Seats.
- Page 6 01/07/2013 Location 1 continued - Power Connections Fig. 4 – TRACKER VLU +12v and Ignition live can be taken from the 8 way O.E. connector plug located at rear of Parcel Shelf, Connector plug Q39 is for Rear Sunshade and not currently a UK option.
- Page 7 TRACKER Plus for Lexus Procedure: MLI26A Installation Instructions – Lexus IS, July 2013 > Issue: TRACKER Network (UK) Ltd Date: 01/07/2013 Location 2 – TRACKER Plus BEFORE COMMENCING! Refer to Section: ‘General Information’ Panels to remove: Fig. 1 Multi Display Assembly.
- Page 8 TRACKER Plus for Lexus Procedure: MLI26A Installation Instructions – Lexus IS, July 2013 > Issue: TRACKER Network (UK) Ltd Date: 01/07/2013 Location 2 continued - Routing the VHF antenna Fig. 4 – Route the VHF antenna (BLACK/WHITE VHF Antenna Route wire) as shown by yellow line, along the air vent below the dash as indicated.
