KH.2545
INSTRUCTIONS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KH.2545 and is the answer not in the manual?

Questions and answers

Related Manuals for HOSSEVEN KH.2545

Summary of Contents for HOSSEVEN KH.2545

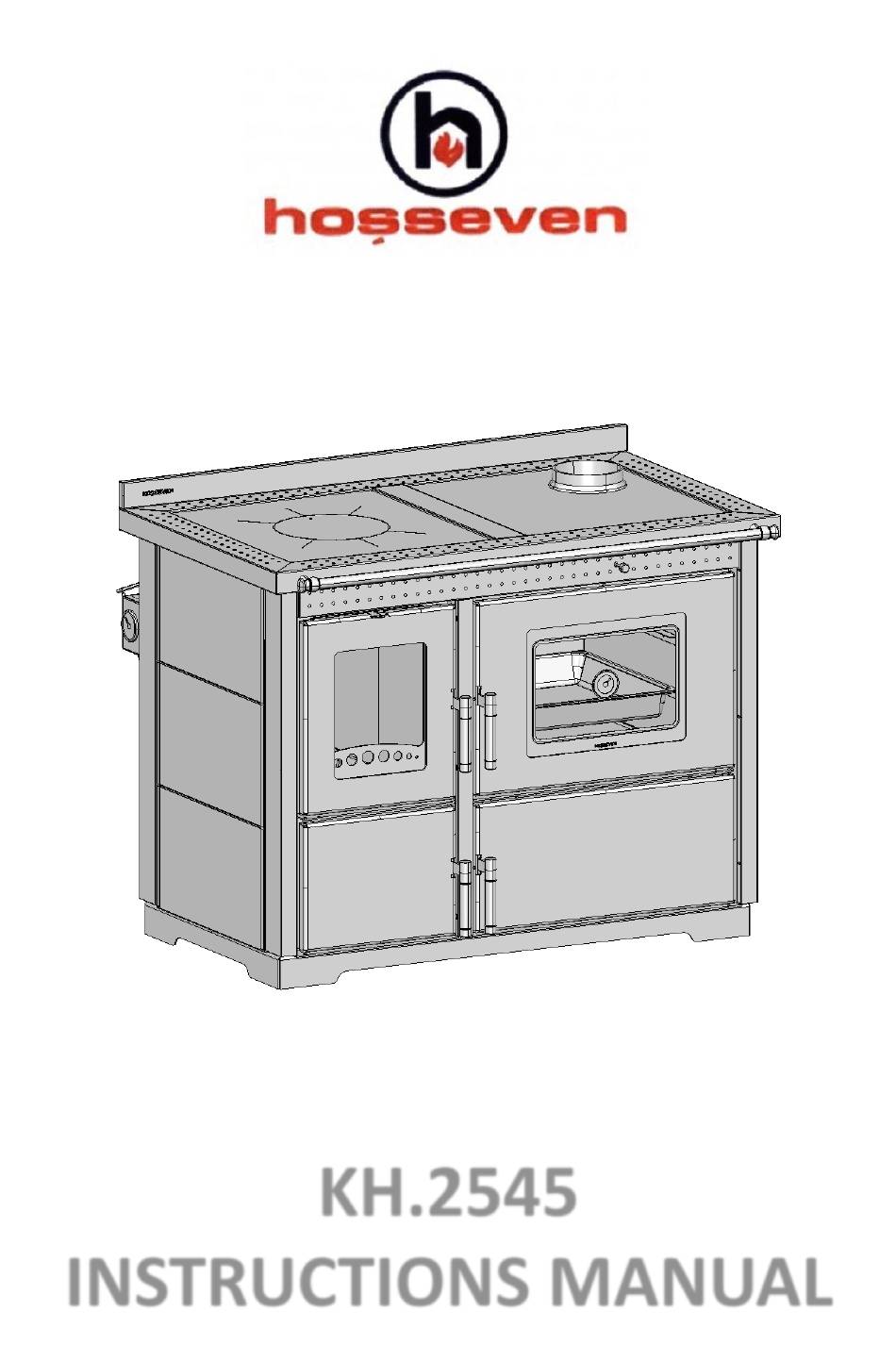

  • Page 1 KH.2545 INSTRUCTIONS MANUAL...

  • Page 3: General Precautions

    Installation must only be carried out by a qualifed technician who works on behalf of companies suitable to assume the entire responsibility of the system as a whole. HOSSEVEN A.S. declines any responsibility for the product that has been modifed without written authorisation as well as for the use of non-original spare parts.

  • Page 4: Installation Regulations

    • verify if your structure can support the weight of the appliance. In case of insuffcient carrying capacity it is necessary to adopt appropriate measures, HOSSEVEN A.S. responsibility is limited to the supply of the appliance (See chapter TECHNICAL DESCRIPTION).
  • Page 5 TECHNICAL DESCRIPTION The cookers of Hosseven A.S. are suitable to cook on the grill and on the oven and to heat living spaces for some periods or to support an insuffcient centralized heating system. They are ideal for holiday apartments and weekend houses or as an auxiliary heating system during the whole year.
  • Page 6 SMOKES control (see Picture) (Conversion of the cooker function to the cooker, bake oven and heating function). The smokes control, in the style of a chromed pull push lever, can be found on the top right corner of the front side of the cooker, between the protection bar and the oven door.

  • Page 7: Chimney Pot

    ATTENTION: as far as concern the realisation of the flue connection and flammable materials please follow the requirements provided by related standard. The flue must be at a suitably distance from flammable or combustible material using suitable insulation or an air space. It is FORBIDDEN to pass system piping or air ducts inside the flue.

  • Page 8: Air Flow In The Place Of Installation During Combustion

    AIR FLOW IN THE PLACE OF INSTALLATION DURING COMBUSTION As the product draw their combustion air from the place of installation, it is MANDATORY that in the place itself, a suffcient quantity of air is introduced. If windows and doors are airtight (e.g. built according to energy saving criteria), it is possible that the fresh air intake is no longer guaranteed and this jeopardises the draught of the appliance and your health and safety.

  • Page 9: Technical Description

    LIGHTING WARNING: After the first ignition you can smell bad odours (owing to the drying of the glue used in the garnitures or of the paint) which disappear after a brief using of the appliance. It must be ensured, in any case, a good ventilation of the environment.

  • Page 10: Normal Operation

    IMPORTANT: • do not add further wood between one complete load and the next; • do not suffocate the fire by closing the air intakes; • regular cleaning by a chimney sweep reduces fne particle emissions. NORMAL OPERATION After having positioned the registers correctly, insert the indicated hourly wood load avoiding overloads that cause anomalous stresses and deformations (according to the instructions on paragraph TECHNICAL DESCRIPTION).

  • Page 11: Summer Stop

    Vaseline. MAJOLICAS (If present) HOSSEVEN A.S. has chosen majolica tiles, which are the result of high-quality artisan work. As they are completely carried out by hand, the majolica may present crackles, speckles, and shadings. These characteristics certify their precious origin.

  • Page 12: Cast Iron Cooking Plate And Rings

    PRODUCTS MADE OF NATURAL STONE (If present) Natural stone has to be cleaned with very thin abrasive paper or with an abrasive sponge. Do NOT use any cleanser or fluid. VARNISHED PRODUCTS (If present) After some years of product use a change in the varnished details colour is totally normal. This is due to the considerable temperature range the product is subject to whenever in use and to the varnish ageing of time passing by.
  • Page 13 1. Steel flue with double chamber insulated with material resistant to 400°C. Effciency 100% excellent. 2. Refractory flue with double insulated chamber and external coating in lightweight concrete. Effciency 100% excellent. 3. Traditional clay flue square section with cavities. Effciency 80% good. 4.
  • Page 14 CHIMNEY CAPS - DISTANCES AND POSITIONING Inclination of the roof a >10° PICTURE - 04 All the minimum safety distances (cm) are shown on the product data plate and lower values must not be used (See DECLARATION OF PERFORMANCE - CE MARKING INFORMATION).
  • Page 15 PICTURE - 08 PICTURE - 09 PICTURE - 10 PICTURE - 11 PICTURE - 12 1040 mm 660 mm 130 mm A – Radiators flow 1” B – Radiators return 1” C – Open expansion tank flow 1” D – Open expansion tank return 1” E –...
  • Page 16 Opened expansion system 1. KH.2545 2. Opening expansion tank 3. Pump 4. Air ventile 5. Valve 6. Radiators 7. Heat exchanger(Optional) 8. Safety valve (Optional) PICTURE - 15 Closed expansion system 1. KH.2545 2. Closed expansion tank 3. Pump 4. Air ventile 5.
  • Page 17 PICTURE - 19...

  • Page 18: Oven Thermometer

    Code Code KH.2545 (Boiler body) 03.HKZ.2300 03.HKZ.2200 03.HKZ.2350 03.HKZ.3000 03.HKZ.2310 03.HKZ.3300 03.HKZ.2320 03.HKZ.2970 01.HKZ.2330 03.HKZ.3900 03.HKZ.2400 03.HKZ.3400 01.HKZ.2450 03.HKZ.3600 03.HKZ.2410 03.HKZ.3500 OVEN THERMOMETER CHIMNEY OUTLET Ø 03.HKZ.2910 03.HKZ.3010 03.HKZ.2500 03.HKZ.3020 03.HKZ.2600 OVEN 03.HKZ.2950 OVEN TRAY 03.HKZ.2950 03.HKZ.2800 03.HKZ.3700 CHIMNEY FLAP FIXED PART 03.HKZ.4000...
  • Page 20 HOŞSEVEN ISI VE YALITIM SANAYİ TİCARET A.Ş. Barakfakih sanayi bölgesi 10.cd No:2 Kestel/BURSA/TURKEY Tel : +90224 384 11 10 (4 hat) Faks : +90224 384 11 14 www.hosseven.com.tr info@hosseven.com.tr...
