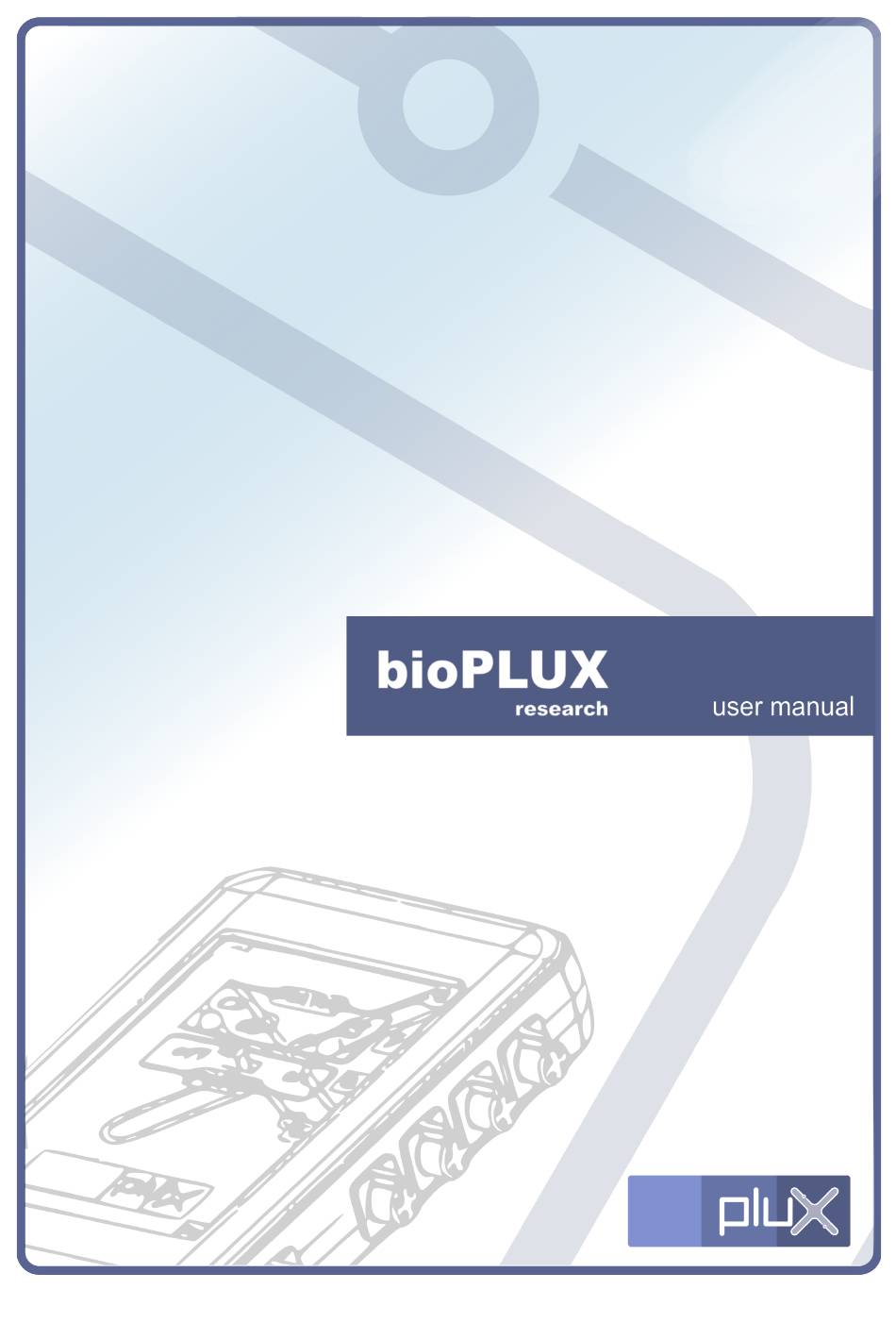

Summary of Contents for Plux bioPLUX
- Page 2 The information contained in this manual has been carefully checked and were made every effort to ensure its quality. The PLUX reserves the right to make changes and improvements to this manual and products referenced at any time without notice.
-
Page 3: Table Of Contents
Index Chapter 1: Your bioPLUXresearch........................4 Contents of the packaging............................5 Chapter 2: Hardware............................6 Getting started with your bioPLUXresearch......................... 6 Know the device..............................6 Switching it on..............................7 Status indicator ..............................8 Symbology................................9 Connecting the sensors ............................ 10 Disconnecting the sensors..........................11 Recharging.................................12 Accessories................................ -
Page 4: Chapter 1: Your Biopluxresearch
Chapter 1: Your bioPLUXresearch The bioPLUXresearch aims to provide biofeedback and relaxation and help re-educate muscle in training sessions of physical rehabilitation. bioPLUXresearch system cannot be used as a measuring instrument, diagnosis or diagnostic aid. The bioPLUXresearch is a device that collects and digitalizes signals from the sensors, transmitting them via bluetooth to the computer where the signals are shown in real-time The bioPLUXresearch system core philosophy is: ease of use, flexibility, reliability and portability. -
Page 5: Contents Of The Packaging
4 emgPLUX sensors (electromyography) 1 reference electrode 1 Bluetooth adapter 1 transformer 1 MAC address card 1 User Manual NOTE: Extra sensors can be purchased from PLUX. Check the list of accessories on page 14 to know the PLUX sensors available. 5/33... -
Page 6: Chapter 2: Hardware
Chapter 2: Hardware Getting started with your bioPLUXresearch Know the device 6/33... -
Page 7: Switching It On
Switching it on In order for the device to work, it must be switched on: 7/33... -
Page 8: Status Indicator
Status indicator Status: Charging (solid green light) bioPLUXresearch is switched off and recharging Status: Standby (blinking green light once per second) bioPLUXresearch is on and on standby Status: Synchronized (green led blinks twice per second).) bioPLUXresearch is sending data to the computer Status: Recharging alert (solid red led) Alert that in the last usage, the device was fully discharged. -
Page 9: Symbology
Symbology Indicator leds of bioPLUXresearch status On\off switch In this position, equipment is on. Digital input\output terminal In this position, equipment is off. Status indicator Channel to connect reference electrode (see page 8) Low battery indicator Transformer connector recharge (see page 8) bioPLUXresearch equipment Error\warning indicator Low battery\recharging indicator... -
Page 10: Connecting The Sensors
Connecting the sensors The sensors should be connected to channels one through 8 as shown in the figure below. The reference electrode should be connected to the respective channel (g). Take care not to connect the sensors to the digital input\output channel (see identi f ication of channels on page 6). When connecting the sensors, pay attention to where the cables go to avoid disrupting the patient's movements. -
Page 11: Disconnecting The Sensors
Disconnecting the sensors To avoid damaging the bioPLUXresearch device or the sensors, they should be disconnected in line with the recommendations shown below: 11/33... -
Page 12: Recharging
The room temperature when charging the battery must be between 10ºC and 35ºC. If the battery overheats (reaching 60ºC), unplug the charger immediately and contact PLUX Technical Assistance. -
Page 13: Accessories
Accessories Bluetooth adapter installation The first step in installing the system is to connect the Bluetooth adapter in one of the computer's USB ports.The computer's operating system will detect the Bluetooth adapter, and automatically installs the adapter. At the end of this process appears a system tooltip informing that the device is installed and ready to use. 13/33... -
Page 14: Set Of Sensors
Set of sensors lightPLUX ambient lighting sensor emgPLUX surface electromyography sensor airPLUX air pressure sensor edaPLUX dermoelectric activity sensor ecgPLUX electrocardiography sensor forcePLUX force resistant sensor uroPLUX intra-vaginal probe anglePLUX electro-goniometer linkPLUX i/o accessories xyzPLUX triaxial accelerometer tempPLUX temperature sensor 14/33... -
Page 15: Linkplux Schematic
linkPLUX schematic 15/33... -
Page 16: Chapter 3: Software
Chapter 3: Software Installation of monitorPLUX Installation is straightforward: 1. Insert the CD in your computer. 2. Locate the executable programme “MonitorPlux v2.0.exe” Note: If you are using Windows Vista, you will need to run the programme with Administrator privileges. To do this, use the right mouse button to click on the “MonitorPlux v2.0.exe” file and then select “Run as Administrator”... -
Page 17: Using The Software
When MonitorPlus is used for the first time, you need to define the device that is being used to collect data. To do this, after opening the program, click on the Monitor Plux Set up toolbar icon, or click on “File”... -
Page 18: Data Collection
Data collection To collect data after the sensors have been duly applied to the patient, just click on the “Start” button to begin receiving and viewing the signal. Click on “Start” to begin viewing data from the received signal Click on the “Digital Output” icon to switch the digital canal on. After beginning the session, you may Pause or Stop the session. -
Page 19: Viewing
Viewing When you start to view the signal, you begin by seeing channel 1. To see the signals from other channels, you need to open a new channel viewing window. This action is automatic and sequential, so if you are currently viewing channel 1, on opening a new window you will see channel 2 and so on up to channel 8 and digital 1. -
Page 20: Other Definitions
One of the simplest ways to view all channels simultaneously is by using the Tile setting. This provides an organized overview of all the channels at once. Please note that when viewing all channels simultaneously, of you want to adjust the scale you will have to do this on a per-channel basis (see following section, “Other Definitions”). - Page 21 Other useful definitions that can be established for each channel include the colour and line type, as well as the signal Offset value, that is, the initial value, adjusting the value on the Y axis. To access these options click on the Channel Set up icon and alter the required parameters. Click on the Channel Set up icon 21/33...
-
Page 22: Save Session
Save session After finishing a session of data collection, and clicking on the stop icon to stop the session, you can save the data from the session. The Save As icon is only made available at this time.. When data is saved, a text file (*.txt) file is generated, allowing the researcher to analyse the data with the most suitable or preferred software. -
Page 23: Saved File
Saved file After saving the session data, the saved file can be analysed. To ensure that the researcher can use any number of tools to examine the data, the file is saved in text format (*.txt). This allows for analysis to be carried out using a variety of software tools, including MatLab, Python, Labview, Excel and so on. -
Page 24: Chapter 4: Information About Safety, Support And Quality
Chapter 4: Information about safety, support and quality Classification and identification accordance with Decree-Law Nº 273/95 October. Device Class I with measuring function, Annex VII. Internally powered equipment (IEC 60601-1). Class II device when connected to external power supply (IEC 60601-1). Device with applicable parts of the type BF (IEC 60601-1). -
Page 25: Warnings
Do not use the device near the fire or in potentially explosive atmospheres, such as atmospheres with flammable gas. The use of damaged accessories or not recommended by PLUX may result in changes to the technical characteristics and features of your bioPLUXresearch. - Page 26 Do not open the bioPLUXresearch or its accessories. The repair of the same should be only done by properly authorized PLUX personnel. By connecting the bioPLUXresearch to the transformer for batteries recharge, place the device so that the cable is free, away from places where it can be walked on or damaged.
- Page 27 Exposure to radio-frequency. The bioPLUX research radiation emission levels are in accordance with the limits of exposure to radiation allowed by the FCC ( transmission module with FCC ID:QoQwT12). Nevertheless, the device must be used in a way to minimize human contact during normal operation.
-
Page 28: Electromagnetic Emissions
Electromagnetic emissions See the table below for speci f ic information regarding the bioPLUXresearch electromagnetic emissions. The bioPLUXresearch is intended for use in the electromagnetic environment speci f ied below. The client and / or user of this device should ensure that it is used in such an environment. Electromagnetic Emissions test Compliance... -
Page 29: Maintenance Recommendations
Take care while handling the bag and avoid dropping it, since the device is not shock-proof and should not be placed under stress or sudden acceleration. PLUX can not be held responsible if the system is transported outside it's original box or in any other type of unsuitable packaging, which may invalidate the guarantee. -
Page 30: Technical Specifications
Technical specifications bioPLUXresearch device Wireless Connectivity, via bluetooth with range of 100m. Class 2 Bluetooth 8 analogical channels at 12 bit with 1000Hz sampling 1 digital port 1 bit I/O Weight 86g Dimensions: 84 mm x 53 mm x 18 mm Charger FW7600/09 charger with universal battery Input 100 to 240 V~, 50 to 60 Hz, 90 mA... -
Page 31: Bluetooth Adapter
Bluetooth adapter Compatible with USB 1.1 and 2.0 Bluetooth High speed 3Mbps Range of 200m for signal reception Security parity, encryption and authentication 31/33... -
Page 32: Technical Assistance
Technical assistance PLUX provides Technical Assistance for all the equipment it supplies, and damaged parts, accessories or bioPLUXresearch devices may be substituted or repaired. Technical Assistance is provided at PLUX's premises within a maximum of 30 days. Even if the system is under guarantee, before calling a Technician please carry out a few simple checks to see if the problem can be solved without requesting support. -
Page 33: Guarantee Of Quality
30 days, any products with proven defects at no cost to the client. During the repair period PLUX promises to provide a temporary replacement under of the same speci f ication. Repairs will be carried out at PLUX's premises after the equipment has been received.
