Summary of Contents for Heltun TOUCH PANEL SWITCH QUARTO

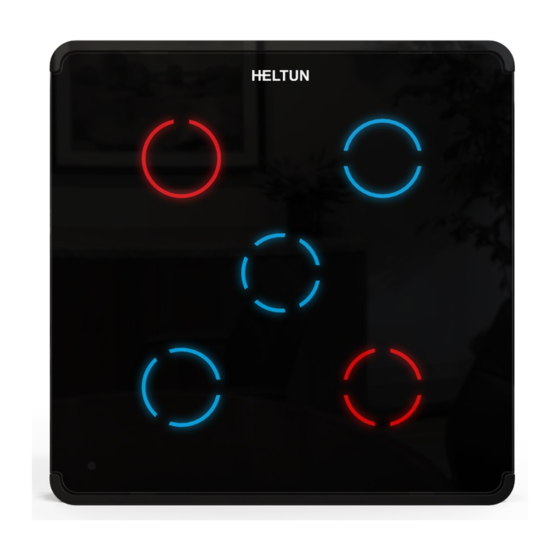

- Page 1 TOUCH PANEL SWITCH QUARTO HE-TPS04 USER MANUAL for Hardware v.36 & Firmware v.2.2...
-
Page 2: Table Of Contents
Table of Contents Overview ................................... 3 Technical Specifications ..............................3 Functions & Features ................................ 4 Installation ..................................5 Disassembly ..................................6 Factory Reset ..................................6 Z-Wave Network................................6 Adding to Z-Wave network ............................6 Removing from Z-Wave network ..........................6 Security .................................. -
Page 3: Overview
Overview This is the user manual for the HELTUN HE-TPS04 Advanced Programmable Touch Panel Switch. The HE-TPS04 brings ‘Impossibly Smart’ capabilities to your home lighting, electric outlets, or motorized blinds, door locks, gates, and valves. It replaces an existing in-wall switch and brings over-the-Internet monitoring, control, and advanced programmability to four connected devices. -
Page 4: Functions & Features
• Internal ambient light sensor • Internal temperature sensor Measurement range: –30°C to +80°C Accuracy: ±0.5°C • Internal humidity sensor Measurement range: 0% to 80%RH Accuracy: ±3.0%RH • IP class: IP21 • Z-Wave Plus V2 SDK: V7.11 • Z-Wave module: ZGM130S •... -
Page 5: Installation
• Loads: connect the required loads to the relay output terminals labeled “OUT-1”, “OUT-2”, “OUT-4”, “OUT-5”. Note: HELTUN recommends installing cord terminals (electric wire ferrule) on the ends of wires before connecting them to the HE-TPS04 outputs (various colors terminals are included in the packaging). -
Page 6: Disassembly
The HE-TPS04 may be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. The HELTUN HE-TPS04 will act as a ‘repeater’ (i.e. ‘range extender’) for other devices regardless of manufacturer or brand to increase the reliability of the overall network. -
Page 7: Smartstart
Check the device current firmware version in the gateway/controller. Start the process from the Z-Wave gateway/controller. Download the latest firmware that corresponds to the HE-TPS04 (see support.heltun.com) Set the main controller in Firmware OTA (“over-the-air”) Update Mode (see the gateway/controller manual). -
Page 8: Associations
Associations Association enables the HE-TPS04 to control other Z-Wave devices over the network. The HE-TPS04 has 9 Endpoints and 17 Association Groups. Each Association Group (except group 1) may include one other device from different brands and/or manufacturers. EndPoint 0 Groups: The Root Device (EndPoint 0) of HE-TPS04 has 17 association groups Group 1 –... -
Page 9: Touch Panel Operation
EndPoints 1-10 groups Root (EndPoint 0) groups Endpoint 1, Group 2 – “LED 1 Basic Set” Group 10 – “LED 1 Basic Set” Endpoint 2, Group 2 – “LED 2 Basic Set” Group 11 – “LED 2 Basic Set” Endpoint 3, Group 2 – “LED 3 Basic Set” Group 12 –... -
Page 10: Settings (Available Through Z-Wave Network)
102 (e.g. if “24” is set as the Parameter value, it means the second relay and fourth relay will never be ON at the same time). Note: In this mode both relays cannot be switched ON simultaneously and first one relay switches OFF, then another switches ON. - Page 11 Reserved by the manufacturer -100 … 100 1 byte Air Temperature Calibration in °C, value X 10, e.g. 1.0°C=10 Reserved by the manufacturer 1 byte Time correction by controller 0, 1 Reserved by the manufacturer 1 byte Week Day 1, 2, 3, 4, 5, 6, 7 0 …...
-
Page 12: Z-Wave Frequency
0, 10000000 to 4 bytes Relay control scenario 3 43112359 0, 10000000 to 4 bytes Relay control scenario 4 43112359 0, 10000000 to 4 bytes Relay control scenario 5 43112359 0, 10000000 to 4 bytes Relay control scenario 6 43112359 0, 10000000 to 4 bytes Relay control scenario 7... -
Page 13: Hardware & Software Versions
Hardware & Software Versions Parameter 03 – Hardware and Software Versions This Parameter allows to check the hardware and firmware versions of the device. The Parameter returns value in the format XXYYZZ, where XX is Hardware Version, YY is Firmware Major Version and ZZ is Firmware Minor Version. Note: This Parameter is read-only. -
Page 14: Temperature Sensor Calibration
Temperature Sensor Calibration Parameter 17 – Air Temperature Calibration This parameter defines the offset value for room air temperature. If the internal air temperature sensor is not correctly calibrated, then manual calibration can be made by adjusting the values up to ±10°C. This value will be added or subtracted from the internal air temperature sensor reading. -
Page 15: Relays Mode
6 – Timer: OFF>ON Mode: Relay output switches to OFF state (contacts are open) then after a specified time switches back to ON state (contacts are closed). The time is specified in Parameters 71-74. Set the value for Button 1 in Parameter 51, for Button 2 in Parameter 52, for Button 3 in Parameter 53, for Button 4 in Parameter 54. -
Page 16: Sensors Report Interval
C = State change relative to value in EFGH Condition Value fields (see below) 0-Equal or lower than 1-Equal or higher than D: State Change, 0-Switch OFF 1-Switch ON EFGH: Condition Value “Sensor Value” for Control modes 0, 1, and 2, or “Time” for Control mode 3. If Temperature sensor has been chosen as a source in the control mode, the value should be x10, e.g. -
Page 17: Association Commands Configuration
Parameter 145 – Humidity Sensor Report Threshold This Parameter determines the change in humidity level in % resulting in humidity sensors report being sent to the gateway. From 1% to 25% can be selected. Use the value 0 if there is a need to stop sending the reports. The factory default value is 2. -
Page 18: Limited Warranty
HELTUN, at HELTUN's option, shall either repair or replace the defective product. If the product is defective, (i) return it with dated proof of purchase to the place it was purchased; or (ii) contact HELTUN Customer Care by email at support@heltun.com.
