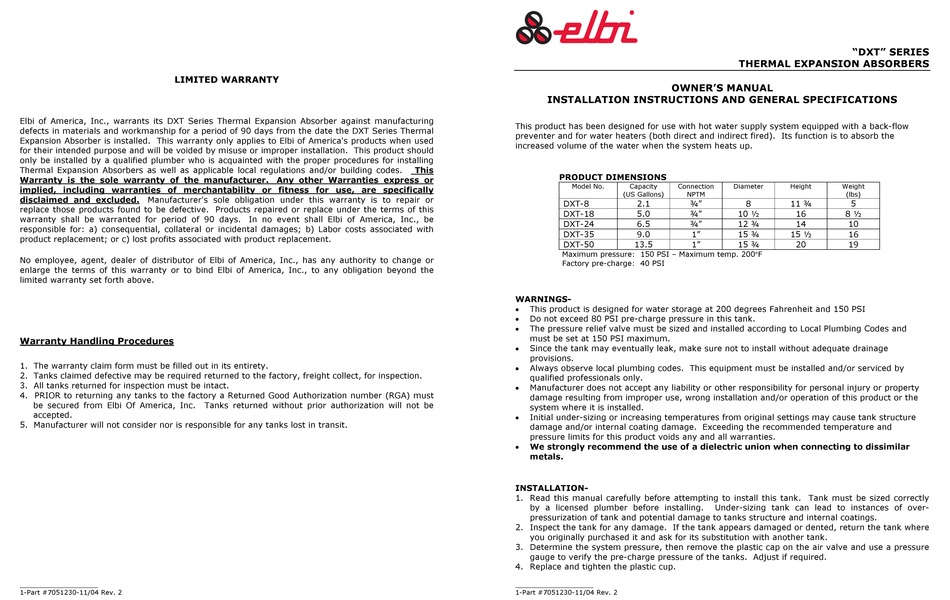

Elbi DXT Series Owner's Manual

LIMITED WARRANTY
Elbi of America, Inc., warrants its DXT Series Thermal Expansion Absorber against manufacturing
defects in materials and workmanship for a period of 90 days from the date the DXT Series Thermal
Expansion Absorber is installed. This warranty only applies to Elbi of America's products when used
for their intended purpose and will be voided by misuse or improper installation. This product should
only be installed by a qualified plumber who is acquainted with the proper procedures for installing
Thermal Expansion Absorbers as well as applicable local regulations and/or building codes.
Warranty is the sole warranty of the manufacturer. Any other Warranties express or
implied, including warranties of merchantability or fitness for use, are specifically
disclaimed and excluded. Manufacturer's sole obligation under this warranty is to repair or
replace those products found to be defective. Products repaired or replace under the terms of this
warranty shall be warranted for period of 90 days. In no event shall Elbi of America, Inc., be
responsible for: a) consequential, collateral or incidental damages; b) Labor costs associated with
product replacement; or c) lost profits associated with product replacement.
No employee, agent, dealer of distributor of Elbi of America, Inc., has any authority to change or
enlarge the terms of this warranty or to bind Elbi of America, Inc., to any obligation beyond the
limited warranty set forth above.
Warranty Handling Procedures
1. The warranty claim form must be filled out in its entirety.
2. Tanks claimed defective may be required returned to the factory, freight collect, for inspection.
3. All tanks returned for inspection must be intact.
4. PRIOR to returning any tanks to the factory a Returned Good Authorization number (RGA) must
be secured from Elbi Of America, Inc.
accepted.
5. Manufacturer will not consider nor is responsible for any tanks lost in transit.
___________________
1-Part #7051230-11/04 Rev. 2
Tanks returned without prior authorization will not be
INSTALLATION INSTRUCTIONS AND GENERAL SPECIFICATIONS
This product has been designed for use with hot water supply system equipped with a back-flow
preventer and for water heaters (both direct and indirect fired). Its function is to absorb the
increased volume of the water when the system heats up.
This
PRODUCT DIMENSIONS
Model No.
DXT-8
DXT-18
DXT-24
DXT-35
DXT-50
Maximum pressure: 150 PSI – Maximum temp. 200GF
Factory pre-charge: 40 PSI
WARNINGS-
N
This product is designed for water storage at 200 degrees Fahrenheit and 150 PSI
N
Do not exceed 80 PSI pre-charge pressure in this tank.
N
The pressure relief valve must be sized and installed according to Local Plumbing Codes and
must be set at 150 PSI maximum.
N
Since the tank may eventually leak, make sure not to install without adequate drainage
provisions.
N
Always observe local plumbing codes. This equipment must be installed and/or serviced by
qualified professionals only.
N
Manufacturer does not accept any liability or other responsibility for personal injury or property
damage resulting from improper use, wrong installation and/or operation of this product or the
system where it is installed.
N
Initial under-sizing or increasing temperatures from original settings may cause tank structure
damage and/or internal coating damage. Exceeding the recommended temperature and
pressure limits for this product voids any and all warranties.
N
We strongly recommend the use of a dielectric union when connecting to dissimilar
metals.
INSTALLATION-
1. Read this manual carefully before attempting to install this tank. Tank must be sized correctly
by a licensed plumber before installing.
pressurization of tank and potential damage to tanks structure and internal coatings.
2. Inspect the tank for any damage. If the tank appears damaged or dented, return the tank where
you originally purchased it and ask for its substitution with another tank.
3. Determine the system pressure, then remove the plastic cap on the air valve and use a pressure
gauge to verify the pre-charge pressure of the tanks. Adjust if required.
4. Replace and tighten the plastic cup.
___________________
1-Part #7051230-11/04 Rev. 2
THERMAL EXPANSION ABSORBERS
OWNER'S MANUAL
Capacity Connection Diameter Height
(US Gallons) NPTM
2.1 ¾" 8 11 ¾
5.0 ¾" 10 ½ 16
6.5 ¾" 12 ¾ 14
9.0 1" 15 ¾ 15 ½
13.5 1" 15 ¾ 20
Under-sizing tank can lead to instances of over-
"DXT" SERIES
Weight
(lbs)
5
8 ½
10
16
19
