Jung F-ANT Operation Manual

Radio antenna

Table of Contents

Download this manual

Radio Management

Radio antenna

Art.-No.: F-ANT

Operationsmanual

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Failure to observe the instructions may cause damage to the device and result in fire and

other hazards.

The radio antenna including the antenna cable are not electrically isolated. Isolate the

antenna and antenna cable from mains voltage in a reliable manner using suitable

isolation measures.

To ensure adequate contact protection, operate device only with the slide in use.

These instructions are an integral part of the product, and must remain with the end

customer.

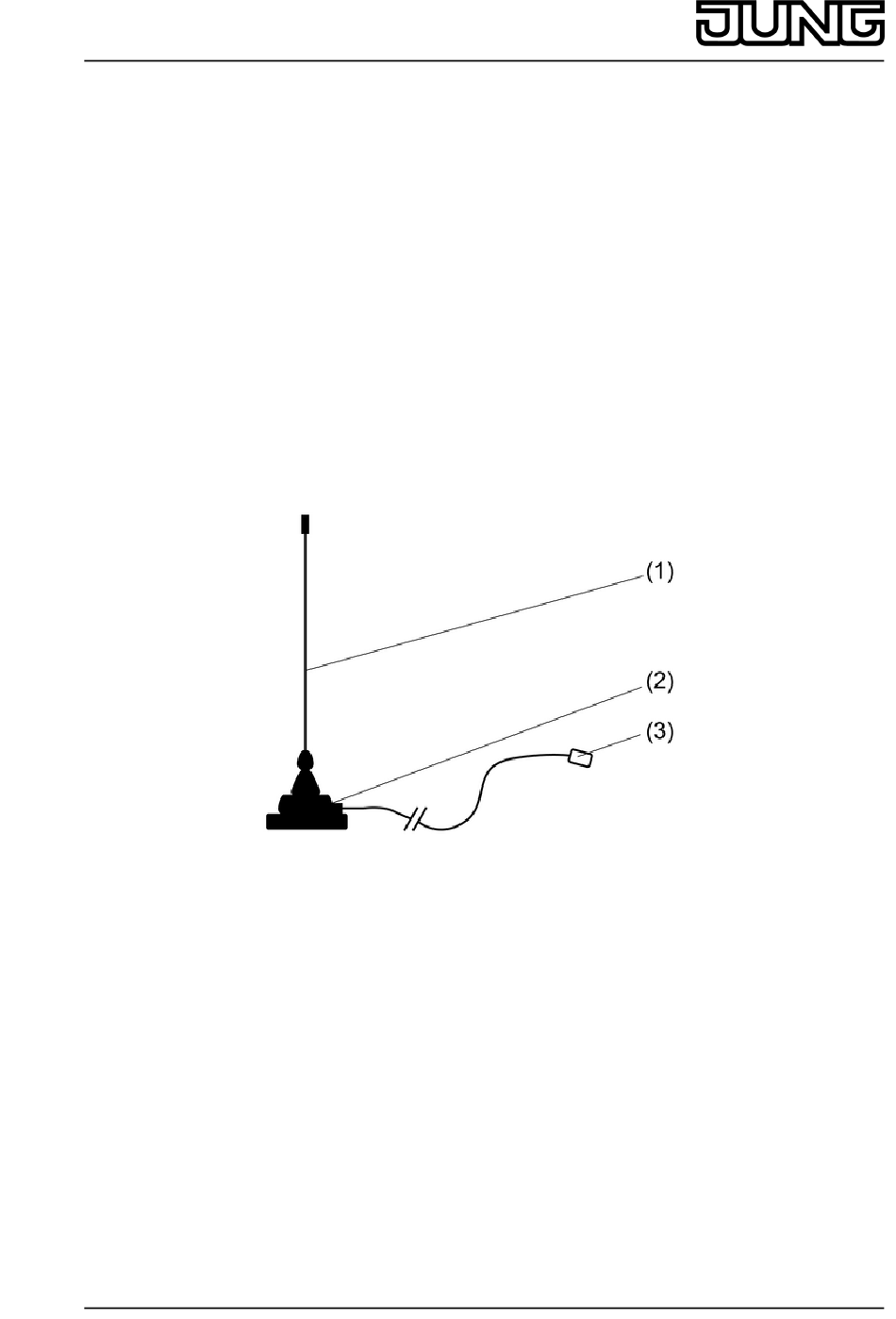

(1) Antenna

(2) Magnetic base

(3) Antenna connector

Intended use

The radio antenna supplements the integrated antenna of the radio receiver RMD in case of

unfavourable installation conditions, e.g. a metallic distribution box.

82553113

J:0082553113

picture 1

1/4

30.07.2010

Table of Contents

Do you have a question about the F-ANT and is the answer not in the manual?

Page 1 Radio Management Radio antenna Radio antenna Art.-No.: F-ANT Operationsmanual 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
Page 2 Radio Management Radio antenna 4 Information for qualified electricians 4.1 Fitting and electrical connection DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. Before carrying out work on the device or load, disengage all the corresponding circuit breakers. Cover up live parts in the working environment. i To ensure optimal reception, place antenna on an electrically conductive surface;...
Page 3 Radio Management Radio antenna Routing the antenna in behind the panel cover of the distributor picture 3 Unlock the black slide (6) by pulling up on the bow and pull out slide (picture 3). Insert the antenna connector (3) into the SMB socket (4) of the radio receiver RMD (5). Re-insert the black slide until it engages noticeably.
Page 4 We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
