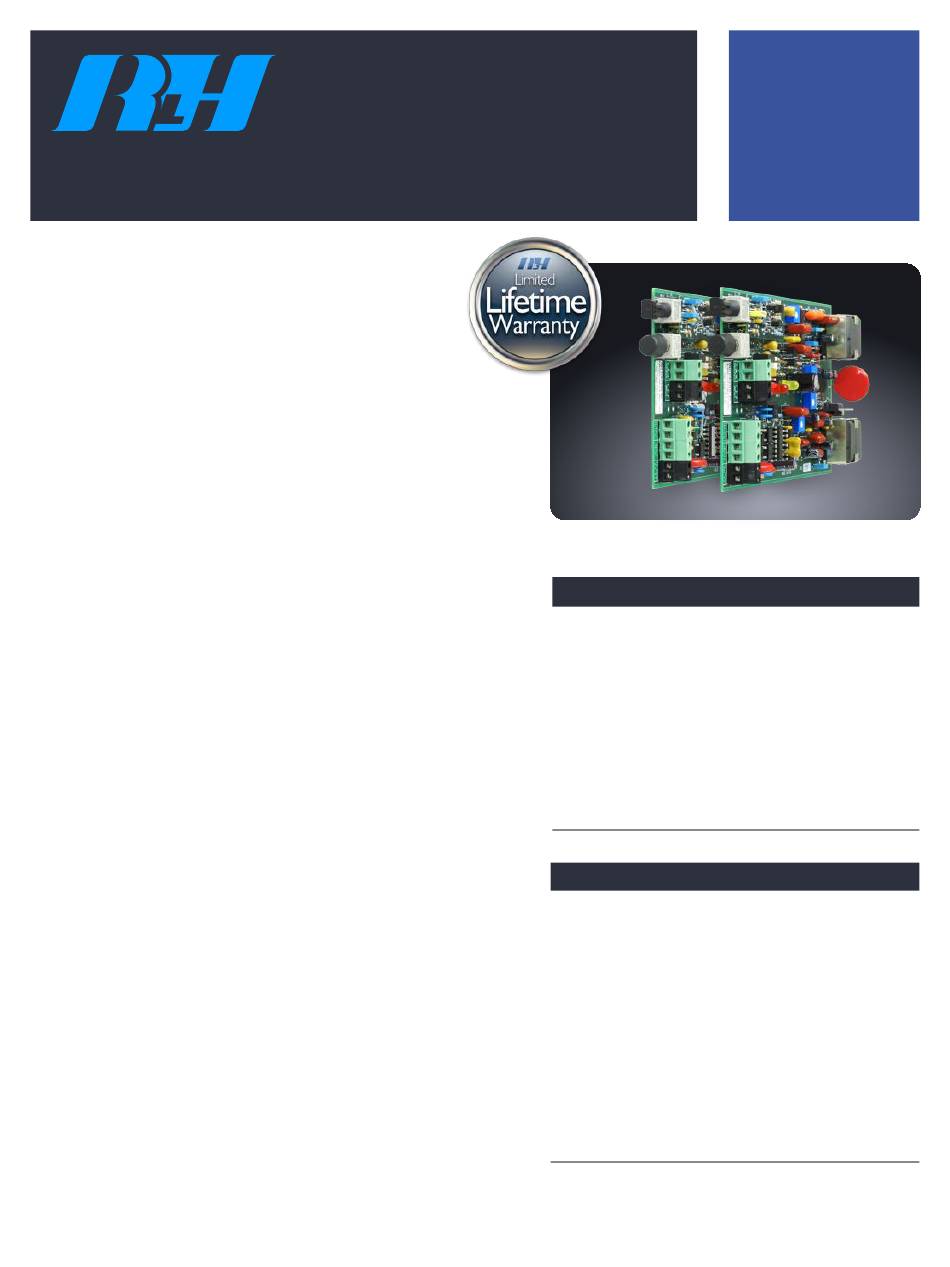

USER GUIDE
4 Wire Data
with Contact Closure
Fiber Link Card System
SYSTEM INSTALLATION INFORMATION
Description

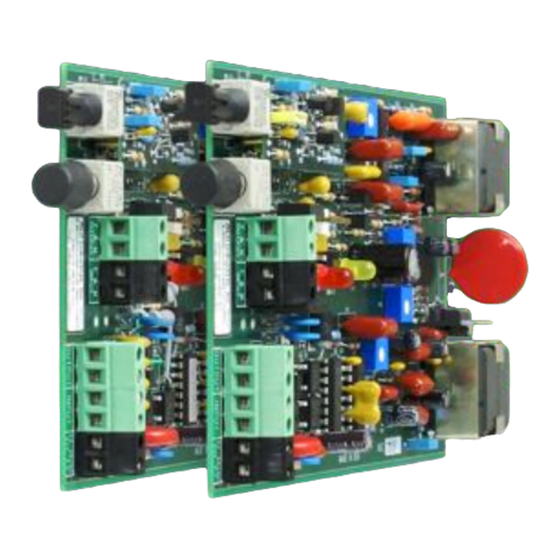

The 4 Wire Data with Contact Closure Fiber Link Card system
provides simultaneous transmission of 4 wire data and
bidirectional contact closure over two optical fibers. It
supports full duplex constant transmission up to 9600bps
(9.6Kbps) in voice frequency range (300Hz-3.4KHz).
The card also interfaces with a dry contact and provides a
contact closure on the far end. The system includes
convenient contact closure input and output status LED
indicators.
The CO (Central Office) Side Card provides the electrical-
optical interface between a Central Office or PBX 4 wire
copper line and two fiber strands, and the Sub (Subscriber)
Side Card provides the optical-electrical interface between the
fiber and a 4-wire copper line to a RTU, PBX, modem or other
customer supplied equipment.
This industrial hardened Fiber Link Card system may be
installed into any RLH card housings, and is covered by our
Limited Lifetime Warranty.
Powering
The 4 Wire Data with Contact Closure CO and Sub cards may
be powered by local or line power. Cards can accept local
power from 22-56VDC@18 mA maximum, or power supplied
from the serving office @15mA.
Note: To maintain high voltage isolation, Fiber Link CO and
Sub cards must be powered from separate power sources.
RLH Industries, Inc.
RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com
4 Wire Data with Contact Closure Card
Contents
Description
____________________________
____________________________
________________________
____________________
______________________
General Specifications
Compliance Information
The 4 Wire Data with Contact Closure Fiber Link
Card system is compliant with the following
industry standards:
•
FCC PART-68B
•
IEEE-487
•
IEEE-1590
•
Motorola R56
•
BR 876-310-100 BT (Telcordia)
•
Bellcore SR-3966
•
GR-1089
•
GR-63
The leader in
rugged fiber optic
technology.
U-011 2017A-0411
1
________________
2
___________
2
3
6
6
6
__________________
7
Page " 1
Advertisement
Table of Contents
Summary of Contents for RLH Industries 8806-1238-02-SM11
- Page 1 Note: To maintain high voltage isolation, Fiber Link CO and • BR 876-310-100 BT (Telcordia) Sub cards must be powered from separate power sources. • Bellcore SR-3966 • GR-1089 • GR-63 RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com Page " 1...
- Page 2 (Type 4 ports as described in GR-1089-CORE, Issue 4) and require isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufficient protection in order to connect these interfaces metallically to OSP wiring. RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com Page " 2...
- Page 3 The 4 Wire Data with Contact Closure Fiber Link Card is designed to be installed into any RLH card housing. The housing should be properly installed before installing the card. All electrical and fiber optic connection are made directly onto the card. RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com Page " 3...
- Page 4 OFF when no input is present. The yellow LED is ON when the contact closure output is closed, and OFF when the output is open. RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com Page " 4...
- Page 5 If trouble is encountered, verify all connections, signal and voltage levels. If trouble persists, replace the unit and retest. If technical assistance is required, contact RLH Industries, Inc. Technical support department. Refer to the contact information at the end of this document.
- Page 6 -40° to +158° F (-40° to +70° C), 95% non-condensing Dimensions 7 ”x 4” x 1” Standard RLH Fiber Link Card form factor Warranty Limited Lifetime Visit www.fiberopticlink.com for warranty details RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com Page " 6...
- Page 7 Ordering Information RLH Fiber Optic Link products are available directly through RLH Industries, Inc. or its distributors nationwide. Please call RLH customer service for ordering assistance. Each 4 Wire Data with Contact Closure Card is identified with the part number.
- Page 8 936 N. Main Street, Orange, CA 92867 USA representative T: (714) 532-1672 for pricing and delivery information. F: (714) 532-1885 Specifications subject to change without notice. " RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax 714 532-1885 • www.fiberopticlink.com Page " 8...
