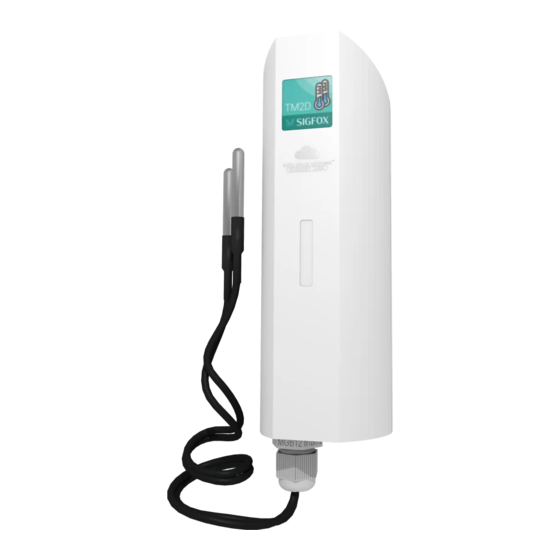

- Page 1 ATIM Cloud Wireless Digital temperature sensor with contact probes TM2D-HP User Guide Concerned models: ACW/LW8-TM2D-HP ACW/LW8-TM2D-HP-5 ACW/SF8-TM2D-HP ACW/SF8-TM2D-HP-5...
-
Page 2: Table Of Contents
ABLE ONTENTS Document version history ........................3 Disclaimer ..............................3 Trademarks and copyright ........................3 Declaration of compliance ........................4 Environmental recommendations ......................4 Explosive atmosphere ..........................4 Environment ............................... 4 Radio ................................5 Technical specifications ........................... 6 Housing ..............................7 Space requirements ............................ - Page 3 Statement period when outside the comfort zone .................. 21 Codes reserved for future developments: ....................21 Lower threshold probe 2 .......................... 22 Upper threshold probe 2 .......................... 22 Temperature offset probe 2 ........................22 Delta in confort zone probe 2 ........................22 Connecting the modem .........................
-
Page 4: Document Version History
Trademarks and copyright ATIM radiocommunications®, ACW ATIM Cloud Wireless® and ARM Advanced Radio Modem® are registered trademarks of ATIM SARL in France. The other trademarks mentioned in this document are the property of their respective owners. ATIM_ACW-TM2D-HP_UG_EN_V1.2... -
Page 5: Declaration Of Compliance
Declaration of compliance All ACW Atim Cloud Wireless® products comply with the regulatory requirements of the R&TTE Directive (1999/5/EC), article 3: 1 SAFETY (Article 3.1a of the 1999/5/EC Directive) NF EN60950-1 Ed. 2006/A1:2010/A11:2009/A12:2011 (health) EN62479: 2010 (power <20mW) or EN62311:2008 (power > 20mW) 2 Electromagnetic compatibility (Article 3.1b of the 1999/5/EC Directive) -
Page 6: Radio
General hazard – Failure to follow the instructions presents a risk of equipment damage. Electrical hazard – Failure to follow the instructions presents a risk of electrocution and physical injury. Direct-current symbol WARNING: do not install this equipment near any source of heat or any source of humidity. WARNING: for your safety, it is essential that this equipment be switched off and disconnected from mains power before carrying out any technical operation on it. -
Page 7: Technical Specifications
Technical specifications Dimensions 154 x 54 x 54 mm Antenna Integrated (¼ wave) Temperature probes Numerical Cables length 2 or 5 meters -20°C to +55°C (operating mode) -40°C to +70°C (storage) Temperature -55°C to +125°C (probes) Mounts to Wall, tube or pole, DIN rail Housing IP 65 Power supply... -
Page 8: Housing
Housing a. Space requirements Maximum cable diameter through cable gland: 7 mm ATIM_ACW-TM2D-HP_UG_EN_V1.2... -
Page 9: Opening The Acw Housing
b. Opening the ACW housing The housing must be opened to access both the terminal block and the mini-USB port used to configure the module. To do this, insert a screwdriver into the slot and tilt it downward to lift the inside tab (see photo). -
Page 10: Identification
Revision n° of the product LoRaWAN DevEUI (hardware and firmware technical status) Serial number Sigfox ID or LoRaWAN DevEUI Each ATIM ACW product line has a QR Code label visible either on the side or on the front of the product. ATIM_ACW-TM2D-HP_UG_EN_V1.2... - Page 11 This QR code can be easily read with any 2D barcode reader application on a smartphone. QR Code label of an ACW-TM2D-HP: Reading this code indicates the following information: ATIM|ACW/XXX-TM2D-HP|X.X|190114|1|3.0|5.11|XXXXXXXXXXXXXXX Interpretation: ACW/XXX- ATIM 190114 5.11 XXXXXXXXXXXXXXX TM2D-HP Sigfox ID Application...
-
Page 12: Placement And Installation
e. Placement and installation Install the modem at least 2 m above the ground and not right against the wall — ideally at least 20 cm away. The cables must be no longer than 10 m and must be shielded. For optimal results, we recommend that you place it high up and at least 1 meter away from all metallic objects if possible (see diagrams below). -
Page 13: Operation
Operation The ACW-TM2D-HP measures temperature at time ‘t’ and sends the data by radio on the associated Sigfox or LoRaWAN network, depending on which model you use. Two modes of operation are available: Periodic or Energy Saver. a. Periodic mode (shown as ‘Periodical’ in the configuration tool) To ensure the most complete telemetry possible, temperature readings are sent on a regular and periodic basis. -
Page 14: Energy Saver Mode
b. Energy Saver mode This mode of operation aims to minimize energy consumption and maximize battery life. This mode can be configured to send out frames only under certain conditions: • If temperature readings are stable: a frame is sent out only after a specified period has elapsed (timeout). •... -
Page 15: Acw Configuration Tool
V4.4.0 LoRaWAN: v7.10 or earlier Download and install the configuration tool ‘setupACW.exe’ at: https://www.atim.com/download/7887/ When the ACW Configuration Tool is started, the stand- Click ‘Help’ at the top left of the window, then click by window appears on the screen. -
Page 16: Configuring The Lorawan Network Pairing Mode
b. Configuring the LoRaWAN network pairing mode: Applies only to ACW/LW8-TM2D-HP. On LoRaWAN networks, there are two pairing methods by which a module can connect to the network. OTAA (Over The Air Activation): In this mode, the communication keys are assigned and transmitted over the network every time the module starts up or requests a connection. -
Page 17: Configuring The Energy Saver Mode
c. Configuring the Energy Saver mode Select mode of Lower threshold operation Upper threshold Temperature sampling Offset applied to period each reading and to the displayed value Frequency of transmission to network Difference in °C (vs. last reading sent) If Select keep-alive frame outside range, send frequency... -
Page 18: Configuring Periodic Mode
d. Configuring periodic mode Select mode of operation Lower threshold Upper threshold Temperature sampling + statement period Offset (applied to each reading and to the displayed value) Once the configuration is complete, do not leave the module connected via USB. This mode of operation is very energy intensive. -
Page 19: Uplink Frame Formats
Uplink frame formats a. Sigfox and LoRaWAN The data are different depending on the type of frame sent out. The frames specific to the ACW-TM1D use the following format: Description Frame format oct 0 (dec) oct 0 (hex) oct1 oct2 oct3 oct4 Keep-alive frame... -
Page 20: Startup Sequence
c. Startup sequence At startup, the TM2D-HP transmits 5 frames spaced one minute apart, with a test counter 0x0501, 0x0502, up to 0x0505. 6th frame transmitted is a keep alive frame. The 7th frame is an application frame containing a temperature and the header 0x1A. This contains the temperature, but no information on its relative position toward thresholds. -
Page 21: Downlink
The USB configuration of these products requires an ACW configuration tool of version 4.4.0 or higher. The document ATIM_ACW-DLConfig explains how the downlink works and is available at the below link: https://www.atim.com/download/8182/ The parameters specific to ACW-TM2D-HP models are: a. Keep-alive frame frequency... -
Page 22: Temperature Sampling Period
e. Temperature sampling period Parameter code (Byte 1) Parameter value (Byte 2) Parameter value (Byte 3) 0x0D 0xYY 0xZZ The sampling period will be every 0xZZYY minutes. The minimum value is 10 minutes (0x0A00). The maximum is 23 hr 59 min (0x9F50) Example If 0xZZYY = 0x8200, the product will take a sample every 2 hours and 10 minutes. -
Page 23: Lower Threshold Probe 2
k. Lower threshold probe 2 Parameter code (Byte 1) Parameter value (Byte 2) Parameter value (Byte 3) 0x13 0xYY 0xZZ For a threshold in °C, with a precision in sixteenths of °C, 0xYY and 0xZZ are calculated as follows: ���������� × 10000 0����������... -
Page 24: Connecting The Modem
Connecting the modem GND Probe 2 Data Probe 2 Alim Probe 2 Data Probe 1 Alim Probe 1 GND Probe 1 Number Signals to be wired Description GND S1 Ground for probe 1 Power S1 Power for probe 1 Data S1 Data for probe 1 Power S2 Power for probe 1... -
Page 25: Accessing Data On The Web (Sigfox And Lora Solutions)
Accessing data on the web (Sigfox and LoRa solutions) a. Viewing probes on the ACW platform Connect to the Web platform at http://acw.atim.com to access all your devices and view your data. Your login credentials will be emailed to you when we send out your order. -
Page 26: Registering The Modem On The Sigfox Network
Registering the modem on the Sigfox network If you have signed up with ATIM for a subscription to the Sigfox network, we will take care of registering your modem/probe/sensor on the Sigfox network. However, if you have set up your subscription through Sigfox, you will need to register your device yourself through the Sigfox online portal. - Page 27 Step 1: Open a Web browser and go to https://backend.sigfox.com. Enter the login name and password you selected when you created your Sigfox customer account: Step 2: Click ‘Device’ at the top left: ATIM_ACW-TM2D-HP_UG_EN_V1.2...
- Page 28 Step 4: Enter the required information about the new device that you want to register in your Sigfox account: Sigfox identifier Sigfox PAC code Sigfox certificate number for your product (provided by ATIM) Select the device type under which you want to register the device Confirm the information by clicking ‘OK’...
-
Page 29: Registering The Modem On The Lorawan Network
c. Registering the modem on the LoRaWAN network IMPORTANT By default, ACW / LW8-TM2D network pairing uses OTAA (Over The Air Activation) mode. The choice between ABP (Activation By Personalization) and OTAA is available on the ACW Configurator interface. It is advisable to use the OTAA mode, simpler. -
Page 30: Troubleshooting
• Check whether the power supply is correctly connected to the modem • Configure the modem using the USB configuration tool Technical support For any information or technical problems, you can contact our technical support on this page: https://www.atim.com/en/support-2/technical-support/ ATIM_ACW-TM2D-HP_UG_EN_V1.2...
