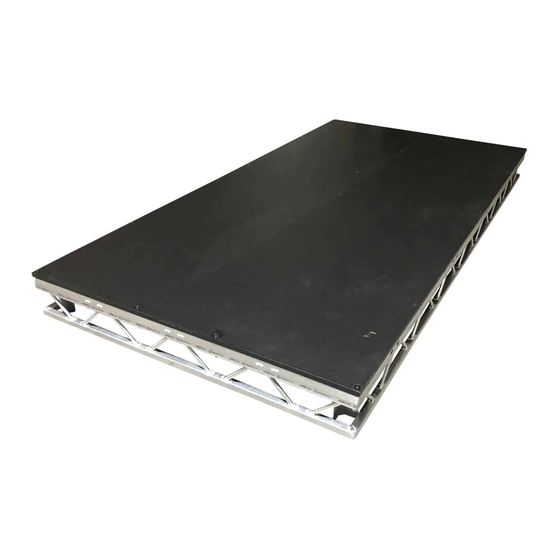

Summary of Contents for Prolyte LiteDeck
- Page 1 LiteDeck User Installation Guidance LiteDeck User installation guidance WWW.PROLYTE.COM...
- Page 2 -LITEDECK TECHNICAL INFORMATION PROLYTE GROUP© 2015 Prolyte has made every effort to ensure the accuracy of this manual; no liability will be accepted for errors. Prolyte reserves the right to change or alter its products or manuals without prior notice. No part of this manual may be reproduced in any form or by any means without prior written permission.
-
Page 3: Tools Needed
13. If any electrical equipment is used on stage, the structure should be earth bonded. SECTION 1 – ASSEMBLING THE FIRST DECK Each LiteDeck should be carried into place (consider size and weight) and placed on the ground, balancing on its longest edge. See Below: (Using 1115mm Leg Frames) - Page 4 – ASSEMBLING THE OTHER DECKS AND FIXING TOGETHER All the other LiteDeck units should be assembled in the same manner as above. Assemble one at a time and attach it to the existing deck, see below: Tighten the Wing Bolts by hand...
- Page 5 LiteDeck User Installation Guidance (1140mm Deck Height) (Bolt is used to join the handrails) At the deck height of 1140mm, only one brace per pair of leg frames is needed, see drawing below: SECTION 3 – FIXING HAND RAILS TO THE SIDE OF...
- Page 6 LiteDeck User Installation Guidance SECTION 4 – ASSEMBLING THE MODULAR STEP UNIT The modular steps are designed to be 190mm high units and in combinations can be used for stages of any height. The illustration used here will show a 6- step unit, which is the correct height for the 1140mm high stage.again,...
- Page 7 LiteDeck User Installation Guidance This picture shows the components used to join the units. From the left – ‘R’ Clips, Conical Spigot and Pins. IMPORTANT: When inserting the conical spigot into the socket, the pigot must face the correct way. The spigot has an indent on one side...
- Page 8 LiteDeck User Installation Guidance Once the step unit is fully constructed, it can be fastened to the existing stage. The support legs should now be fitted to the underside of the step units, The top step uses a hook system as can be seen below: again this uses the same system with the conical spigots.
- Page 9 Assemble the highest part of the ramp first by inserting the correct leg frames in the ends of the LiteDeck and with one person at each end, lift the deck upright. The highest deck should be positioned against the stage but allowing enough room for the relevant infill to be attached.
- Page 10 LiteDeck User Installation Guidance Prolyte Group HQ Leek, Netherlands info@prolyte.com WWW.PROLYTE.COM FACEBOOK.COM/PROLYTEGROUP TWITTER.COM/PROLYTE...
