SkyMate m Series Quick Start Manual

SkyMate, Inc.
100-11890 Sunrise Valley Drive
Reston, VA 20191, USA
Self-installation Disclaimer
This product is designed to be DIY installable. It is your responsibility to determine if you have the knowledge, skills and
physical ability required to properly perform an m1600 installation. SkyMate shall have no liability for damage or injury
resulting from the installation or use of any SkyMate products.
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be
required to take adequate measures.
Wi-Fi is a register trademark of the Wi-Fi Alliance.
©2017 SkyMate, Inc. All rights reserved.
Toll-free: 1-866-SkyMate
Phone: 1-703-961-5800
Email: support@skymate.com
www.skymate.com
What's in the m1600 box?
+

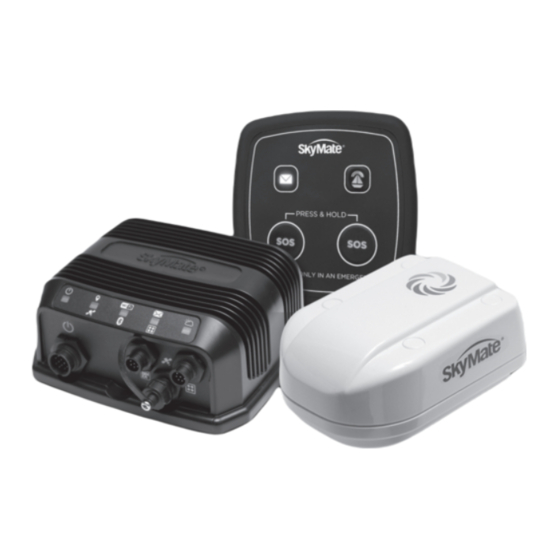

Base Unit (ISI-1600) Power Cable (2m)
1
Smart Antenna (IGT-2100) with 10m cable
2
Keypad (KPD-110) with Keypad Cable (2m)
3
Quick Start
1. Activate your mseries using
https://www.skymate.com/activation
2. Install the Base Unit
(do not connect power until Step 4).
3. Install the Keypad.
4. Install the Smart Antenna with an
unobstructed view of the sky.
5. Connect the Base Unit to power (within
minutes all indicators should be green).
6. Wi-Fi connect your UI device to
the Base Unit.
7. Login with a browser at mseries.online
Keypad
Power Smart Antenna
+
Install Kit #1
+ Install Kit #2
+
Install Kit #3
