Summary of Contents for Mira Activate 2.1903.098
Page 1

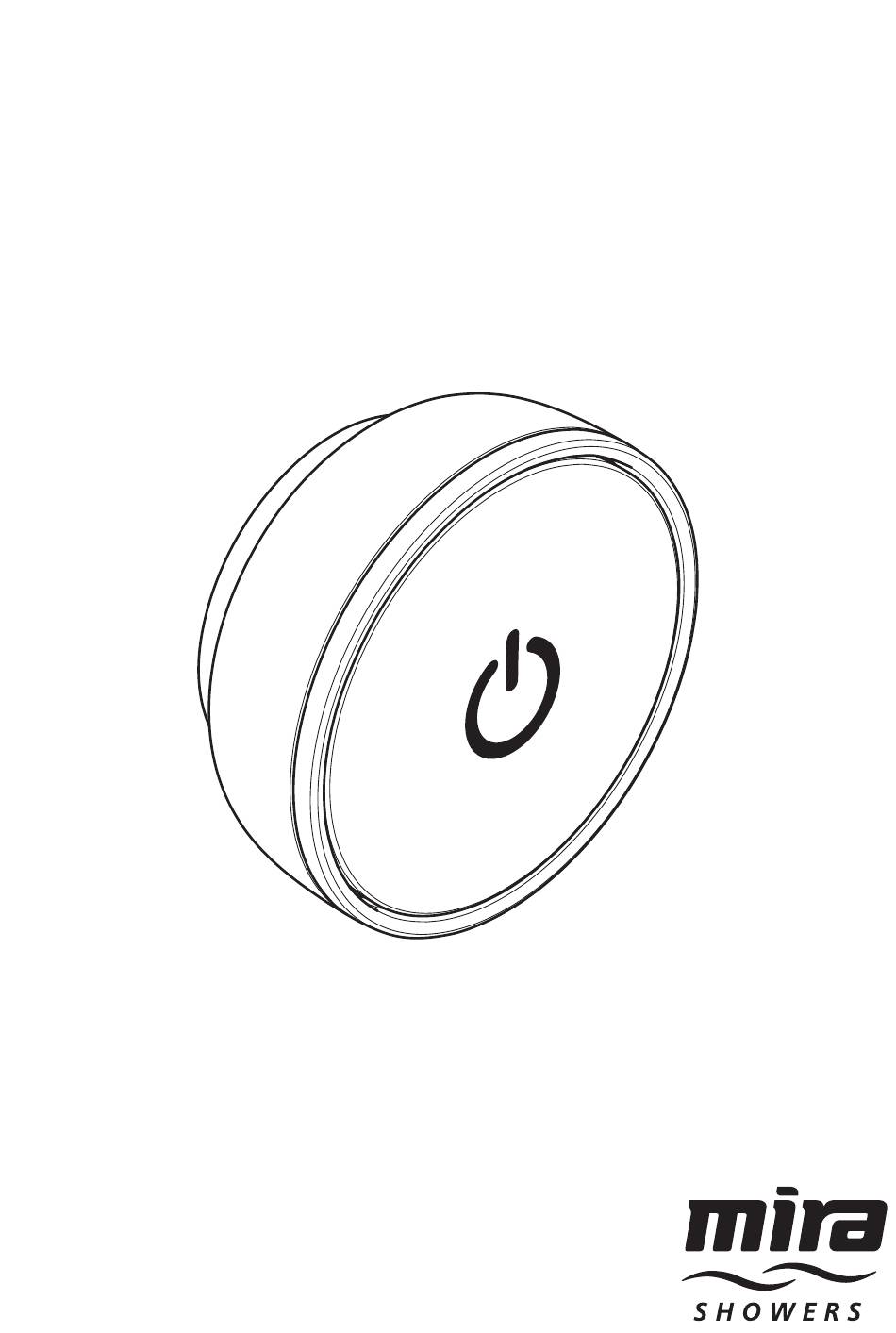

Mira Activate Remote Controller Accessory Installation and User Guide Please leave these instructions with the user...
Page 2
Important Safety Information Products manufactured by Kohler Mira Ltd. are designed to be safe, provided that they are installed, used and maintained in good working order, in accordance with our instructions and recommendations. Follow all warnings, cautions and instructions contained in this guide, and on, or inside the product.
Page 3
Controller accessory is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.mirashowers. co.uk The Mira Activate operates in the 2.4 GHz frequency band at a maximum radio frequency power of 0 dBm. Product Function Pressing the Activate Remote Controller accessory will turn on the shower at the default pre-set of the valve.
Page 4

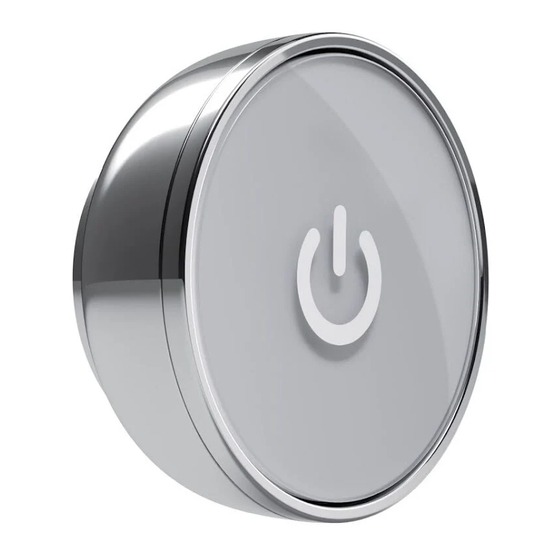

Products Covered Product Name Product No. Mira Activate Remote Assembly 2.1903.098 Pack Contents 1 x Wall Plate q 1 x Cap q 1 x Remote Assembly q 1 x CR2032 3V 1 x Wall Plug q Lithium Battery q 1 x Screw q...
Page 5
Pair the Remote: Remote Cover Cover Battery Rotate the cover anti-clockwise to Insert the battery and refit the cover remove from the remote assembly. into remote assembly. Note: The positive symbol on the battery MUST be facing outside. Power Indication Within 30 seconds of powering ON the valve, press and hold the remote button for 6 seconds –...
Page 6
Installation Note: The remote operates wirelessly. Its range is impacted by walls, ceiling and different building materials. Test that the remote button operates at the desired location before installing. Once the desired location has been tested, mark the centre position and draw a vertical line using a spirit level to assist in the alignment of the remote button.
Page 7
Wall Plate Remote Locate the remote assembly on to the wall plate and twist until the symbol is aligned to the vertical line on the wall. Clean off the vertical line once the on/off remote is correctly installed. If required, the ON/OFF remote button can be removed from the backplate by rotating anticlockwise.
Page 8
This product has been designed for domestic use only, it is not recommended for Commercial or Healthcare use. For Domestic installations, Kohler Mira guarantee this product against any defect in materials or workmanship for a period of one year from the date of purchase. Within the guarantee period we will resolve defects in materials or workmanship, free of charge, by repairing or replacing parts or product as we may choose.
