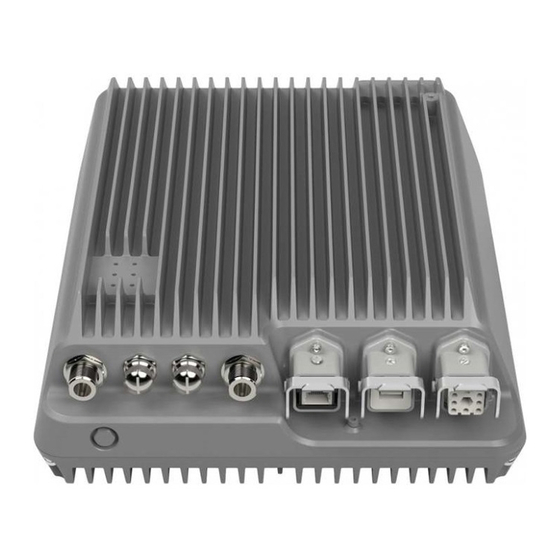

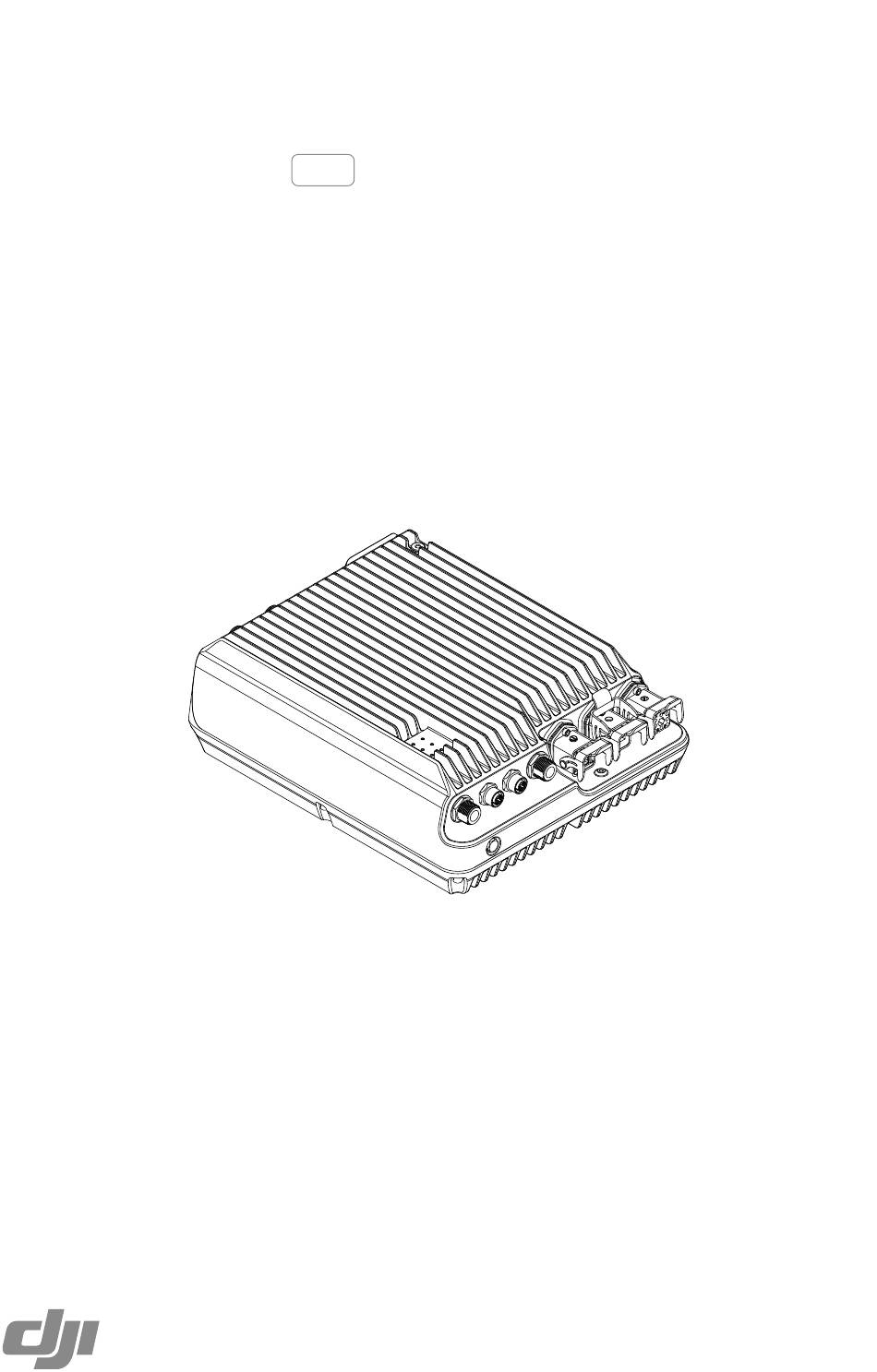

  • Page 1 Aeroscope AS-F1800 User Manual V2.0 2020.10...

  • Page 3: Table Of Contents

    Contents Disclaimer and Warning Product Profile Introduction In the Box Overview Indicators Function Descriptions Basic Functions Features Operation and Maintenance Installation Lightning Protection Step-by-Step Installation Guide Importing Certificates Power Cable Usage Specifications Compliance Information © 2018 DJI All Rights Reserved.

  • Page 4: Disclaimer And Warning

    AeroScope, which is solely your responsibility; and (b) DJI shall not be liable for the authenticity of you; and (c) DJI will not be liable for any loss or damage you may cause; and (d) you will defend, indemnify, and hold harmless DJI, its...

  • Page 5: In The Box

    8. GND Connector ANT0 ANT1 Connected to the metal bracket of the mounting device. The antenna ports (ANT0, ANT1, ANT2, ANT3) may be used during spectrum analysis. Make sure to select the right one. © 2018 DJI All Rights Reserved.

  • Page 6: Indicators

    Disconnected from the monitor. Changed the solid green indicator and added five status when the firmware is updated to v03.00.00.23 or later. Indicator Description Connected normally and communicating with the monitor via Solid green Ethernet. © 2018 DJI All Rights Reserved.
  • Page 7 Functioning abnormally. LED5: Type 2 receiver status indicator Indicator Description Solid green Functioning normally. Solid red Functioning abnormally. LED6: Type 1 receiver status indicator Indicator Description Solid green Functioning normally. Solid red Functioning abnormally. © 2018 DJI All Rights Reserved.

  • Page 8: Function Descriptions

    The signal reception range is about twice as much as the omnidirectional antenna when using the low-gain directional antenna (8dBi) and about four times when using the high-gain directional antenna (16dBi). Easy installation Aeroscope can be installed and configured within half an hour. © 2018 DJI All Rights Reserved.

  • Page 9: Operation And Maintenance

    Data record management: Review data history within a particular length of time with authorization. Local (Assistant) Similar to online mode. But it can be used on one device. © 2018 DJI All Rights Reserved.

  • Page 10: Installation

    1. The pole should be firmly fixed to the ground (or other solid surface such as a rooftop). The diameter of the pole plus the insulation layer should be 120 mm to utilize the frames supplied with the stationary unit and antennas. © 2018 DJI All Rights Reserved.
  • Page 11 This ensures diversity gains will be realized. Below figure shows the connection configuration between the G8 antennas and the stationary unit. © 2018 DJI All Rights Reserved.
  • Page 12 8. Connect the computer and the Aeroscope unit to the same router, or connect them directly via the Ethernet port. 9. After the Aeroscope stationary unit is found on the DJI Assistant 2 start page, set the server IP and Port in Network Settings>Server Network Settings.

  • Page 13: Importing Certificates

    The account management system in Aeroscope manages the relations between each account and each Aeroscope unit. Make sure the DJI admin has added your unit to your account. Otherwise, you will not see your unit when you log in.
  • Page 14 Ground wire Ground wire Live wire Neutral wire Live wire Neutral wire Live wire Neutral wire Ground wire Ground wire Live wire Neutral wire Ground wire Live wire Neutral wire Live wire Neutral wire © 2018 DJI All Rights Reserved.
  • Page 15 Connect the cable wires to the DC negative and DC positive poles on the female plug bracket to use the cable as a DC power cable. DC negative pole DC positive pole © 2018 DJI All Rights Reserved.
  • Page 16 2. After securing the female plug bracket in place, make sure to tighten the nut. The internal rubber on the nut should form a tight seal to ensure that the cable and plug are waterproof. © 2018 DJI All Rights Reserved.

  • Page 17: Specifications

    310 mm × 260 mm × 100 mm Weight 6.8 kg Phantom 3 series Phantom 4 series Inspire series Support Aircraft Mavic series Spark MG-1P/T16/T20 Matrice series Test temperature is the room temperature of 25 ° C. © 2018 DJI All Rights Reserved.

  • Page 18: Compliance Information

    Indirizzo di contatto UE: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Germany Déclaration de conformité UE: Par la présente, SZ DJI TECHNOLOGY CO., LTD déclare que cet appareil est conforme aux principales exigences et autres clauses pertinentes de la directive européenne 2014/53/EU.
  • Page 19 This content is subject to change. Download the latest version from https://www.dji.com/aeroscope If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. Copyright © 2018 DJI All Rights Reserved. Printed in China. YC.BZ.SS000200.07...
