- Page 1 COMPRESSOR SB4/C-100.LB75 SB4/F-270.LB75 SB4/F-500.LB75 SB4/F-270.LB75V MANUAL ISO 9001:2008...
- Page 3 1.1. The present manual is a document, containing the specification of the compressors (hereinafter referred as compressor) SB4/C-100.LB75, SB4/F-270.LB75, SB4/F- 500.LB75, SB4/F-270.LB75V (air compressors, piston-type compressors), as well as the maintenance guidelines and technical characteristics, the adequacy of which is ensured by the manufacturer.
- Page 4 Table 1 Parameter’s value Name of the parameter SB4/C- SB4/F- SB4/F- SB4/F- 100.LB75 270.LB75 500.LB75 270.LB75V Number of compressor stages Number of the compressor’s cyl- inders Capacity (in-draft), l/min, (m 880 (52,8) Maximum compressed air pres- 1,0 (10) sure, MPa, (kg/sm Nominal capacity, kW Supply voltage, V.
- Page 5 Wheels and shock absorbers Shipping container Notes: Complete set of wheels and shock absorbers for the compressor SB4/C-100.LB75 (pos. 15, see pic. 1), complete set of shock absorbers for compressor SB4/F-270.LB75, SB4/F-500.LB75, SB4/F- 270.LB75V (pos. 15, see pic. 2, 3, 4), as well as the details for their fastening are packed separately.

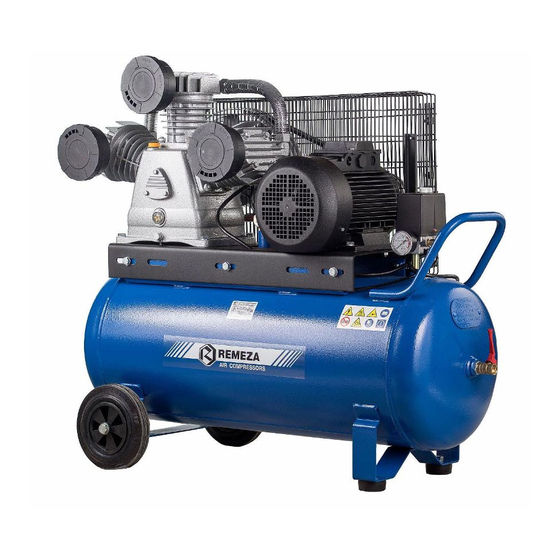

- Page 6 General view of the compressor SB4/C-100.LB75 L B 7 5 Рiс. 1 General view of the compressor SB4/F-270.LB75 L B 7 5 Рic. 2 General view of the compressor SB4/F-500.LB75...
- Page 7 L B 7 5 General view of the compressor SB4/F-270.LB75В L B 7 5 Pic. 4 Principal electric circuit Hz 400...
- Page 8 3 ~ 5 0 Ã ö , 3 8 0 Â ~ 5 0 H z , 2 Ð Å À Â Ñ À < Ð Â Ð Ñ À , Â , Ñ - ï ð î â î ä à ï î ä ê ë þ ÷ å í è ÿ A, B, C –...
- Page 9 6.11. Compressed air is a flow of energy, and for this reason it is associated with a po- tential danger. Pipelines, containing the compressed air, should be in working condition and plugged correspondingly. Before increasing pressure in the flexible lines, one should make sure, that their rags are well fixed.
- Page 10 - To bring in any changes to electrical or pneumatic circuits of the compressor or their settings. In particular to change the value of the maximal pressure of compressed air and settings of the safety valve; -To turn on the compressor with removed protection of wedge-belt transmission; -While operating the compressor to touch heated details (head and block of cylin- ders, heat pump, details of the force air-pump, electric motor’s cooling fans);...
- Page 11 It is necessary to underline, that even the rotation of the engine in the opposite direction during very short period of time can cause severe damages. 7.8. Reliably connect the compressor to the consumers of compressed air, using the appropriate pneumoapparatus and pipelines. 7.9.
- Page 12 8. Maintenance servicing For durable and reliable work of the compressor carry out the following operations on its maintenance servicing: - After the first 50 working hours check up and if necessary tighten the bolts of cylin- ders’ heads of the compressor’s unit for indemnification of the temperature shrinkage, the moment of tightening - 25 Nm;...
- Page 13 9. Possible malfunctions and the ways of their elimination The list of possible malfunctions and the ways of their elimination are given in table 5. Table 5 Name of faultiness Possible reason Method of elimination Compressor’s productivity Distortion of the junctions’ Spot the leak, squeeze the slowdown density or air channels...
- Page 14 10. Manufacturer’s Warranty 10.1. The manufacturer guarantees conformity of the compressor with the parameters specified in the present passport, under the condition of observance by the consumer of the service, storage and transportation regulations. 10.2. Warranty period of operation is 12 months from the date of sale of the compressor with a mark in the passport, but no more than 18 months from the date of manufacture.
- Page 15 12 Acceptance and packaging certificate The compressor unit is completed with a receiver ___________________ l. Serial № ________________, electric motor ___________________ Serial № ___________________________, upon shipment the compressor is filled at the enterprise-manufacturer with the oil of the fol- lowing mark: _________________________________________________________________, the compressor unit found ready for service.
-
Page 17: Warranty Certificate
Warranty Certificate This certificate is the commitment to carry out guarantee repair of the compressor The certificate entitles to free-of-charge repair and replacement of details and units failed due to the fault of the manufacturer during the warranty period. Dear buyer! Make sure, that all sections of the guarantee coupon are filled in plain and without corrections. - Page 18 For warranty repair the following documents should be submitted: 1. Warranty coupon. 2. Documents, confirming the fact of purchase. 3. Passport of the product. At absence of one of the specified documents manufacturer can refuse to carry out guar- antee repair. The warranty service is denied in the following cases: 1.
