Ravel RE317 Series Installation Wiring Diagram

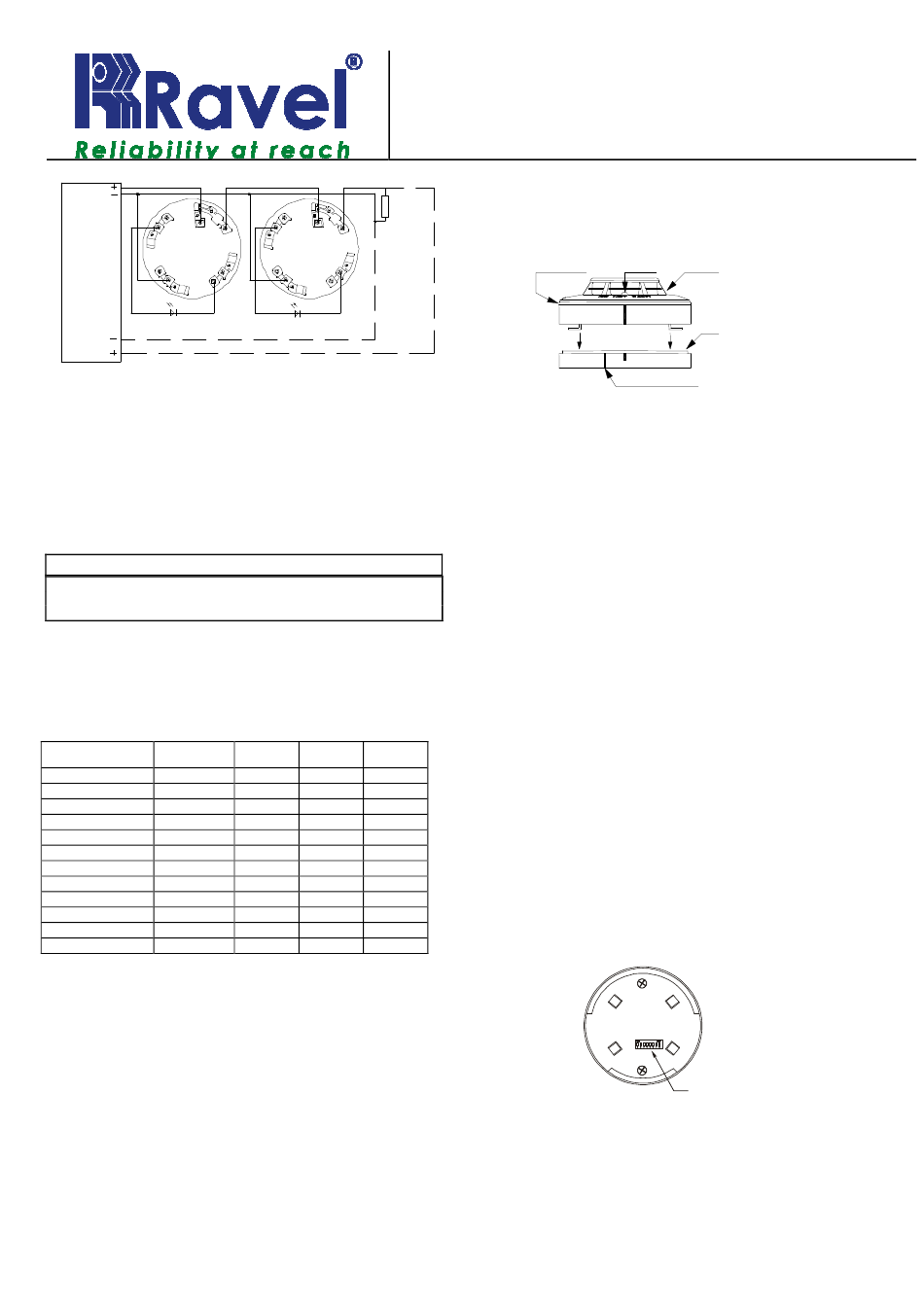

TYPICAL WIRING DIAGRAM

L O O P
2
6
C O M P A T I B L E
C O N T R O L
4
5
P A N E L
O P T I O N A L R E M O T E L E D
O P T I O N A L R E T U R N W I R I N G
R E 3 1 6 2 W I R E D E T E C T O R S W I R I N G D I A G R A M
Note: Don't install terminal 4 and 6 for the models without remote LED
output.
THE RE317 SERIES REQUIRE COMPATIBLE ADDRESSABLE COMMUNICATIONS TO
FUNCTION PROPERLY MOREOVER.
THE INSTALLATION MUST BE IN COMPLIANCE WITH THE CONTROL
PANEL SYSTEM INSTALLATION MANUAL.
Panel Compatibility: AVANI by Ravel.
WARNING
TO PREVENT DETECTOR CONTAMINATION
WARRANTY CANCELLATION, THE SMOKE DETECTOR MUST REMAIN
COVERED UNTIL THE AREA IS CLEAN AND DUST FREE.
GENERAL DESCRITPTION

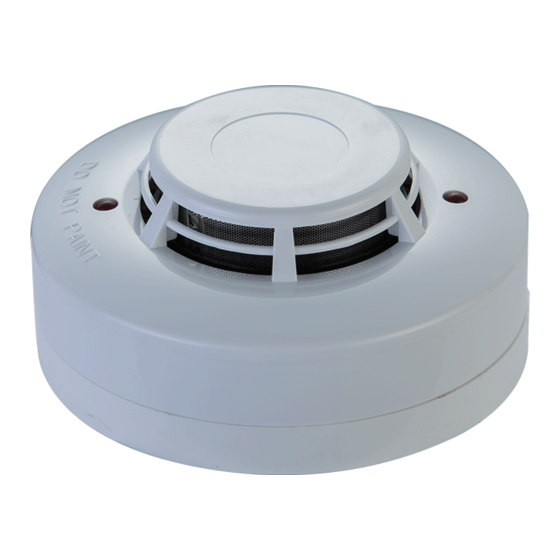

RE317 series are the photo electronic smoke detectors and/or ROR & Fixed
temperature detectors combined with advanced addressable-analog
communications. The DIP switches are provided for setting the detector's
address that is RE317D series; To models without dip-switch, the detector is
addressed by RE317A programmer. Please refer to RE317A PROGRAMMER
.
USE'S MANUAL
Model Dip-switch
RE317D-SHL √
RE317D-SL √
RE317D-HL √
RE317D-SH √
RE317D-S
√
RE317D-H
√
RE317A-SHL
RE317A-SL
RE317A-HL
RE317A-SH
RE317A-S
RE317A-H
Note: 1 、 T he base model No. for RE317D(A)-S, RE317D(A)-SH and RE317D(A)-H
is P/N RE-312.
The base model No. for RE317D(A)-SL, RE317D(A)-SHL and
RE317D(A)-HL is P/N RE-314

INSTALLING THE BASE

1. To insure proper installation of the detector head to the base, all the wires
should be properly addressed at installation:
(A) Position all the wires flat against terminals.
(B) Fasten the wires away from connector terminals.
2. The detectors are intended for mounting on a ceiling or a wall at open area
must be in accordance with the fire standard in your country
3. The base of the smoke detector can be mounted directly onto an electrical
junction box such as an octagonal (75mm, 90mm or 100mm), a round (75mm),
or a square (100mm) box without using any type of mechanical adapter.

INSTALLING THE HEAD

1. Set the desired address via DIP switch on the back of the detector, see
ADDRESS SETTING section. R E317A Series have no window on the back of
（
the detector
）
2. Align the components as shown in Figure 2.
RE317 SERIES,
Addressable Photoelectric Smoke And/or ROR & Fixed
Temperature Heat Detector
Installation Wiring Diagram
E O L
2
6
R E S I S T O R
4
5
O P T I O N A L R E M O T E L E D
AND SUBSEQUENT
Smoke Heat Remote
sense sense LED
√ √ √
√ √
√ √
√ √
√
√
√ √ √
√ √
√ √
√ √
√
√
.
.
3. Mate the detector head onto the base and twist clockwise to secure it.
4. After all detectors have been installed, apply power to the control unit and
activate the communication line.
5. Test the detector(s) as described in the TESTING section of this manual.
Note: Do not install the detector head until the area is thoroughly cleaned
of construction debris, dusts, etc. Please refer to control panel technical
information to decide the maximum number of detector installed in the
same loop.
RECTANGULAR LED
LED ALIGNMENT MARK
Fig. 2 Mating detector head onto base.

TESTING

All the alarm signal services, releasing device and extinguisher system should
be disengaged during the test period and must be re-engaged immediately at
.
the conclusion of testing

SMOKE SENSOR TESTING

Allow smoke from a cotton wick or a test smoke aerosol to enter the detector-sensing
chamber for at least 10 seconds. When sufficient smoke has entered the chamber, the
detector will signal an alarm, this being visible by a continuous illumination of the red
LED. Make sure to drive smoke out of the chamber before reset LED in order to keep
the detector a current sensitivity. If the alarm fails in this step, it indicates a defective unit,
which require to be returned to the distributor for servicing.

HEAT SENSOR TESTING

The detector to be tested should be subject to a flow of warm air at a temperature of between
65° C and 80° C. (This requirement can be met by some domestic hair dryers).
Proceed as follows:
1. Switch on the warm airflow and check that temperature is correct and stable.
2. From a distance of several inches, direct the airflow at the guard protecting
the thermistor. The detector should alarm within 30 seconds.
3. Upon alarm immediately remove the heat source and check that the red LED
of the detector is illuminated.
4. If detector fails to go into alarm mode within 30 seconds it is too insensitive
and needs to be returned to the distributor for servicing.
NOTE: After testing, check that the system is set for normal operation and
notify the appropriate authorities that the testing operation is complete and
the system is active again.
Smoke detectors are not to be used with detector guards
unless the combination has been evaluated and found
suitable for that purpose.

MAINTENANCE

The recommended minimum requirement for detector maintenance consists of
an annual cleaning of dust from the detector head by using a vacuum cleaner
cleaning program should be agreed to the individual environment in
conformance with the fire standard in your country.
CAUTION: DO NOT ATTEMPT TO DISASSEMBLY OF THE FACTORY
SEALED SMOKE DETECTOR. THIS ASSEMBLY IS SEALED FOR YOUR
PROTECTION AND IS NOT INTENDED TO BE OPENED FOR SERVICING BY
USERS. OPENING THE DETECTOR HEAD WILL VOID THE WARRANTY.
.

ADDRESS SETTING

1.Please refer to fig.3 to via DIP SWITCH to set detector address.
Fig.3: the
2. The definition of address is depicted as follows.
DETECTOR HEAD
BRACKET
Dip switch
location of dip switch
