Thingamagoop 3000 user guide

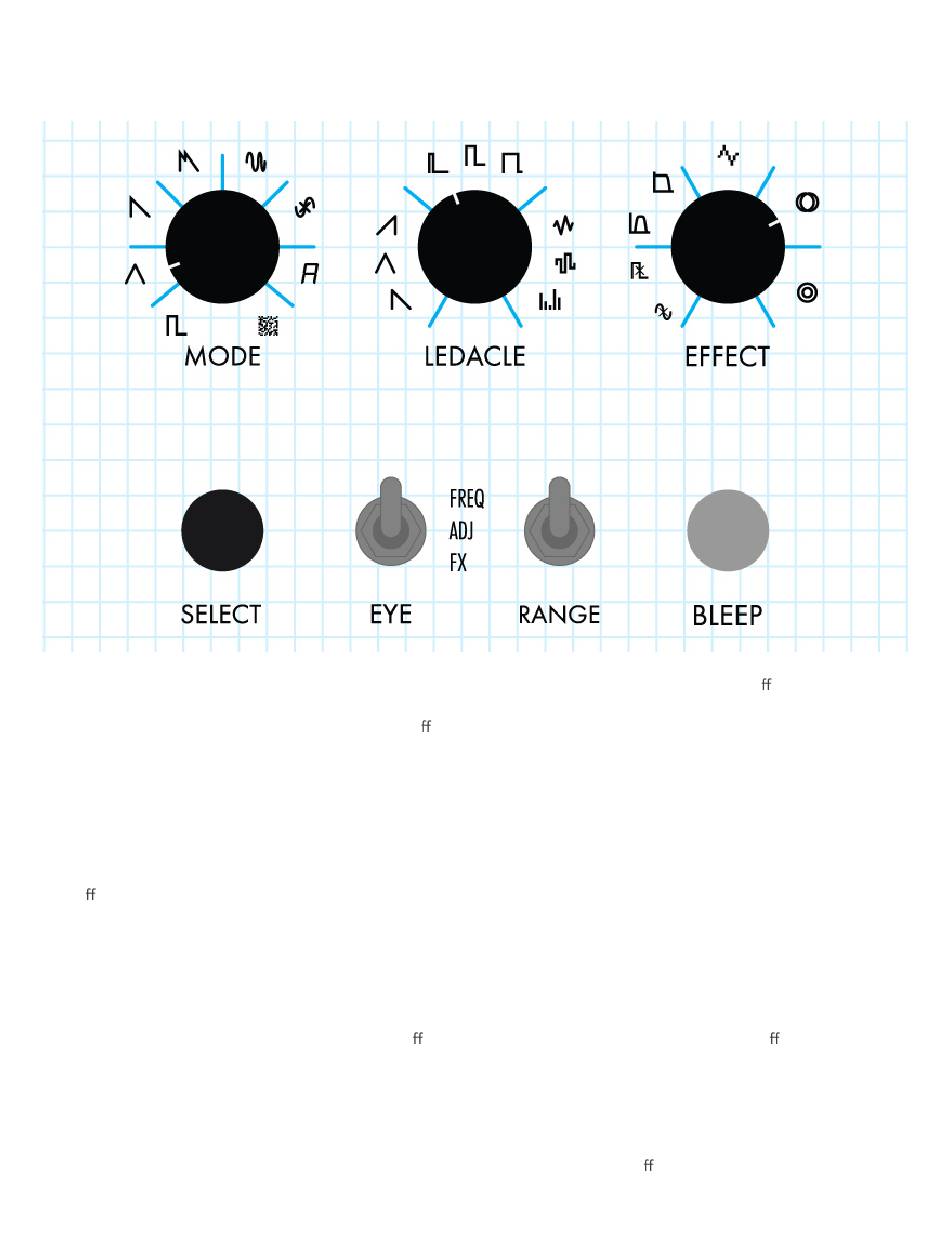

Controls
The T3k uses three knobs and a SELECT button to allow you to easily select and adjust many di erent parameters.
To select a mode, either voice, input, LEDacle or e ect, hold down the SELECT button and turn the knob to the
desired location.
The mode will not change unless you turn the knob a little. Not all the modes are changed when SELECT is held
down, just the one you are turning. This means you might have to turn the knob away and back to a desired location
if you're already on top of it.
The BLEEP button activates the sound. The button is in toggle mode by default. Push it to turn on, push it again to
turn o the noise.
This can be changed to momentary triggering by holding down SELECT and pushing BLEEP.
The EYE switch changes what the photocell eyeball is controlling.
FREQ – The eye is controlling the frequency of the sound. This is the standard way to use the T3k
ADJ – The eye is controlling the adjustment of the voice mode. The frequency is controlled by the mode knob.
FX- The eye is controlling the adjustment of the e ect mode. The frequency is controlled by the e ect knob.
The RANGE switch changes the range of the photocell eye.
The OPTION button on top allows you change the input and output modes. More on that here.
The VOLUME POT on the top left controls the volume and switches the device o when turned all the way to the
left.
Advertisement
Table of Contents
Related Manuals for Bleeplabs Thingamagoop 3000
Summary of Contents for Bleeplabs Thingamagoop 3000
- Page 1 Thingamagoop 3000 user guide Controls The T3k uses three knobs and a SELECT button to allow you to easily select and adjust many di erent parameters. To select a mode, either voice, input, LEDacle or e ect, hold down the SELECT button and turn the knob to the desired location.
- Page 2 Voice Modes The T3k has 8 voice modes. They are all band-limited unless otherwise noted. The modes are selected by holding down the SELECT button and turning the left MODE knob. When the SELECT button is released that mode is now selected and the left knob adjusts it. Square waves.
- Page 3 LEDacle Modes There are three adjustable LEDacle modes. Unlike the voice mode and e ect selection the LEDacle modes are adjusted while you are holding down select. This allows you to alter the shape of the mode. When select is not down the LEDacle knob controls the rate of the light. Triangular mode –...
- Page 4 MIDI MIDI signals can be sent and received by the Thingamagoop using the MIDI i/o jacks and dongle or over USB. Input implementation Channel is default to omni. Select it but using option mode. Notes – Accurately trigger pitches in the selected voice when the BLEEP button is o . When it is on, the eye modulates the pitch.
- Page 5 By default the CV in modulates MODE adjust and CV out is photocell level. CV in and out modes are selected with Option Mode The input accepts -5V to +5V signals. The CV output is from 0-5V. Both in and out are DC coupled. There is also a CV trigger input on the right channel of the CV in jack.
- Page 6 Option mode To change the MIDI input and output channels as well as CV modes hold down the small button on top of the device for 2 seconds. The LEDacle will then blink dimly and the three knobs will allow you select variables as shown.
