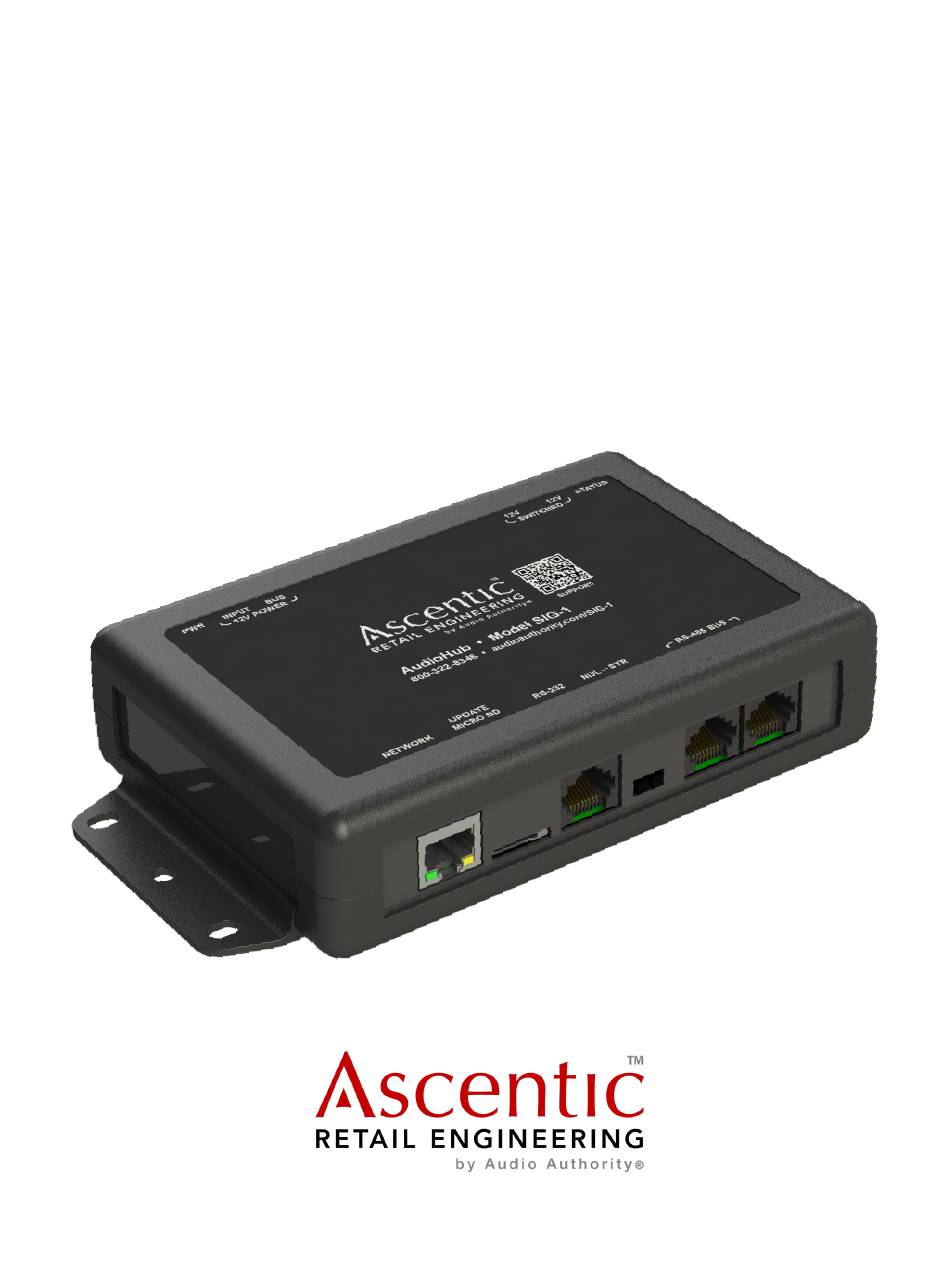

- Page 1 User Manual SIG-1 Communication Bridge Serial to Internet Gateway...
- Page 2 Introduction The SIG-1 Communication Bridge connects an RS-232 to an RS-858 port to facilitate communication between the RS-485 and your network devices. This device can be controlled and monitored remotely via Telnet. The SIG-1 mounts directly to a flat surface using the mounted flanges. Features •...
- Page 3 Configuration Methods Configuration Mode The SIG-1 features a configuration mode, which allows the device to be configured over an RS-232 port. In Configuration Mode, the following list of commands are accepted: See page 2 Commands: Name Description Format Response Enter Configuration Enables Config Mode Exit Configuration Returns to command [DEV=254;EXIT]...
- Page 4 Communication The SIG-1 Communication Bridge has the default device ID 254. It can send and receive serial commands via RS-485 at 57600 Baud, 8-N-1, and Half-Duplex; and via RS-232 at 115200 Baud, 8-N-1, and Full-Duplex. Either port may be set for Null or Straight using the switch located between the RS-232 port and the RS-485 bus. Both configuration ports utilize a modular RJ-45 jack with the following pinouts: RS-485 Pinout: RS-232 Pinout:...
- Page 5 Example System: SIG-1 Bridge Between RS-232 and Network with Audio This Display uses audio to attract and communicate. It leverages the MH6 MediaHub’s multiple audio output options to demonstrate a variety of products. Each of the four audio output jacks can play either digital or analog audio, depending on the requirements of the device.
- Page 6 2x 0.165” (4.5mm) Diameter centerline holes 4x 0.165” x 0.28” (4.5mm x 7mm) Slots 1.0” (25.4mm) Above/Below centerline holes Ascentic is a trademark of Audio Authority Corp. 2048 Mercer Road, Lexington, Kentucky 40511-1071 800-322-8346 • 859-233-4599 • Fax: 859-233-4510 E-215 www.audioauthority.com •...
