Thank you for purchasing the Novopro CDJ WS1 WORKSTATION

This user manual will help you to assemble this product safely & quickly, so please

spend a few minutes to read through this assembly information.

NOTE: WE HIGHLY RECOMMEND THAT TWO PEOPLE ARE AVAILABLE FOR STEP 4 OF

THE ASSEMBLY STAGE.

Due to continuous product developments, please check for the latest updated

version of this product manual at: www.novopro.co.uk

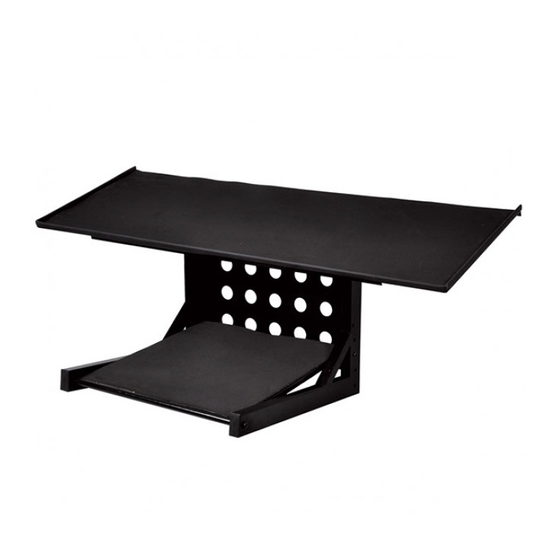

Novopro CDJ WS1 WORKSTATION

The contents of the WS1 are:

Top plate

Middle back panel

Right L-shape leg

Left L-shape leg

Mixer shelf

Steel half circle

Foam pad

Rubber edging

Cable clamp

M8*40 bolt

Washer

Nut

M6*10 bolt

M6*40 bolt

M4 allen key

M5 allen key

Wrench

Small cover

Big cover

Non-slip rubber feet

Round tube

Need help?

Do you have a question about the CDJ WS1 and is the answer not in the manual?

Page 1 Thank you for purchasing the Novopro CDJ WS1 WORKSTATION The contents of the WS1 are: Top plate Middle back panel Right L-shape leg This user manual will help you to assemble this product safely & quickly, so please spend a few minutes to read through this assembly information.
Page 2 Step 1 Step 2 Mount the mixer shelf between the two L-shape legs after you have selected the desired mixer angle from the 5 mounting positions and insert the bolts and washers as shown above. Position the two L-shape legs and insert the 6 x bolts through the PLEASE LEAVE THE VERY BOLTS LOOSE AT THIS STAGE –...
Page 3 Step 3 Step 4 NOTE: THIS STEP WILL REQUIRE TWO PEOPLE IN ORDER TO HOLD AND ASSEMBLE THE WS1. DO NOT ATTEMPT THIS STAGE WITHOUT ASSIST- Now position and bolt in the two steel circular plates to the top plate; ANCE.
Page 4 A cable clamp is included to position where required. You may need to lay the edging in place first and bend the corners Your Novopro WS1 is now ready to use and we hope you enjoy the to assist the fixing around the corners.
