Ultra Heat GMV VRF Technical Service Manual_Heat Recovery Serial
GMV-VQ192WM/A-F(U)
Note: MCA: Minimum Circuit Ampacity; MOP: Maximum Overcurrent Protection.
 Power cable wire gauge and circuit breaker must be selected based on the above parameters and in
compliance with local safety requirements. If there is conflict between above parameters and national
requirements, please contact the manufacture promptly.
 If power cable wire gauge and circuit breaker is out of the above design range, fire hazard may occur.

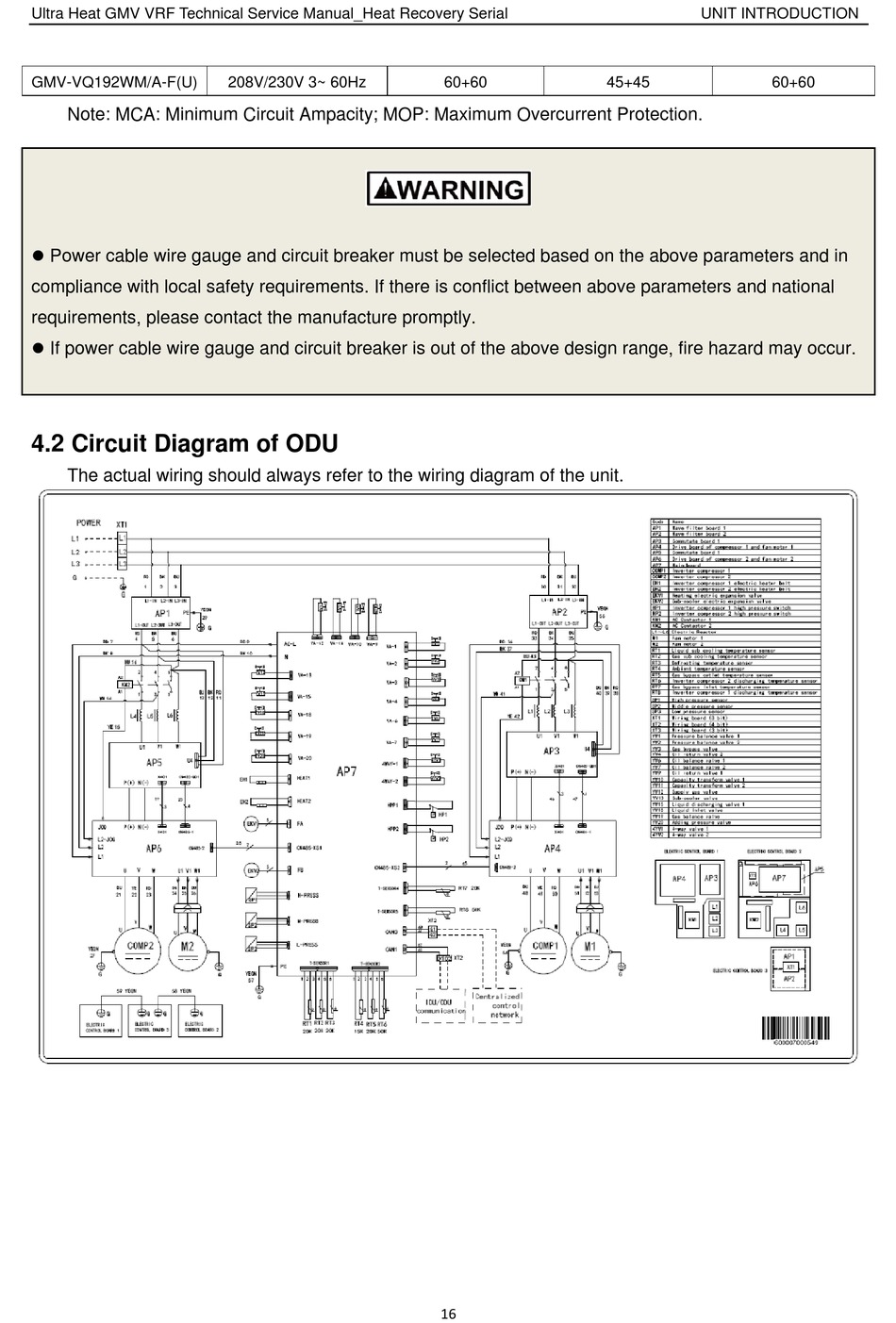

4.2 Circuit Diagram of ODU
The actual wiring should always refer to the wiring diagram of the unit.
208V/230V 3~ 60Hz 60+60 45+45
16
UNIT INTRODUCTION
60+60
